Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
958*243, 958*243
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RFL15
-
Pixel Pitch:
-
Other, Other
-
Brightness:
-
500-2,500 nits, 500-2,500 nits, 800-8000nit
-
pixel density:
-
4356, 4356
-
Lifespan (hours):
-
100000, 100000
-
IP Rating:
-
IP20, IP20
-
HS Code:
-
8528591090
-
Resolution:
-
64*16
-
View Angle（H/V）:
-
160°/160°, 160°/160°
-
Protection Level:
-
IP20/Rear
-
Data refresh rate:
-
1920--3840HZ
-
Service access:
-
back
-
Cabinet weight:
-
30KG /cabinet
-
Warranty:
-
3 Years
-
Certificate:
-
CE/ROHS
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Ruiled
-
Color:
-
FULL COLOR
-
Panel Size:
-
958*243, 958*243
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RFL15
-
Pixel Pitch:
-
Other, Other
-
Brightness:
-
500-2,500 nits, 500-2,500 nits, 800-8000nit
-
pixel density:
-
4356, 4356
-
Lifespan (hours):
-
100000, 100000
-
IP Rating:
-
IP20, IP20
-
HS Code:
-
8528591090
-
Resolution:
-
64*16
-
View Angle（H/V）:
-
160°/160°, 160°/160°
-
Protection Level:
-
IP20/Rear
-
Data refresh rate:
-
1920--3840HZ
-
Service access:
-
back
-
Cabinet weight:
-
30KG /cabinet
-
Warranty:
-
3 Years
-
Certificate:
-
CE/ROHS
Product Description
Feature
1
.High see through-transmittance: 75%-90%, light see through-transmittance, does not block sight and lighting.
2. Light weight: ≤6kg/m2, easy to transport and install, no influence on the load- bearing of the curtain wall.
3.High flexibility: can be cut and curled,a variety of installation methods.
4.Breakpoint resume: single light failure does not affect the screen to continue to work.
5.High contrast, rich colors, more realistic animation display effect, high and low brightness can be converted.
6. Module shipment, and the installation is convenient and concise.
Application
APPLICATION
Widely installed in hotels,exhibition display,wedding venue,outdoor stage,concert,launch,event,etc
Specification
|
Product model
|

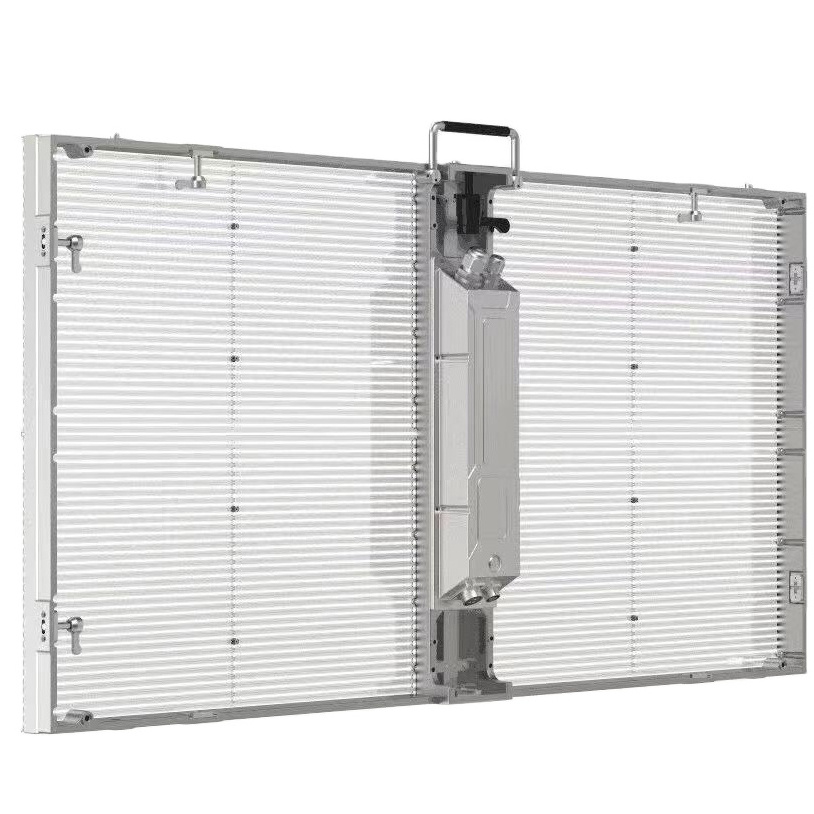

RFL 15 full color transparent
|
|
|
|
|
|
|||||
|
Type
|
Item name
|
Technical parameters and indicators
|
|
|
|
|
|||||
|
LED tube
|
Lamp bead Characteristics
|
RFL 15
|
|
|
|
|
|||||
|
|
Pixel configuration
|
1R1G1B
|
|
Pixel pitch
|
T2222M
|
|
|||||
|
|
Primary Colors
|
Test condition
|
Voltage
|
Wavelength range
|
Brightness Range
|
Remarks
|
|||||
|
|
Red light(ref)
|
10mA
|
2.0-2.6V
|
618-623nm
|
300-600mcd
|
The wavelength and brightness of the tube core are typiacl values
|
|||||
|
|
Green light(ref)
|
10mA
|
2.8-3.4V
|
520-525nm
|
450-900mcd
|
|
|||||
|
|
Blue light(ref)
|
10mA
|
2.8-3.4V
|
468-473nm
|
100-180mcd
|
|
|||||
|
LED module
|
Model size
|
960×240×3mm
|
|
|
||
|
|
Cabinet Pixel Resolution
|
64×16=1024
|
|
|
||
|
|
Pixel pitch
|
15mm×15mm
|
|
|
||
|
|
Pixel Density
|
4356dots/㎡
|
|
|
||
|
|
Module current
|
20A
|
|
|
||
|
|
Input voltage
|
4.8V-5.2V
|
|
|
||
|
|
Module power consumption
|
100W
|
|
|
||
|
|
Module weight
|
2.2KG
|
|
|
||
|
Cabinet parameters
|
Cabinet Resolution
|
64pixel×16pixel
|
|
|
||
|
|
Module dimension
|
1×1
|
|
|
||
|
|
Dimension
|
960mmm×240mm×3mm
|
|
|
||
|
|
Cabinet weight
|
2.2kg/per cabinet;4kg/㎡
|
|
|
||
|
|
Installation mode
|
glass surface mount
|
|
|
||
|
Screen panel technical parameters
|
Pixel density
|
4356dots/㎡
|
|
|
||
|
|
Brightness
|
500-2,500 nits
|
|
|
||
|
|
Viewing angle
|
160°/160°
|
|
|
||
|
|
Transparency rate
|
≥90%
|
|
|
||
|
|
Color Homogeneity
|
±0.003 CxCy within
|
|
|
||
|
|
Maximum contrast
|
2000:1
|
|
|
||
|
|
Protection Level
|
IP20
|
|
|
||
|
|
Maintenance mode
|
Rear side
|
|
|
||
|
System control
parameters
|
Signal color processing bits
|
red/green/blue≥16bit
|
|
|
||
|
|
Drive Type
|
Constant
|
|
|
||
|
|
Refresh Frame frequency
|
60HZ-120HZ
|
|
|
||
|
|
Refresh rate
|
1920-3840HZ
|
|
|
||
|
|
Color Temperature
|
3200K~9500K regulation
|
|
|
||
|
|
Brightness Control
|
Manual/Auto/Program Control
|
|
|
||
|
|
Pixel Correction
|
Equipped brightness and luminance Point-by-point correction
|
|
|
||
|
|
Control Mode
|
Synchronous
|
|
|
||
|
|
Transmission distance
|
Super Category 5 twisted-pair cable, over 100 meters using optical fiber transmission
|
|
|
||
|
|
Software Interface
|
WindowsXP/7/8/10
|
|
|
||
|
|
Signal input
|
HDMI、DVI
|
|
|
||
|
Screen operating parameters
|
Working Voltage
|
AC:240V、50~60Hz
|
|
|
||
|
|
Max.Power Consumption
|
800W/sqm
|
|
|
||
|
|
Average Power Consumption
|
200W/sqm400W/sqm Screen
|
|
|
||
|
|
Continuous working time
|
≥7x24hrs，Supports continuous and operating
|
|
|
||
|
|
MTBF
|
≥10000hours
|
|
|
||
|
|
Theoretical life of LED lamp
|
100,000hours
|
|
|
||
|
|
Discrete runaway rate
|
≤0.0001，Leave factory value is 0
|
|
|
||
|
|
Continuous runaway rate
|
0
|
|
|
||
|
|
Blind spot rate
|
≤0.0001，Leave factory value is 0
|
|
|
||
|
|
Working Temperature
|
-40℃~45℃
|
|
|
||
|
|
Ambient Humidity
|
10%~90%RH，non-condensing
|
|
|
||
Packing & Delivery
Flight case or wooden case, 6 or 8 pcs cabinet in one flight case.
Our company
Built in 2014,Ruiled has 9 years experinece in market, with years devolpment,Nowadays Ruiled supplying range have coverred in various 3C electronic items,LED display screen,Shenzhen Ruiled Opto Technology Co.Ltd belongs to one branch of Ruiled Group in ShiYan,BanAn DistrictShenzhen.Shenzhen Ruiled has became a professional manufacture that delicating in full-color LED display products and service,with Innovative Research&Developmentfull-process equipment and control policyexcellent Sales&service.all of these make Shenzhen Ruiled has became qualified manufacture to serve our clients.
Main products are LED energy-saving cabinet for advertising displayingLED mesh screenLED panel applied for indoor&outdoor event rental application etc.Ruiled has professional production equipment,running under the excellent technology and management team,skilled&well-trained workers.Ruiled strictly enforce the ls090001-20000 standard process.Now these certification we achieved includes:CE/ROHS. with the ability of reliable quality, advanced technologylarge sales network,and excellent service, ensure that we are offerina qualified items to our customers. Now Ruiled products have exported to NorthAmerica,Europe(like France,Italy,GermanyUK etc.), and middle ease etcmore than 80 countries.
Certifications
FAQ
Q1: How to help client choose suitable display?
A1:(1)display content
A1:(1)display content
(2)visible distance,visual angle
(3)requirements of cabinet resolution
(4)installation environment
(5)cost control
Q2: What about your technical support?
A2: Proffesional engineers are on standby,and can offer guidancesite technical support as required.
Q3: What's the warranty of your LED Display Screen?
A3: 2-year warranty. and 100,000 hours life span of the led lamps.
Q4: What's the control system?
A4: For synchronization control:Nova,Linsn Or Colorlight control system
Q2: What about your technical support?
A2: Proffesional engineers are on standby,and can offer guidancesite technical support as required.
Q3: What's the warranty of your LED Display Screen?
A3: 2-year warranty. and 100,000 hours life span of the led lamps.
Q4: What's the control system?
A4: For synchronization control:Nova,Linsn Or Colorlight control system
For asynchronous control: Onbonor Xixun control system.
