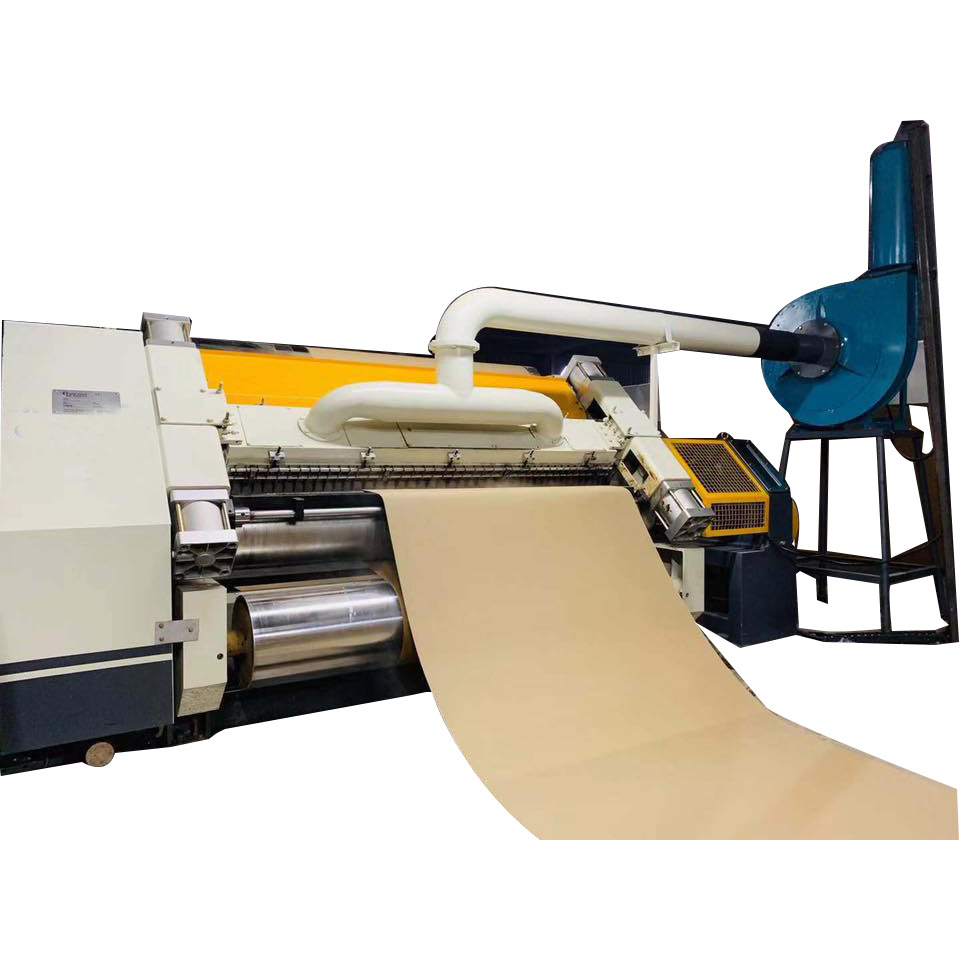

carton machines making fully automatic Single Facer Corrugated Cardboard Making Machine

Ø Structural features :

♦ Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.

♦ Steam heating model

♦ base and wallboard cast iron wall , Wallboard thickness130mm . universal Joints .

♦ corrugated roller material adopt 48 CrMo Alloy steel

♦ pressure roller 284mm,surface grinding and chrome-plated ; cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices) .

♦ pneumatic control glue to glue back, glue roller diameter 215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated , after scraping the roller surface polished hard chrome plated.

♦ Corrugated roller, pressure roller materials provided by the Central Plains Steel , High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. 160mm cylinder with compression cylinder.

♦preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm , connecting with metal Hose .

Ø regular technical parameters :

1 , effective width : 1800mm

2 , operation direction : left or right ( determined in accordance with customer plant )

3 , design speed : 100m/min working speed: 6 0m/min

4 , temperature range : 200 — 260 ℃

5 , corrugated flute: ( UV type or UVV type )

Ø roller diameters parameters :

1 , diameter of corrugated roller : 280mm

2 , diameter of pressure roller : 284mm

3 , diameter of glue roller : 216mm

4 , diameter of preheat roller : 320mm

Ø powered motor parameters :

1 , main drive motor : 7.5Kw   rated voltage : 380V    50Hz     Continuous (S1) working standard

2 , suction motor:7.5Kw       rated voltage : 380V    50Hz     Continuous (S1) working standard
