Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Sinoroader
-
Product name:
-
Mechanical Chip Spreader
-
Model:
-
HDSS1631J
-
Paving Width:
-
3100mm
-
Aggregate size:
-
3-30mm
-
Spreading amount:
-
0.5-50m3/km2
-
Lower suspension:
-
570mm
-
Rear suspension:
-
1500mm
-
Dimension:
-
1900 2500 2100 (L W H)
-
Working Speed:
-
2.5 to 5 km/h
-
Certification:
-
CE,ISO,SGS,BV
Quick Details
-
Weight:
-
2000 kg
-
Engine Brand:
-
adjustable
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
China
-
Brand Name:
-
Sinoroader
-
Product name:
-
Mechanical Chip Spreader
-
Model:
-
HDSS1631J
-
Paving Width:
-
3100mm
-
Aggregate size:
-
3-30mm
-
Spreading amount:
-
0.5-50m3/km2
-
Lower suspension:
-
570mm
-
Rear suspension:
-
1500mm
-
Dimension:
-
1900 2500 2100 (L W H)
-
Working Speed:
-
2.5 to 5 km/h
-
Certification:
-
CE,ISO,SGS,BV

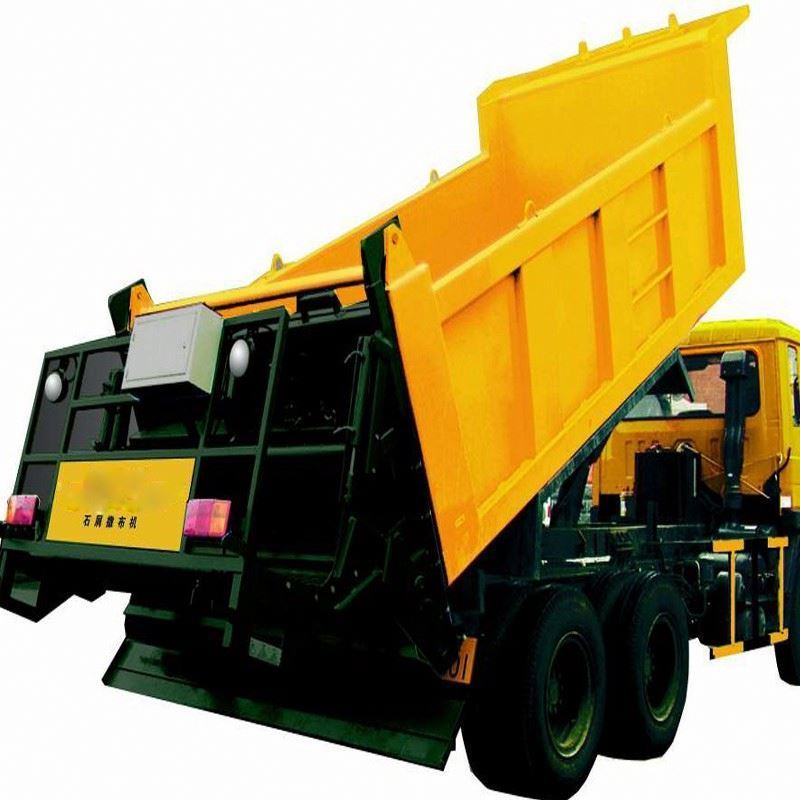

CHIP
SPREADER
MOUNTED DUMPER TRUCK FOR SALE
WhatsApp:+86 18137858347
HDSS1631J chip spreader is a new type of patented road maintenance machinery (Patent no. 03262634.7) researched by our company independently. It features easy operation, even spreading capacity and adjustable spreading width and other characteristics. It combines electrical system, pneumatic system and mechanical system in a complex. Used together with our automatic asphalt distributor, it is ideal equipment especially for chip sealing.
HDSS1631J chip spreader consists of electrical system, mechanical system, and air control system.
Electrical system
1. 16 feed gates can be controlled separately to flexibly adjust spreading width.
2. Hopper is able to be remotely controlled in cabin or operating platform.
3. Perfect lighting system for working at night.
4. Hopper lifting limit alarm is installed to enhance safe working .
5. Quick couplings are applied to connect the e lectrical system of truck and spreader, which is easy to install and disassemble .
Mechanical system
1. Feed gates are controlled by one general switch and 16 sub-switches for group control or separate control.
2. F ine tuning device can adjust single feed gate to effectively adjust spreading evenness and thoroughly solve the problem of un even spreading locally by traditional chip spreader.
3. Exclusive roller anti-slipping device can effectively prevent the aggregates from skidding on the roller .
4. Inclination angle of spreading plate is adjustable for aggregates of 3-30mm.
5. This machine is very easy to install and disassemble .
Air control system
1. The air control s ystem is installed with filter to remove water vapor and foreign matter to ensure reliability of the system.
2.
Superior elements ensure that the air
circuit
work stably and reliably.
