Quick Details
-
Brand Name:
-
RKSfluid
-
Product name:
-
Metal Seated Gate Valve
-
Pressure:
-
PN10/PN16/PN25
-
Temperature:
-
≤+80℃
-
Material:
-
DI/CI/WCB/SS
-
Design standard:
-
BS5163 /DIN
-
Face to face:
-
BS5163.DIN F4
-
Flange standard:
-
BS EN1092-2
-
Disc:
-
ductile iron, SS316 customized
-
Connection:
-
Flange
Quick Details
-
Port Size:
-
DN50-DN2000
-
Place of Origin:
-
Liaoning, China
-
Model Number:
-
SASQUATCH
-
Brand Name:
-
RKSfluid
-
Product name:
-
Metal Seated Gate Valve
-
Pressure:
-
PN10/PN16/PN25
-
Temperature:
-
≤+80℃
-
Material:
-
DI/CI/WCB/SS
-
Design standard:
-
BS5163 /DIN
-
Face to face:
-
BS5163.DIN F4
-
Flange standard:
-
BS EN1092-2
-
Disc:
-
ductile iron, SS316 customized
-
Connection:
-
Flange

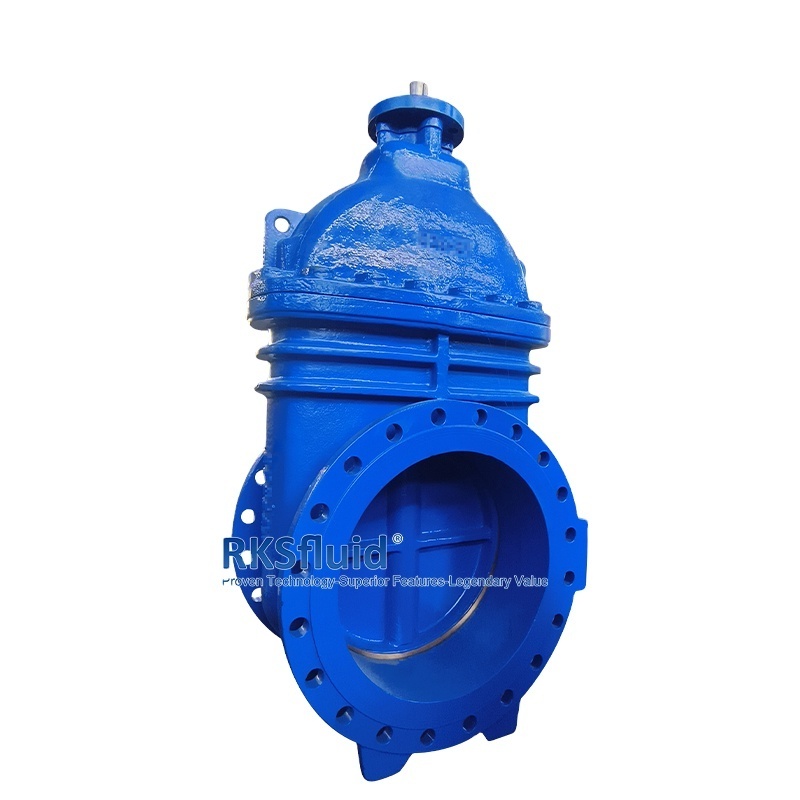

Description：
This series of gate valve is installed in pipeline as closed-circuit equipment and suitable water.
Suitable temperature ≤ 80℃.
I - Design standard: BS5163.
II - Face to face: BS5163.DIN F4.
III - Flanges standard: BS EN1092-2:1997 PN16.
IV - Tests standard: BS EN 12266-1:2003 Rate B.
Feature：
1.double flange metal seated gate valve
2.Size Range:DN50-DN2000
3.Standard-ISO/BS/DIN/AWWA/API
4.Tests Standard-BS EN 12266-1
5.Body Ring-Bronze/SS420/SS304/SS316
6.Body-Ductile Iron /Cast Iron/Stainless Steel /WCB
7.Fusion bonded epoxy coating-min 300 microns
Product Parameter
|
Pressure ratings
|
PN10 - PN16 - PN25
|
|
Material
|
cast iron/ductile iron/WCB/Stainless steel
|
|
Application
|
Water Treatment,HVAC,Irrigation System,Pumping,Smart Water Control,Power Station,Desalination,Mining,Coal Chemical Industry
|
Application
Recommend Products
Our Company
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
FAQ
|
Q1: How long is the delivery time?
A1: Generally it's 5-10 days we have stock. Or it's 15-90 days depend on different product and quantity. |
|
|
|
|||
|
Q2: What about the payment term?
A2: T/T 30% deposit, balance payment after finished production before shipment. Or as discussed. |
|
|
|
|||
|
Q3: Can I have a sample order?
A3: Yes, we agree sample order, mixed different models is also acceptable. |
|
|
|
|||
|
Q4: What's your MOQ?
A4: We can support 1 pc order. Welcome you to check our quality. |
|
|
|
|||
|
Q5: What's your quality inspection? Do you test all your goods before delivery?
A5: Yes, 100% test. It integrates R&D, casting, production, processing, painting, assembly, testing, sales and after-sales service, and strict quality requirements, according to GB, ASME, API, DIN standard, and we have gained ISO9001;2008, CE, and TUV certification. |
|
|
|
|||
|
Q6: Could I customize special request valve or new design products?
A6: We have own R&D team and more than 70 researchers and engineers. Can give you the best support on quality management and techniques, meet your different needs. |
|
|
|
|||
|
Q7: How does your factory do regarding quality control?
A7: Quality is priority. Valve always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001;2008, CE, TUV, authentication. |
|
|
|
|||
