Quick Details
-
Lock Size:
-
75Lx32Wx10H(mm)
-
Voltage:
-
12/24VDC
-
Suitable for:
-
File Cabinet ,Display Cabinet
-
Finish:
-
Zinc Plated Parts
-
Certification:
-
CE/MA
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Holding Force:
-
70kg(140Lbs)
-
Lock Size:
-
75Lx32Wx10H(mm)
-
Voltage:
-
12/24VDC
-
Suitable for:
-
File Cabinet ,Display Cabinet
-
Finish:
-
Zinc Plated Parts
-
Certification:
-
CE/MA
Product Description
Product Application

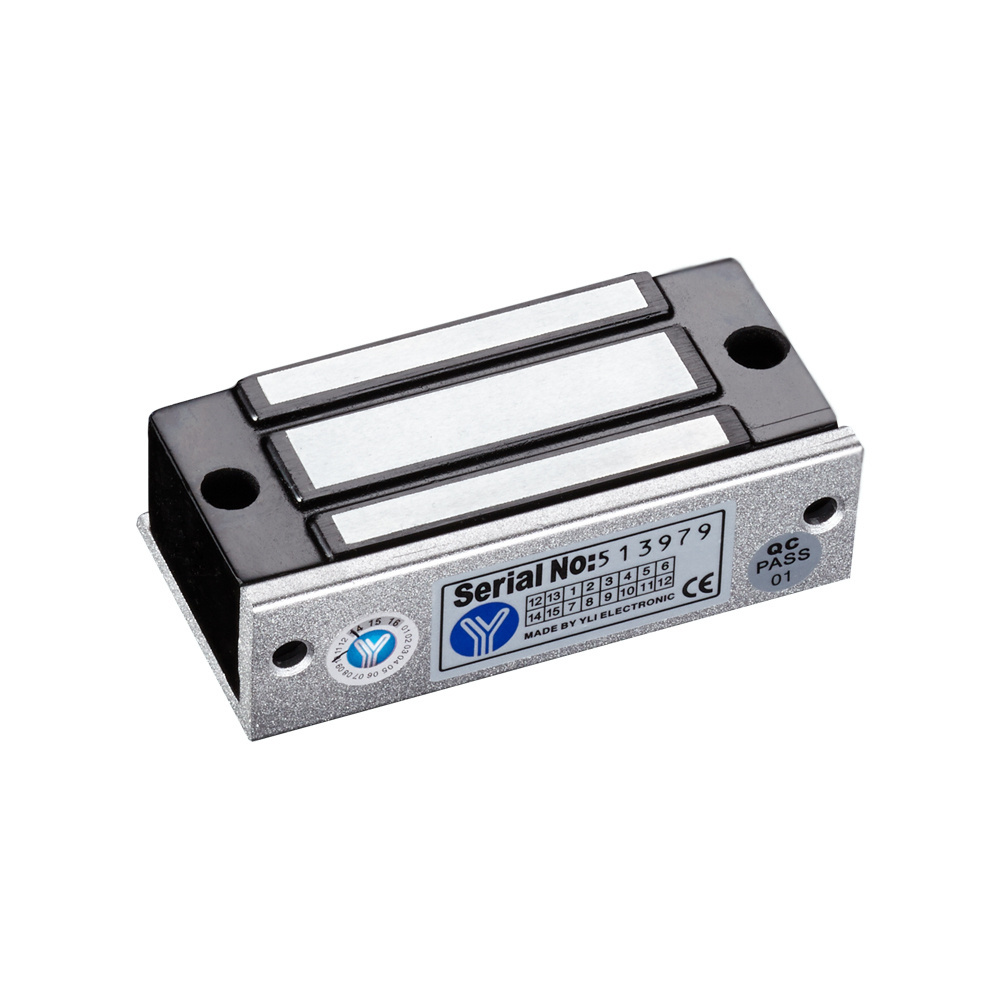

YM-70N-S is a mini single electric lock with signal output and easy installation , it is designed for showcase, cabinet door with a Holding force of 140lbs.
|
Size
|
90Lx36.5Wx24H(mm)
|
|
|
||
|
Armature Plate Dimension
|
75Lx32Wx10H(mm)
|
|
|
||
|
Holding Force
|
70kg(140Lbs)
|
|
|
||
|
Input Voltage
|
12 or 24VDC
|
|
|
||
|
Current
|
12V/240mA or 24V/120mA
|
|
|
||
|
Suitable
|
File Cabinet ,Display Cabinet
|
|
|
||
|
Surface Temp
|
≤+20℃
|
|
|
||
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
|
||
|
Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Cover Finish
|
Anodized aluminum
|
|
|
||
|
Lock Finish
|
Zinc
|
|
|
||
|
Armature Plate Finish
|
Zinc
|
|
|
||
|
Weight
|
0.7KG
|
|
|
||
Installation Diagram
