Quick Details
-
Model Number:
-
S11-M
-
Coil Number:
-
AUTOTRANSFORMER
-
Usage:
-
transformer
-
Coil Structure:
-
TOROIDAL
-
Product name:
-
OLTC oil-immersed transformer
-
Place of Orign:
-
Zhejiang ,China
-
Related Voltage:
-
up to 35kV
-
Rated Frequency:
-
50Hz
-
Rated Capacity:
-
50-2500kVA
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
1PCS
-
Ambient temperature:
-
-40℃~40℃
-
Installation height:
-
Not more than 2000m
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhegui Electric
-
Model Number:
-
S11-M
-
Coil Number:
-
AUTOTRANSFORMER
-
Usage:
-
transformer
-
Coil Structure:
-
TOROIDAL
-
Product name:
-
OLTC oil-immersed transformer
-
Place of Orign:
-
Zhejiang ,China
-
Related Voltage:
-
up to 35kV
-
Rated Frequency:
-
50Hz
-
Rated Capacity:
-
50-2500kVA
-
Certificate:
-
ISO CCC IEC
-
OEM:
-
Offered
-
MOQ:
-
1PCS
-
Ambient temperature:
-
-40℃~40℃
-
Installation height:
-
Not more than 2000m
Product Description

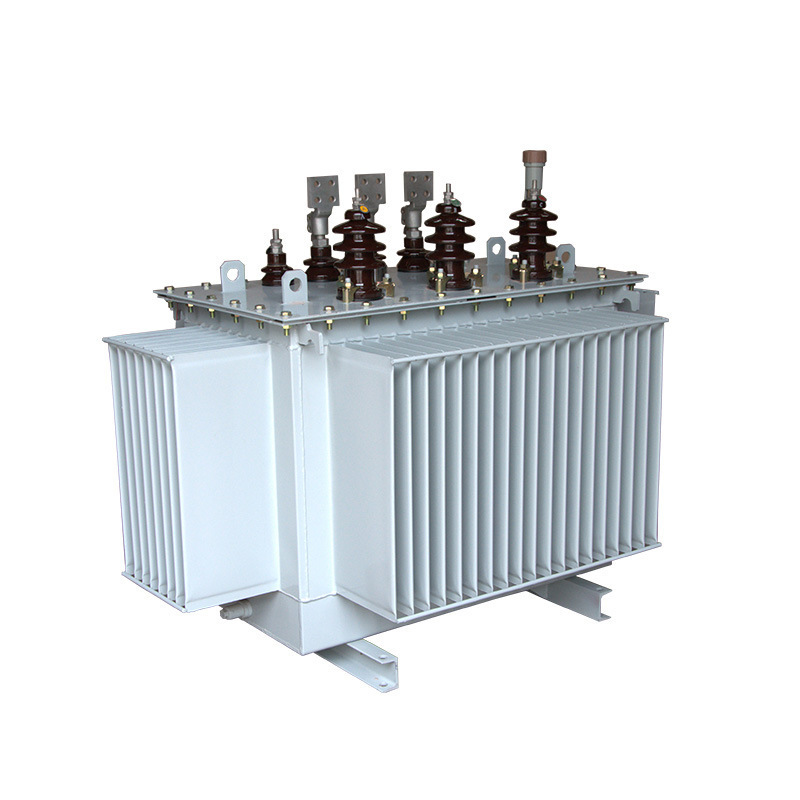

Oil Immersed Transformer
Description:
This kind of product is applied to power system of three-phase,
50Hz 60Hz as well as 35kV and below,
it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power illumination for the industry and agriculture.
The company introduces domestic and overseas advanced techniques, adopts the latest material, and optimizes design, which enables the product structure more reasonable and greatly improves the product's
electric strength, mechanical strength, and heat-sinking capability
.
S11 series product has passed the short-circuit test prepared by Wuhan High Voltage Research Institute and also the test prepared by the National Center for Quality Supervision & Test of Transformer
| 1. Adopt prefabricated touchable silicone rubber cable end, fully sealed, fully insulated, maintenance-free, the reliable guarantee of personal safety |
| 2. Compact structure, compact and beautiful appearance, stainless steel double-layer box, service life can reach more than 20 years; |
| 3. Realize regional power outage maintenance and reduce power outage range without affecting the operation of the main network; |
| 4. One or more SF6 load switches can be equipped. The connection mode is flexible and diverse, the branch and outlet line can reach up to 8 circuits; |
| 5. Optional lightning arrester, short circuit fault indicator, current limit fuse, etc., to meet various requirements of users. |
| 1.Ambient air temperature: Maximum air temperature: +40℃Minimum air temperature:-15℃ (Under a special process, up to-45 ℃C) |
| 2.Altitude:s 2500m(Under a special process, up to 4000m) |
| 3.Installation environment inclination of installation lace<3 no obvious dirt and corrosive or flammable gas |
| 4.Notes: If the operatinq conditions exceed the normal conditions, please contact our technical department. |
