Quick Details
-
Drilling Speed:
-
31.5~1400
-
Place of Origin:
-
China
-
Brand Name:
-
LUZHONG MACHINE
-
Model Number:
-
Z5140B-1
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
130*120*253CM
-
Weight (KG):
-
1350 KG
-
After-sales Service Provided:
-
No overseas service provided, Online support, Video technical support
-
Max drilling diameter:
-
40mm
-
Spindle travel:
-
250mm
-
Weight:
-
1350KG
-
Power(W):
-
3
-
Certification:
-
CE ISO
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
40 mm
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400 r.p.m
-
Drilling Speed:
-
31.5~1400
-
Place of Origin:
-
China
-
Brand Name:
-
LUZHONG MACHINE
-
Model Number:
-
Z5140B-1
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
130*120*253CM
-
Weight (KG):
-
1350 KG
-
After-sales Service Provided:
-
No overseas service provided, Online support, Video technical support
-
Max drilling diameter:
-
40mm
-
Spindle travel:
-
250mm
-
Weight:
-
1350KG
-
Power(W):
-
3
-
Certification:
-
CE ISO
Product Description
Product description:

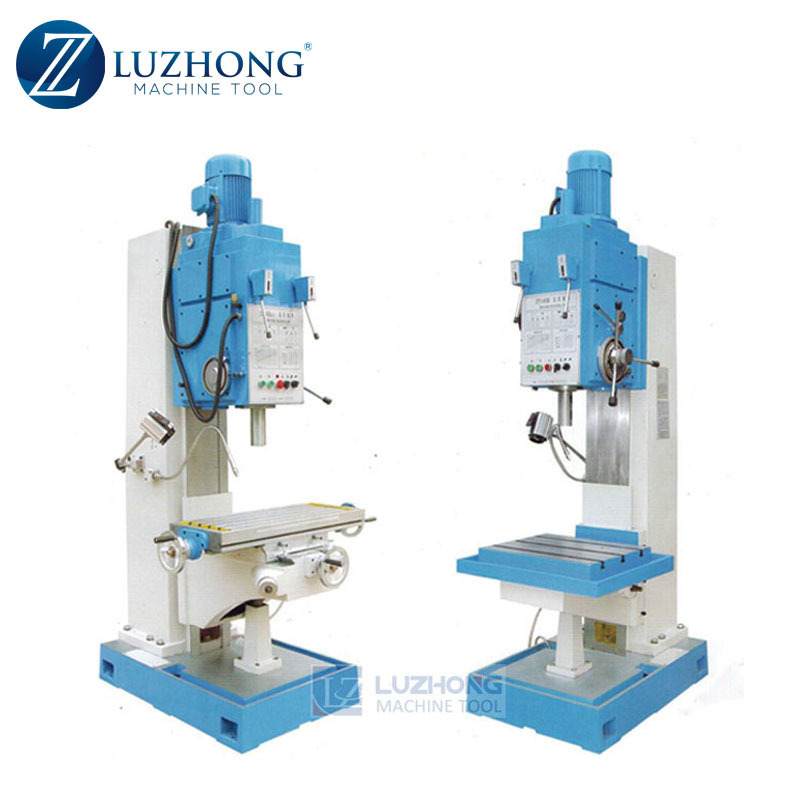

1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is
very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed
operation, novel appearance, convenient maintenance and so on.
Product main technical specifications:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is
very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed
operation, novel appearance, convenient maintenance and so on.
Product main technical specifications:
|
Specifications
|
Z5140B-1
|
|
Max drilling diameter(mm)
|
40
|
|
Spindle taper
|
MT4
|
|
Spindle travel
|
250
|
|
Spindle box travel(manual)(mm)
|
200
|
|
Spindle speed (steps)
|
12
|
|
Spindle speed range(r.p.m)
|
31.5~1400
|
|
Feed series
|
9
|
|
Feed range(mm/r)
|
0.056~1.80
|
|
Table size(mm)
|
800*320
|
|
Table longitudinal(cross) travel(mm)
|
450/300
|
|
Table vertical travel(mm)
|
300
|
|
Max distance form spindle nose to table surface(mm)
|
750
|
|
Main motor power(kw)
|
3
|
|
Overall size(mm)
|
1300*1200*2530
|
|
N/W(kg)
|
1350
|
