Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
YW02
-
Brand Name:
-
YONGWEI
-
Name:
-
steel welded wire mesh
-
Hole Shape:
-
Square
-
Mesh:
-
10*10mm 15*15mm, ,20*20mm,30*30mm,customize
-
Wire Gauge:
-
BWG23-BWG14
-
Height:
-
0.8-2.0m
-
Roll length:
-
5-50m
-
Welding type:
-
Weld before plating/Plate before welding
-
Color:
-
Black
Quick Details
-
Material:
-
Galvanized Steel Wire
-
Type:
-
Welded Mesh
-
Application:
-
Construction Wire Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
YW02
-
Brand Name:
-
YONGWEI
-
Name:
-
steel welded wire mesh
-
Hole Shape:
-
Square
-
Mesh:
-
10*10mm 15*15mm, ,20*20mm,30*30mm,customize
-
Wire Gauge:
-
BWG23-BWG14
-
Height:
-
0.8-2.0m
-
Roll length:
-
5-50m
-
Welding type:
-
Weld before plating/Plate before welding
-
Color:
-
Black

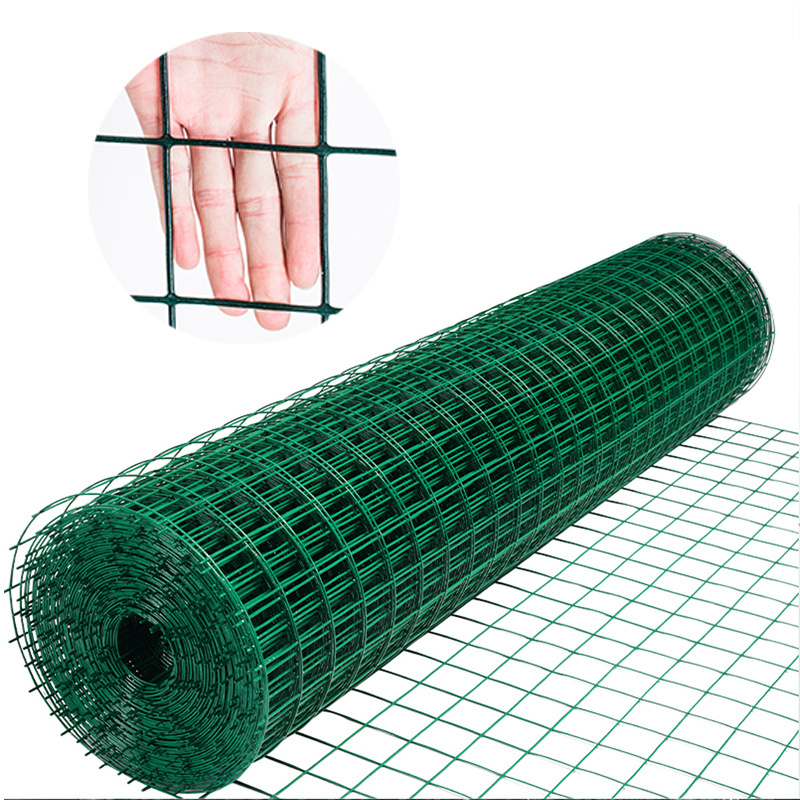

1/4"-8"Aperture pvc coated hot galvanized welded iron wire mesh for fencing
Welded wire mesh
is one popular materials in concrete, construction and industry. It is made of low carbon steel wire,
PVC coated wire and
stainless steel wire
,
after welding
or before welding
and surface
zinc
treating
.
The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
|
Specification |
||||
| Opening | Wire Diameter |
Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded , PVC coated , Stainless steel wire |
|
| Inch | Metric Unit | |||
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note:Special specification can be made according to customers requires | ||||
- Fence, Animal Safety Net
- Slurry Net in petroleum
- Sifting Mesh and Screening Mesh in chemical
- Acid Washing Mesh
