Quick Details
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
FS-UV4120R220A
-
Sensor:
-
CMOS&Vox
-
HD lens:
-
12.5~400mm
-
Thermal lens:
-
25~100mm, 4x optical zoom
-
Thermal detector:
-
uncooled microbolometer focal plane array
-
Effective pixels:
-
384x288 (640x512)
-
Pan Tilt:
-
Horizontal 360°contionuous rotation,Tilt-45°~ +45°
-
Preset:
-
255
-
Power:
-
DC30V
-
Protection grade:
-
IP66
-
Channels:
-
1
Quick Details
-
Special Features:
-
NIGHT VISION
-
Network:
-
ONVIF
-
Function:
-
Waterproof / Weatherproof, PAN-TILT
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
FS-UV4120R220A
-
Sensor:
-
CMOS&Vox
-
HD lens:
-
12.5~400mm
-
Thermal lens:
-
25~100mm, 4x optical zoom
-
Thermal detector:
-
uncooled microbolometer focal plane array
-
Effective pixels:
-
384x288 (640x512)
-
Pan Tilt:
-
Horizontal 360°contionuous rotation,Tilt-45°~ +45°
-
Preset:
-
255
-
Power:
-
DC30V
-
Protection grade:
-
IP66
-
Channels:
-
1

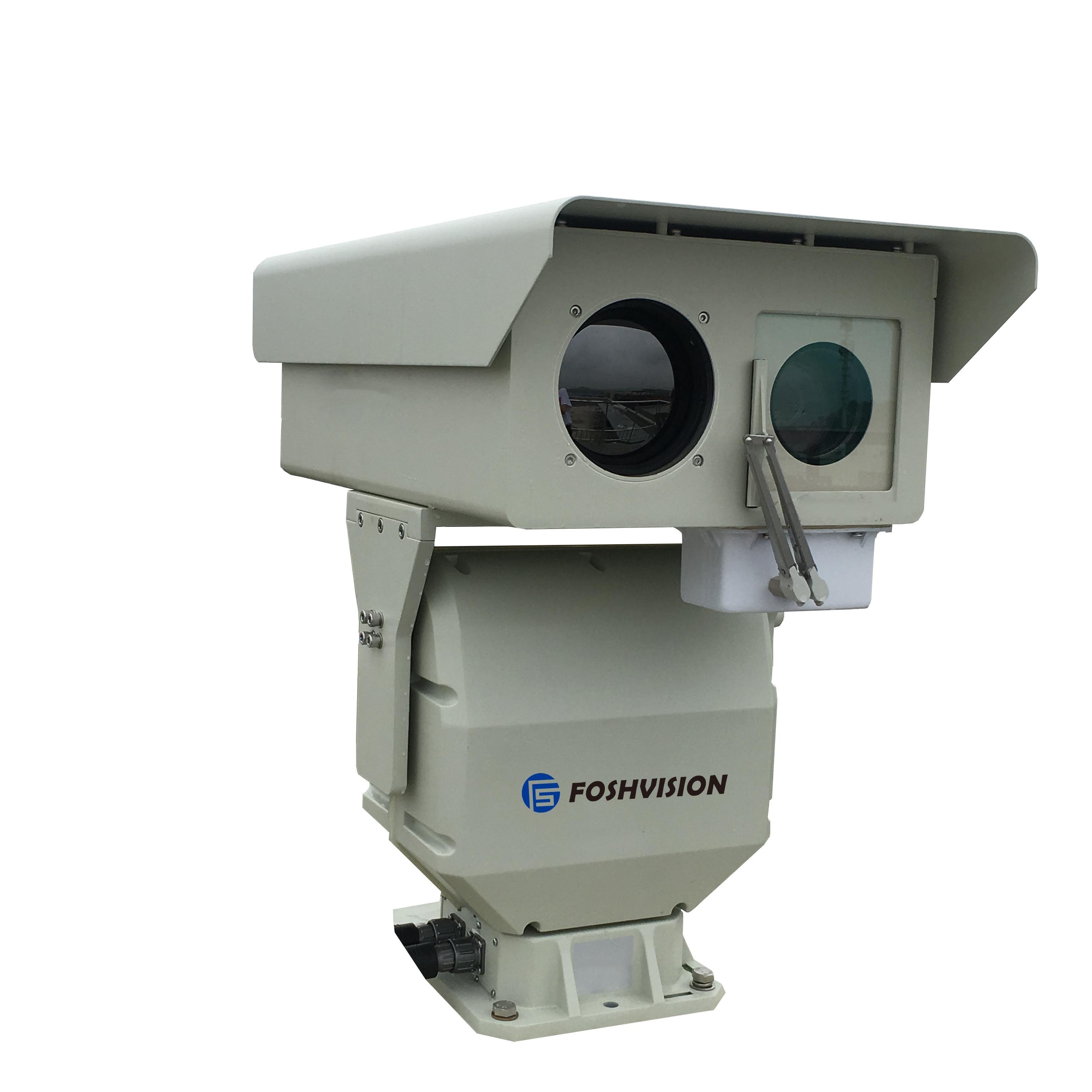

Dual sensor PTZ thermal camera FS-UV4120R210
| FS-UV4120R220A | ||||
| Operating distance | Visible light | 10000m | ||
| Thermal imaging | object | human(1.8m×0.5m) | Vehicle(2.3m×2.3m) | |
| Detection distance | 5500m | 15300 | ||
| Recognition distance | 1350m | 3800 | ||
| Identification distance | 675m | 1900 | ||
| HD lens | Lens | 16.7~1000mm | ||
| FOV | 0.45°~25° | |||
| Aperture Type | Auto Aperture | |||
| Focus | Manual/Auto | |||
| Camera and video coding | Sensor type | 1/1.8" Progressive Scan CMOS | ||
| Total pixels | 2.1MP | |||
| Camera control | Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch | |||
| Penetrate fog | On/Off optional | |||
| Post-focusing | Support, Remote-test | |||
| Coding format | H.265/H.264/MJPEG | |||
| Noise reduction | 3D Digital noise reduction | |||
| Video resolution | 1920x1080, three stream supported | |||
| Video frame rate | 50Hz:25fps(1920×1080),25fps (1280×720) | |||
| 60Hz:30fps(1920×1080),30fps (1280×720) | ||||
| Image adjustment | brightness, contrast ratio, saturation | |||
| Infrared lens | Focal length | 20~200mm,10× optical zooming | ||
| FOV | 2.20°x1.65°~21.74°x16.39° | |||
| F value | F1.0~F1.2 | |||
| Lens control | electric zooming, electric focusing (auto focusing optional) | |||
| Detector | Detector type | Uncooled microbolometer focal plane array(VOx) | ||
| Effective pixels | 384×288 | |||
| Spectral range | 8~14μm | |||
| Temp sensitivity | ≤50mK (at) F1.0,300K | |||
| Frame rate | 25Hz | |||
| Image processing | DDE, pseudo color | |||
| Pan-tilt | Carrying capacity | 50kg (top load) | ||
| Angle | Horizontal 360°continuous rotation, pitching -45°~+45° | |||
| Speed | Horizontal 0.01°~20°/s, pitching 0.1°~10°/s | |||
| Preset bits | 255 | |||
| Cruising | 2 paths,64 bits each path | |||
| Auto-scan | 1 path | |||
| Interface | Power supply interface | DC30V | ||
| Network interface | 1×10Base-T/100Base-TX,RJ45 | |||
| Environment indicators | Working temp | -25℃~+55℃ | ||
| Storage temp | -40℃~+65℃ | |||
| Protection grade | IP66 | |||
| Power supply | Whole machine power supply | 90VAC~305VAC to DC30V water proof power supply | ||
| Whole machine power consumption | ≤140W | |||
| Physical features | Whole machine weight | ≤65kg | ||
| Dimension | 722×429×625(L×W×H)mm | |||
| Installation method | Outdoor pedestal mounting | |||
The thermal imaging camera provides early warning and positioning of fires that are not easily noticeable to the naked eye, reducing losses and reducing risk.
Foshvision Technology Co., Ltd was founded in 2006, which is a leading thermal imaging camera and laser night vision system supplier and manufacturer, as well as a relying Academician Surveillance Engineering Technology Research Center in China.
Among all employees, 50% are professional technicians, including doctorates, masters, and senior engineers. Foshvision adheres to independent innovation, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the certain share of world’s night vision market.
With the internationalized management mode, Foshvision has gained the authentication of ISO9001A-2001 quality management system, CE certificate, FCC certificate, etc.
