Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
Allraising
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
2200X800X1700MM
-
Power (kW):
-
30
-
Weight:
-
8200 KG
-
Model:
-
DY- 2000
-
Screw diameter of main:
-
90mm 65mm
-
Length to diameter ratio:
-
30:1
-
Main and auxiliary extruder power:
-
30kw 15kw
-
Width of product:
-
2000mm
-
Main bubble Specifications:
-
6*3.2nm 10*3.8mm 25*10mm 30*10mm
-
Production:
-
80-150kg/h
-
Total installed capacity:
-
120kw
-
Overall dimensions:
-
7.5*3.2*2.8m
-
Machine weight:
-
8.2T
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
22:1
-
Screw Speed (rpm):
-
56 rpm
-
Place of Origin:
-
ZHE
-
Brand Name:
-
Allraising
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
2200X800X1700MM
-
Power (kW):
-
30
-
Weight:
-
8200 KG
-
Model:
-
DY- 2000
-
Screw diameter of main:
-
90mm 65mm
-
Length to diameter ratio:
-
30:1
-
Main and auxiliary extruder power:
-
30kw 15kw
-
Width of product:
-
2000mm
-
Main bubble Specifications:
-
6*3.2nm 10*3.8mm 25*10mm 30*10mm
-
Production:
-
80-150kg/h
-
Total installed capacity:
-
120kw
-
Overall dimensions:
-
7.5*3.2*2.8m
-
Machine weight:
-
8.2T
Products Description
High Precision Self Adhesive Label Printing Machine Roll Label Printer

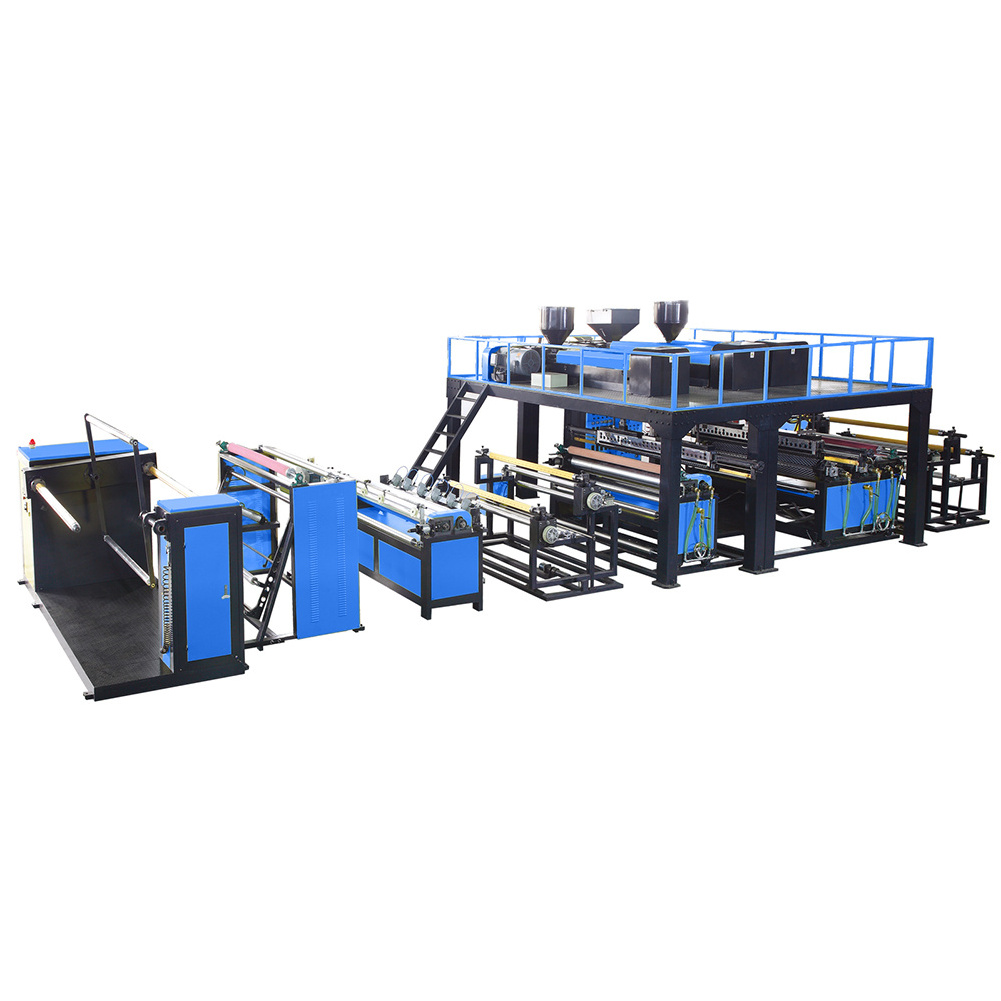

High Speed Air Bubble Film Extrusion Bubble Wrap Extruder Machine
High Precision Self Adhesive Label Printing Machine Roll Label Printer
|
Model
|
DY- 2000
|
DY-1600
|
DY-1200
|
||
|
Screw diameter of main and auxiliary extruders
|
φ90mm φ65mm
|
φ70mum φ 55mum
|
φ65mm φ50mm
|
||
|
Length to diameter ratio
|
30:1
|
|
|
||
|
Main and auxiliary extruder power
|
30kw 15kw
|
18.5kw 11kw
|
15kw 11 kw
|
||
|
Width of product
|
2000mm
|
1600mm
|
1200mm
|
||
|
Main bubble Specifications
|
φ6*3.2nm φ10*3.8mm φ 25*10mm φ30*10mm
|
|
|
||
|
Production
|
80-150kg/h
|
60-110kg/h
|
50-90kg/h
|
||
|
Total installed capacity
|
120kw
|
98kw
|
85kw
|
||
|
Overall dimensions
|
7.5*3.2*2.8m
|
7.5*2.8*2.8m
|
7.5* 2.6* 2.8m
|
||
|
Machine weight
|
8.2T
|
6.8T
|
5.5T
|
||
|
1.It has strong shock resistance and reliability.
|
|
2.Suitable for various materials, including low density polyethylene (LDPE), linear low density polyethylene (LLDPE).
|
|
3.Can produce a variety of bubble size and a variety of films, 6mm, 8mm, 10mm, 20mm, 25mm. through Change the bubble roll.
|
|
4.Can be customized for composite film, foam PE film, aluminized paper.
|
|
5.Computer operation is very easy.
|
|
6.Strengthen and air cooling function, greatly improve the production efficiency. Make the bubble film more transparent and three-dimensional sense.
|
