Quick Details
-
Brand Name:
-
HTSOLAR
-
Model Number:
-
HT-P3W-12P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
215*140*3mm
-
Solar cell:
-
mono156*156 Cell cut
-
Junction Box:
-
Ip65 Rated/ Pass
-
Pv cable:
-
MC4
-
Front cover:
-
3.2mm Thick.low Iron Tempered Glass
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/ISO9001, CE/TUV/IEC/CEC/INMETRO/ISO
-
Weight(Kg):
-
90g
-
Application:
-
Camping
-
Voltage regulator:
-
5~5.5v regulator for charging mobile phone
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
Half Cell
-
Warranty:
-
3months-1year
-
Brand Name:
-
HTSOLAR
-
Model Number:
-
HT-P3W-12P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
215*140*3mm
-
Solar cell:
-
mono156*156 Cell cut
-
Junction Box:
-
Ip65 Rated/ Pass
-
Pv cable:
-
MC4
-
Front cover:
-
3.2mm Thick.low Iron Tempered Glass
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/ISO9001, CE/TUV/IEC/CEC/INMETRO/ISO
-
Weight(Kg):
-
90g
-
Application:
-
Camping
-
Voltage regulator:
-
5~5.5v regulator for charging mobile phone

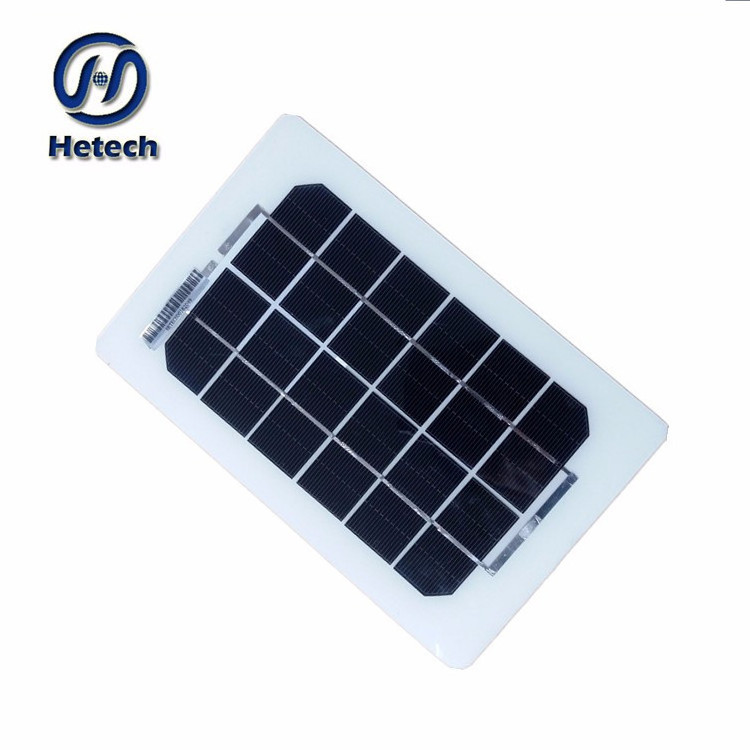

thin film light weight mini flexible solar panel 3w 6v
| Electrical Characteristic: | |
| Module Type | HT-M3W-12P |
| Peak power | 3W 0~+3%Toleracne |
| Optimum Operating Voltage(Vmp) | 6.0V |
| Optimum Operating Current(Imp) | 500mA |
| Open-Circuit Voltage(Voc) | 7.21V |
| Short-Circuit Current(Isc) | 600mA |
| Maximum system voltage | DC1000V |
| Warranty |
5 years product defect warranty.
90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | HT-M3W-12P |
| Size | 215*140*3mm |
| Weight | 90g |
| No. of Cells | 12(2*6) pcs |
| Cell dimension | Mono 156*156mm |
| Junction Box | IP67/IP65 rated |
| Connectors | MC4/without |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure | 60m/s(200kg /m² ) |
S
emi-flexible solar panel is the alternative solar module - lighter, thinner. It charges your on-board 12V battery of your motorhome, caravan, boat or other vehicle automatically, silently and maintenance free. ,is much more flexible than comparable solar modules. Curved surfaces such as boat decks or caravan alcoves are easily mounted,Potted junction box, for additional protection.
APPLICATIONS:
Boats/Sailboats, Yachts, Marine applications
Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places
Highlights
Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.
Unique frameless design includes six metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards CE,TUV
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments
Positive and negative leads equipped with MC4 connectors
Two bypass diodes minimizes performance drop due to partial shade
Set up easily
Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 3mm thick .
Built in blocking diode to prevent battery discharge at night
all weather proof. They are water-proof and UV-Resistant. Potted junction box, for additional protection.
