Quick Details
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Henan
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
1600*450*900mm
-
Weight:
-
360 kg
-
Power:
-
220v/380v
-
Marketing Type:
-
New Product 2023
-
Product name:
-
High Quality 4kw Sand Cement Wall Sprayer
-
Function:
-
Mortar Plastering Machine
-
Voltage:
-
380v/3phase or customized
-
Advantage:
-
No need to often change the wearing parts
-
Motor:
-
Siemens, Schneider or Chinese famous brand
-
Suitable for:
-
putty powder, cement mortar, dry mortar, insulation mortar, etc
-
Easy operation:
-
Connection between the spray gun and the feeding tube can be rotated
-
Easy to carry:
-
Small size and low cost of accessories, simple maintenance
-
Spraying effect:
-
Adjust the flow rate to bring out the best spraying effect
Quick Details
-
Max. vertical conveying distance:
-
20-25M
-
Max. horizontal conveying distance:
-
40-50M
-
Hopper Capacity:
-
30l
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Henan
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
1600*450*900mm
-
Weight:
-
360 kg
-
Power:
-
220v/380v
-
Marketing Type:
-
New Product 2023
-
Product name:
-
High Quality 4kw Sand Cement Wall Sprayer
-
Function:
-
Mortar Plastering Machine
-
Voltage:
-
380v/3phase or customized
-
Advantage:
-
No need to often change the wearing parts
-
Motor:
-
Siemens, Schneider or Chinese famous brand
-
Suitable for:
-
putty powder, cement mortar, dry mortar, insulation mortar, etc
-
Easy operation:
-
Connection between the spray gun and the feeding tube can be rotated
-
Easy to carry:
-
Small size and low cost of accessories, simple maintenance
-
Spraying effect:
-
Adjust the flow rate to bring out the best spraying effect
Product Description

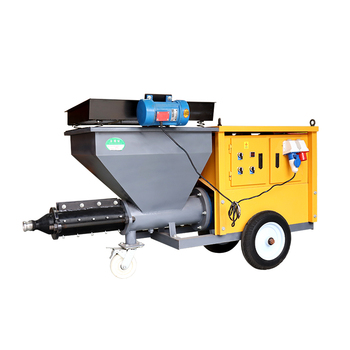

High Efficiency 3-6MPA Diesel Cement Mortar Sprayer Wall Putty Spraying Machine
The mortar spraying machine is our newest product, the machine consists of
motor, reducer, pump, air compressor, electrical equipment, machine frame and so on.
motor, reducer, pump, air compressor, electrical equipment, machine frame and so on.
It has a big advantage than the screw style spraying machine, the machine has high pressure, fast speed,high efficiency, easy moving, easy maintenance, most important, no need to often change the wearing parts.
Structure
Various Models
|
Model
|
311(Z20)
|
511
|
711
|
|
Conveying Pipe Diameter
|
32mm
|
38mm
|
38mm
|
|
Conveying Pipe Diameter
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Motor Power
|
4kw
|
7.5kw
|
7.5kw
|
|
Voltage
|
380V Three Phase Electricity
|
380V Three Phase Electricity
|
380V Three Phase Electricity
|
|
Spraying Area
|
150-170m²/h
|
180-200m²/h
|
220m²/h
|
|
Working Pressure
|
5-8mpa
|
5-8mpa
|
5-8mpa
|
|
Conveying Flow
|
3m³/h
|
3m³/h
|
4m³/h
|
|
The Maximum Passing Particle
|
4mm
|
4mm
|
4mm
|
|
Maximum Vertical Distance
|
10-15m
|
15-20m
|
20-25m
|
|
Maximum Horizontal Distance
|
25-35m
|
30-40m
|
40-50m
|
|
Total Weight
|
150kg
|
300kg
|
360kg
|
Product Details
Product Display
Applications
It is suitable for putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof material, fire prevention materials, insulation materials, sound-absorbing materials and some other water soluble materials.
