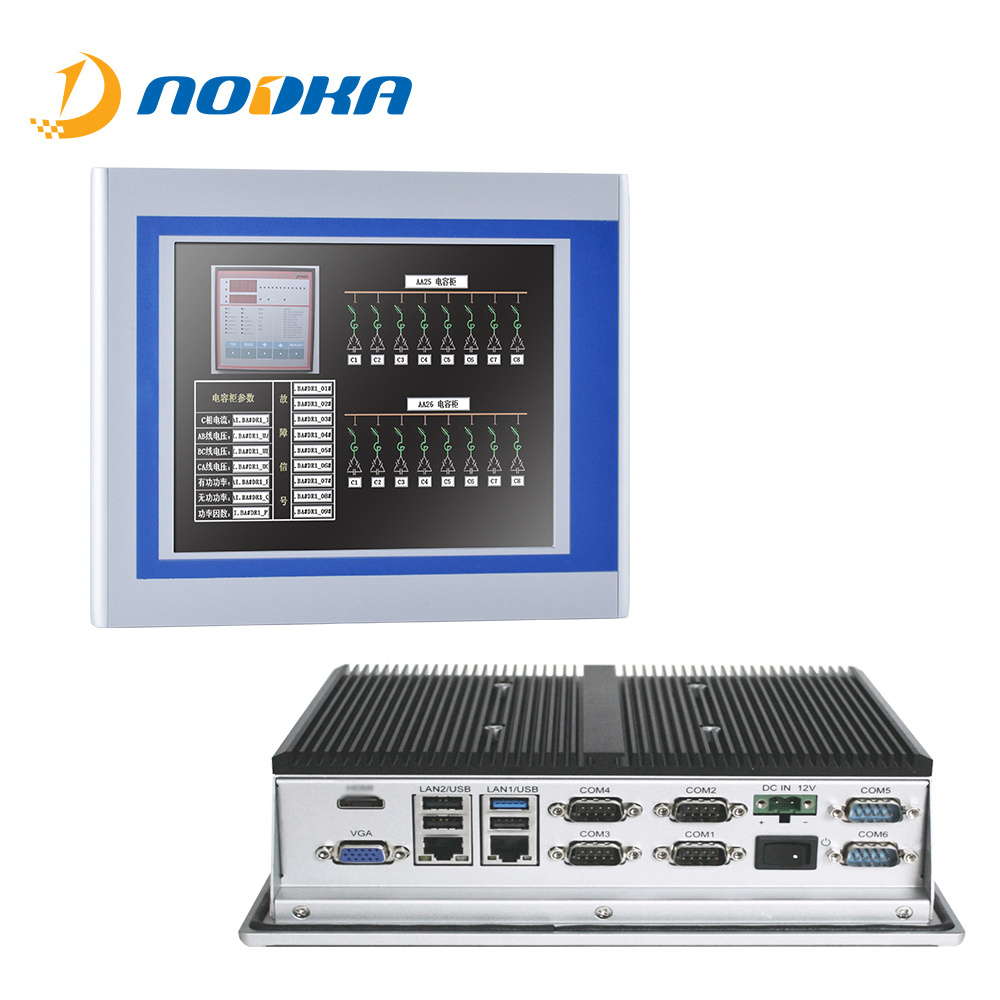

SPECIFICATIONS FOR TPC6000-A082
|
|
|
|
|||
|
Processor |
CPU
|
Bay Trial J1900/ATOM E3845
|
|
|||
|
|
Base Frequency
|
Quad core 2GHz/Quad core 1.91GHz
|
|
|||
|
|
L2 Cache
|
2MB
|
|
|||
|
|
Chipset
|
Integrated PCH-LP
|
|
|||
|
|
Memory
|
1 x 204-pin SODIMM DDR3L-1333MHz support up to 8GB
|
|
|||
|
|
Storage
|
1 x 2.5" SATA bay + 1 x mSATA
|
|
|||
|
I/O |
LAN
|
2 x Realteck RTL8111F 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection
|
|
|||
|
|
Audio
|
Realtek ACL662 Audio controller
|
|
|||
|
|
USB
|
1 x USB3.0/2.0/1.1, 3 x USB2.0/1.1
|
|
|||
|
|
COM
|
2 x RS232/RS485 with surge protection,RS485 support automatic flow control
|
|
|||
|
|
Expansion slot
|
1 x Mini-PCIe slot, extensible 3G,WIFI wireless card
|
|
|||
|
|
Real I/O
|
VGA / HD-MI / 2 x GLAN / 4 x USB / 6 x COM
|
|
|||
|
Physical |
Dimensions
|
236mm x 188mm x 69mm(9.29" x 7.40" x 2.72")
|
|
|||
|
|
Cut Size
|
219mm x 171mm(8.62 x 6.73)
|
|
|||
|
|
NW
|
2.4kg (5.29lb)
|
|
|||
|
OS
|
Support
|
Win7, Win7, Win8, Win10, Ubuntu
|
|
|||
|
Power |
Input voltage
|
DC 12V,support reverse polarity protection, +9~+30V (Option)
|
|
|||
|
|
Maximum Power
Dissipation |
33W
|
|
|||
|
LCD |
LCD Size
|
8"SVGA TFT
|
|
|||
|
|
Resolution
|
800x 600
|
|
|||
|
|
Colors
|
16.7MB
|
|
|||
|
|
Active Area
|
162mm x 121.5mm(6.38" x 4.78")
|
|
|||
|
|
Backlight
|
LED
|
|
|||
|
|
MTBF
|
30000hrs
|
|
|||
|
|
Pixel Pitch(H x V)
|
0.2025x 0.2025
|
|
|||
|
|
Luminance
|
350cd/m2
|
|
|||
|
|
Contrast Ratio
|
500:1
|
|
|||
|
|
Viewing Angle
|
(L) 70/ (R)70/ (T)50 / (B)70
|
|
|||
|
Touch Screen |
Type
|
Resistive touch screen
|
|
|||
|
|
Resolution
|
4096 x 4096
|
|
|||
|
|
Transmittance
|
>75%
|
|
|||
|
|
Controller interface
|
USB
|
|
|||
|
|
Driver Support
|
Win7, Win 8, Win 10, Linux
|
|
|||
|
|
Response Time
|
< 5ms
|
|
|||
|
|
Surface Hardness
|
Mohs' Number 3H
|
|
|||
|
|
Click life
|
250g / 35,000,000 times
|
|
|||
|
|
Draw life
|
250g / 5,000,000 times
|
|
|||
|
Environmental |
Work Temperature
|
-20 ~ 60°C (-4~140°F)
|
|
|||
|
|
Storage Temperature
|
-30 ~ 80°C (-22 ~ 176°F)
|
|
|||
|
|
Relative humidity
|
5~95% (Non condensation)
|
|
|||
|
|
Shake: SSD applied
|
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
|
|
|||
|
|
Shock: SSD applied
|
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
|
|
|||
|
|
EMC
|
CE/FCC Class A
|
|
|||
|
|
Water-proof
|
Front panel IP65
|
|
|||
Nodka was founded in 2001 in Shanghai, after 16 years development, Nodka becomes a leading Chinese industrial solution manufacturer, and has Mainboard (R&D) center in Shenzhen, and precision sheet metal machinery machining center in Suzhou.
With branch offices in 14 major domestic cities in China and 1 European sales and service center in the Netherlands.
Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Screen Monitor
Industrial computer (Mini PC)
OEM and ODM service
Vodka Factory located in Suzhou city, about 5000 sq.m.
This is a outward bound in 2017, more and more people will join us.
5 production lines and 1 OEM production line
Own precision machinery factory, it can shorten delivery time
City:
Nuremberg
Country:
Germany
Main and New launched:
(1)Panel PC based on J1900
(2)3rd generation Panel PC: TPC6000-6 series
(3)Touch Monitor
(4)Embedded Computer(eBOX-3230,eBOX-3622)
City:
Nuremberg
Country:
Germany
Main and New launched:
(1)Panel PC based on Skylake-U
(2)Embedded PC based on Skylake-U
(3)Capacitive Touch Screen Monitor
City:
Nuremberg
Country:
Germany
Main and New launched:
(1)2nd Industrial Operation Panel
(2)AgilePAC Open Controller
(3)Panel PC based on Skylake-U
(4)Embedded Computer(eBOX-3560,eBOX-3000,eBOX-3310)
(5)Touch Monitor and Tablet PC
City:
Nuremberg
Country:
Germany
Main and New launched:
(1)Industrial Operation Panel
(2)AgilePAC Open Controller
(3)Panel PC based on Skylake-U
(4)Embedded PC(eBOX-3560,eBOX-3000,eBOX-3310,eBOX-3320)
(5)Touch Monitor
* ODM and customized service.
* China Factory.
* Full Design.
* Training how to instal the machine, training how to use the machine.
* Overseas distributor network and European Service Center in the Netherlands.
|
Packaging Tray
|
|
|
|
Size
|
100 (L) * 120 (W) * 200 (H)
|
|
|
Packaging Details
|
International Express：Carton
By air: Carton
By sea: Tray
|
|
