Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Max. Table Load(kg):
-
0
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product 2024
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
480 r.p.m
-
Spindle Motor Power(kW):
-
0.25
-
Production Capacity:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
500x490x1270
-
Weight (T):
-
0.85 T
-
Color:
-
Blue
-
Keyword:
-
Boring Bar Machine
-
Precision:
-
High Precision Floor
-
Name:
-

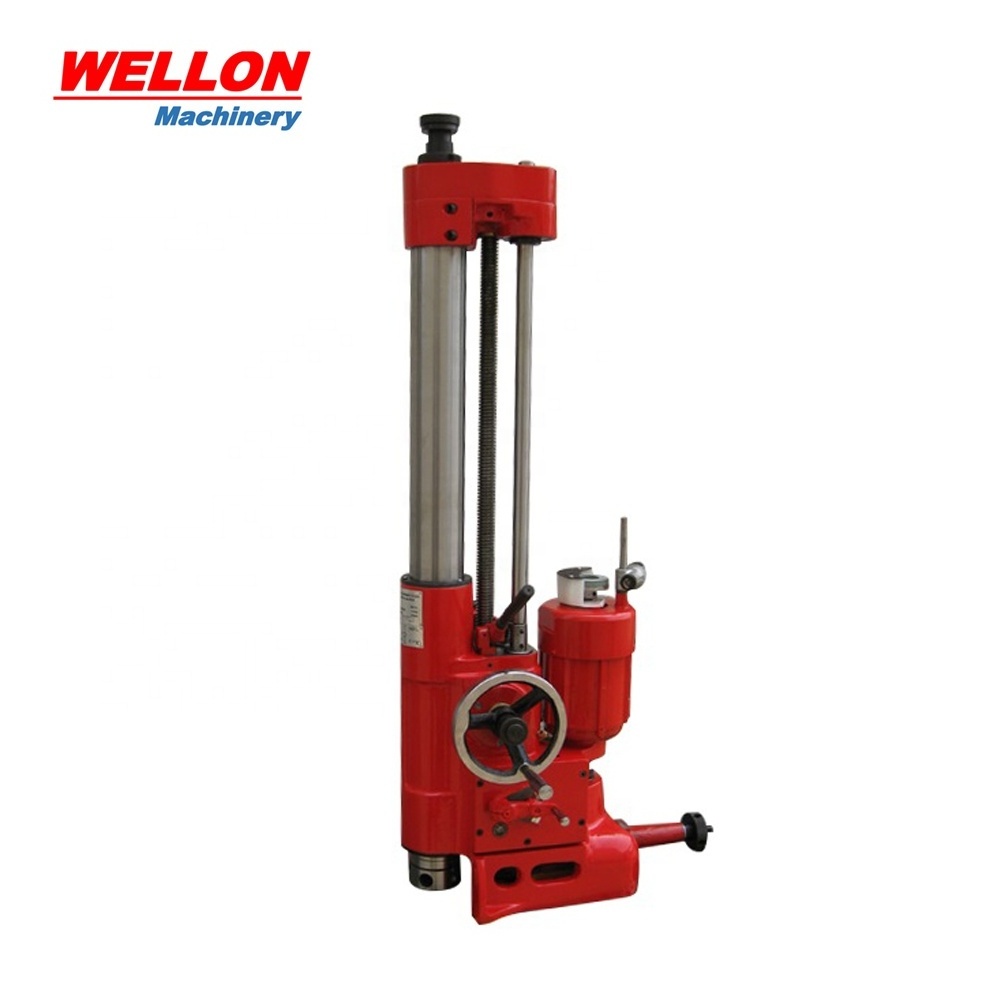

Mobile Boring Machine
-
Functions:
-
Broing
-
Usage:
-
Reboring Automobile Cylinders
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Max. Table Load(kg):
-
0
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product 2024
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
480 r.p.m
-
Spindle Motor Power(kW):
-
0.25
-
Production Capacity:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
500x490x1270
-
Weight (T):
-
0.85 T
-
Color:
-
Blue
-
Keyword:
-
Boring Bar Machine
-
Precision:
-
High Precision Floor
-
Name:
-
Mobile Boring Machine
-
Functions:
-
Broing
-
Usage:
-
Reboring Automobile Cylinders
Features:
1. The boring machine is mainly used for re - boring engine cylinders of automobiles motor cycles and tractors.
2. Reliable performance, widely use, processing accuracy high productivity.
3. Easy and flexible operation.
4. Good rigidity, amount of cutting.
Technical Parameter :
|
Model |
T8014A |
T8016A |
|
|
Boring diameter |
Φ65-Φ140 mm |
Φ80-Φ165 mm |
|
|
Max. boring depth |
300 mm |
400 mm |
|
|
Spindle speed |
250;380 r/min |
200;300 r/min |
|
|
Spindle feed |
0.11 mm / r |
0.12 mm / r |
|
|
Spindle rapid reset |
636 mm / min |
780 mm / min |
|
|
Motor |
Voltage |
220/380 V |
220/380 V |
|
Power |
0.25/0.37 Kw |
0.25/0.37 Kw |
|
|
Speed |
1440 r/min |
1440 r/min |
|
|
Overall dimensions |
320×330×850 mm |
360×345×1100 mm |
|
|
Packing dimensions |
540×470×1030 mm |
62 Kg |
|
|
Weight |
500×490×1270 mm |
85 Kg |
|
