Factory price 3D Dynamic co2 laser marking machine co2 3d galvo laser marking cutting machine

Factory price 3D Dynamic co2 laser marking machine co2 3d galvo laser marking cutting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥10 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: EZ CAD

Place of Origin:: Shandong, China

Brand Name:: RECI

Weight (KG):: 400 KG

Product name:: 3D Dynamic CO2 Laser Marking Machine

Laser Power:: 80W/100W/130W(optional)

Laser source:: CO2 glass laser tube with coaxial red light

Applicable Material:: Non-metal Materials

Machine type:: C02 Laser Machine

Marking Speed:: 0-7000mm/s

Working area:: 600x600mm(OPTIONAL)

Laser wavelength:: 1064nm

Certification:: ISO Ce

Cooling system:: WATER COOLING

Quick Details

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, PLT, DXF, BMP, LAS, DXP

Laser Type:: CO2

Cooling Mode:: Air Cooling

Control Software:: EZ CAD

Place of Origin:: Shandong, China

Brand Name:: RECI

Weight (KG):: 400 KG

Product name:: 3D Dynamic CO2 Laser Marking Machine

Laser Power:: 80W/100W/130W(optional)

Laser source:: CO2 glass laser tube with coaxial red light

Applicable Material:: Non-metal Materials

Machine type:: C02 Laser Machine

Marking Speed:: 0-7000mm/s

Working area:: 600x600mm(OPTIONAL)

Laser wavelength:: 1064nm

Certification:: ISO Ce

Cooling system:: WATER COOLING

Product Overview

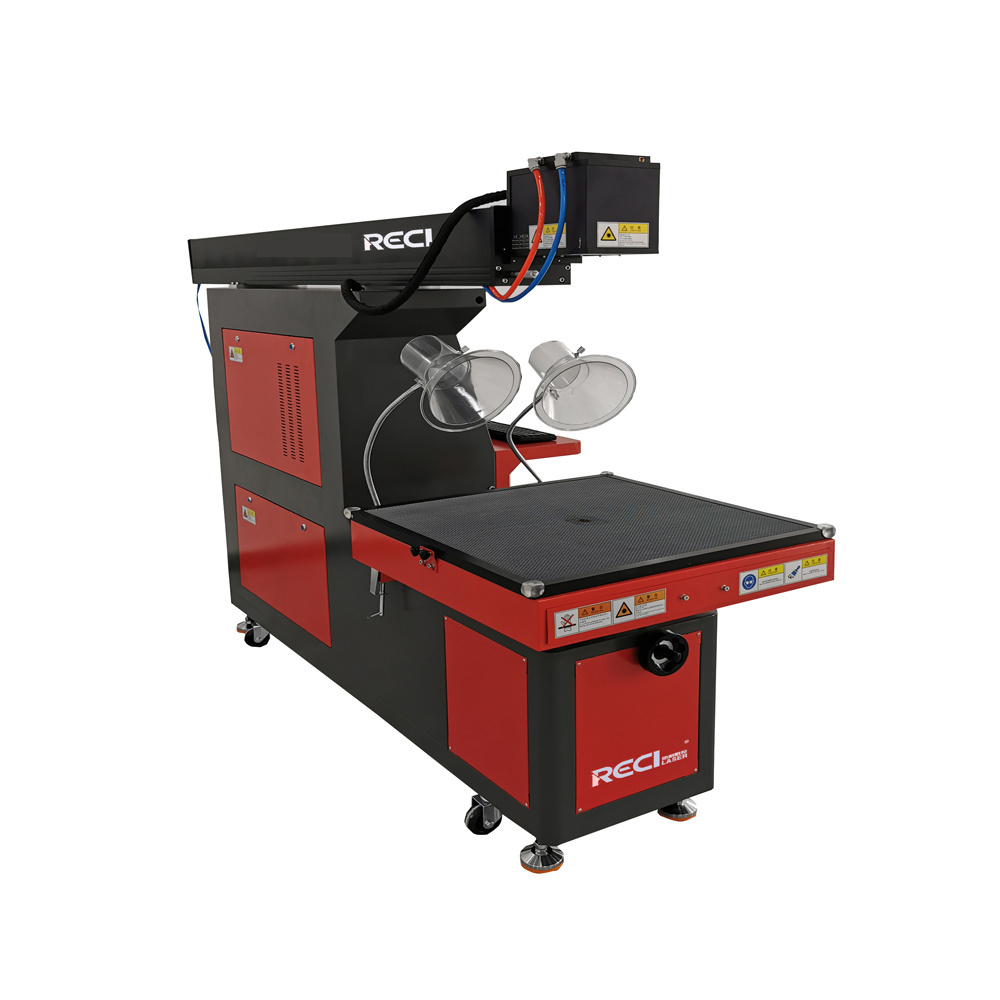

Factory price 3D Dynamic co2 laser marking machine co2 3d galvo laser marking cutting machine

Large format 3D dynamic focus CO2 laser marking machine equipped with Reci CO2 glass tube laser source, suitable for marking wood, leather, cloth and other non-metallic materials.T he 3D Dynamic Laser Machine is excellent in the aspects of algorithm optimization, high speed of marking and cutting,and other powerful functions. It is specially designed for the laser scanning with tiny light spot, large working range and high flexibility.

FEATURES AT A GLANCE

1.High efficiency cutting and marking function;
2.Powerful Reci CO2 glass tube with fine laser beam;

3. characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming
ability.

4.D ynamic galvanometer system, fast marking speed, bigger working range.

5. 3D marking solves the traditional laser marking problems on stepped surfaces, slopes, cylinders, cones and other targets,
making the distortion of fonts a thing of the past.

Front elevation

Left elevation

S ide elevation

PRODUCT SPECIFICATIONS

Machine models	RC-6060
Laser Power	80w 100w 130w 150w
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, DXP
Laser Type	CO2
Marking range	600*600 mm
Condition	New
Cooling Mode	Water Cooling
laser wavelength	10.6um
Supply Voltage	220V/50HZ/10A
Pulse width, (FWHM)	100 n
Marking Speed	0-7000mm/s
Control Systerm	EZCARD

PRODUCT CONFIGURATION

RECI Laser Tube

High quality RECI laser tube can ensure superior machine quality

600*600 large format

large format c an improve production efficiency and is widely used in various non-metallic

3D dynamic focus galvanometer

The resolution is up to 12pRAD, the repeatability is up to 8urad, the details determine the accuracy

All-in-one computer

Get rid of the shortcomings of the external computer, easy to operate, also eliminate the need for external wiring, more concise and easy to operate

S&A water cooler
