Clamping Force
|
55T
|
|
Plastic Type
|
Thermoplastic
|
|
Machine Type
|

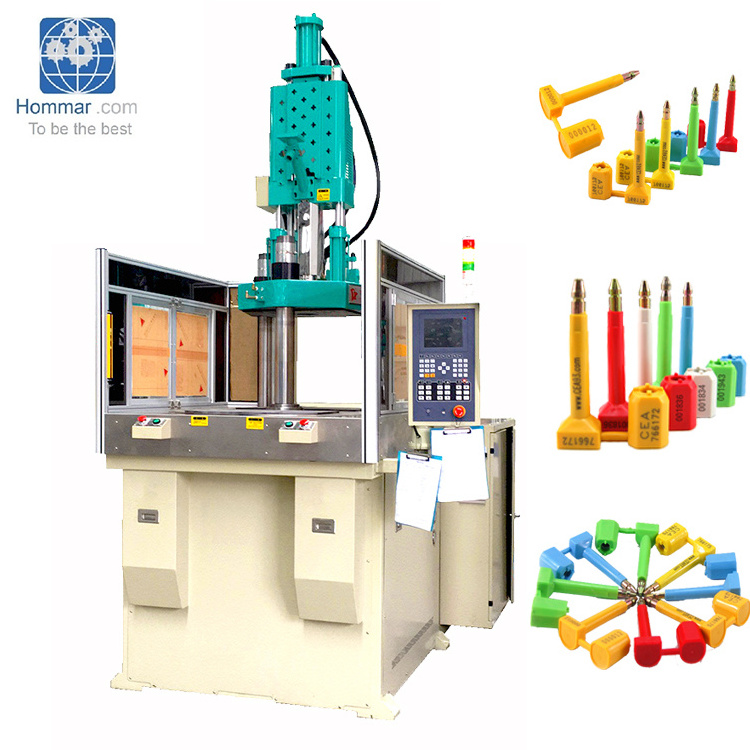

Vertical Plastic Injection Molding Machine
|
|
Screw Diameter
|
28-32mm
|
|
Screw Stroke
|
140mm
|
|
Machine Dimesions
|
2240mm*1520mm*2455mm
|
|
|
Mold
|
Unit
|
HM-V55R2
|
|
注射装置
Injection Unit
|
Screw Diameter
|
mm
|
28-32
|
|
|
Screw Stroke
|
mm
|
140
|
|
|
Theoretical Shot Volume
|
cm³
|
86-112
|
|
|
Injection Molding Quality
|
g
|
80-103
|
|
|
|
oz
|
2.8-3.6
|
|
|
Max.Injection Pressure
|
Mpa (kgf/cm²)
|
212-162(2169-1661)
|
|
|
Injection Rate
|
cm³/s
|
51-67
|
|
|
Screw Speed
|
r.p.m
|
0-190
|
|
合模装置
Mold Clamping Unit
|
Clamping Force
|
KN(tf)
|
539(55)
|
|
|
Clamping Stork
|
mm
|
200
|
|
|
Min.Mold Thickness
|
mm
|
180(260)
|
|
|
Max.Open Distance
|
mm
|
380(460)
|
|
|
Diameter of rotary table
|
mm
|
880
|
|
|
Max.Size of Mold
|
mm
|
320*320
|
|
|
Plate Size
|
mm
|
\
|
|
|
Distance of Product Out of Mold
|
mm
|
70
|
|
|
Ejector Force
|
KN(tf)
|
21.5(2.2)
|
|
|
QTY of Ejector
|
pcs
|
3
|
|
其他
General
|
System Pressure
|
Mpa(kgf/cm²)
|
13.7(140)
|
|
|
Motor Power
|
kw(HP)
|
7.5(10)
|
|
|
Electric Power
|
kw
|
5.5
|
|
|
Temperature Stage
|
|
3+1
|
|
|
Mechanine Dimesions
|
mm
|
2240*1520*2455
|
|
|
Machine Weight
|
tf
|
3.2
|
|
PLC
|
|
|
Electronic Parts
|
|
|||
|
Brand: MIRLE
|
|
|
Brand: Fuji/Schineider/Fotec
|
|
|||
|
Original: CHINA
|
|
|
Original: Japan/France/Taiwan,China
|
|
|||
|
Features: High Precise Control,High Sensitive Response ,TFT Color Display,Language:Portugal,English,Chinese
|
|
|
Features: Stable High sensitive
|
|
|||
|
Position Transducer
|
|
|
Hydraulic Valve
|
|
|||
|
Brand: Gefran
|
|
|
Brand: Yuken
|
|
|||
|
Original: Italy
|
|
|
Original: Japan
|
|
|||
|
Features: High Precise Control
|
|
|
Features: High sensitive response
|
|
|||
