Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-B48-NN1-250E, DV-16-B48-NN1-250E
-
Max. Current:
-
20A
-
Operating Temperature:
-
40T125
-
Protection Level:
-
IP40
-
Item:
-
DV16 micro switch
-
Rating:
-
20A 250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
48 lever
-
Terminal Type:
-
solder terminal
-
Circuit:
-
DPDT
-
Operating Force:
-
250±50gf
-
Approval:
-
UL, KC, ENEC, CQC, CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-B48-NN1-250E, DV-16-B48-NN1-250E
-
Max. Current:
-
20A
-
Operating Temperature:
-
40T125
-
Protection Level:
-
IP40
-
Item:
-
DV16 micro switch
-
Rating:
-
20A 250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
48 lever
-
Terminal Type:
-
solder terminal
-
Circuit:
-
DPDT
-
Operating Force:
-
250±50gf
-
Approval:
-
UL, KC, ENEC, CQC, CCC

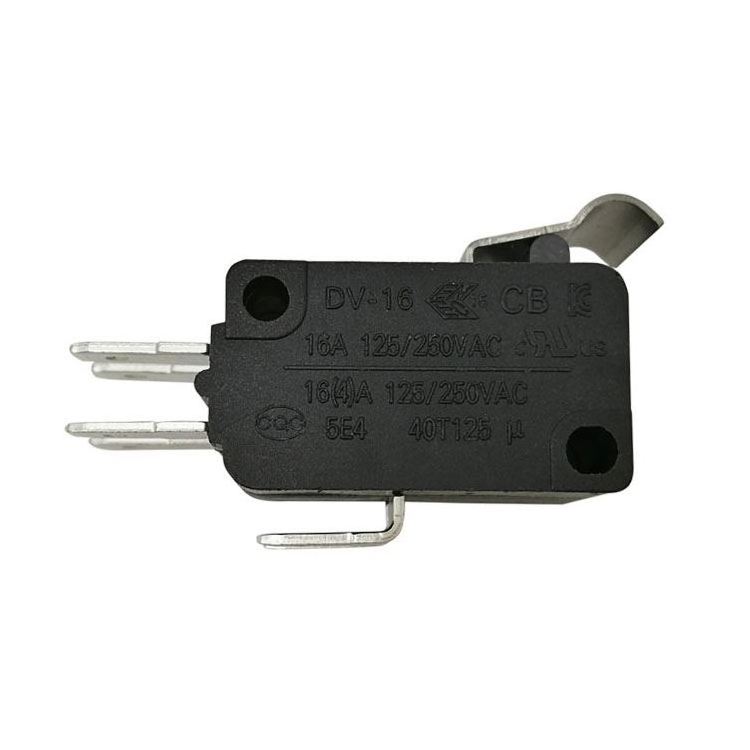

Wholesale double action pole 16a 250v dpdt micro switch
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC15, CQC,CB, SGS certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
|
Item |
DV16 double pole micro switch |
|
|
Model Number |
DV-16-B48-NN1-250E |
|
|
Rating |
20A 250VAC |
|
|
Temperature Range |
-40°C~+125°C |
|
|
IP Code |
IP40 |
|
|
Dimension |
27.9*18.4*20mm |
|
|
Material of Case & Knob |
PBT |
|
|
Material of Contacts |
AgNi Alloy |
|
|
Material of Terminal |
C2680 | |
|
Life |
Electrical Service Life |
50,000Cycles |
|
Mechanical Service Life |
1,000,000Cycles |
|
|
Approval |
UL, CUL, ENEC, CQC,CCC |
|
