Quick Details
-
Voltage:
-
220V/380V or Customized
-
Dimension(L*W*H):
-
2100*865*900mm
-
Weight:
-
400 KG
-
Product Name:
-
100-500Tph Flotation Cell Machine
-
Capacity:
-
0.05-0.16m3/min
-
Diameter of impeller (mm):
-
200
-
Impeller rotation (r/min):
-
600
-
Price:
-
Negotiation before order
-
Keywords:
-
Mining Machinery,Copper ore Flotation Separator
-
MOQ:
-
1Set
-
Advantage:
-
High Efficiency Low Energy,Easy Operation,Long working life
-
Main Products:
-
Jaw crusher,Hammer crusher,Vibrating screen,Ball mill,Shaking table
-
Factory visit:
-
Welcomed Warmly
Quick Details
-
Production Capacity:
-
95%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V/380V or Customized
-
Dimension(L*W*H):
-
2100*865*900mm
-
Weight:
-
400 KG
-
Product Name:
-
100-500Tph Flotation Cell Machine
-
Capacity:
-
0.05-0.16m3/min
-
Diameter of impeller (mm):
-
200
-
Impeller rotation (r/min):
-
600
-
Price:
-
Negotiation before order
-
Keywords:
-
Mining Machinery,Copper ore Flotation Separator
-
MOQ:
-
1Set
-
Advantage:
-
High Efficiency Low Energy,Easy Operation,Long working life
-
Main Products:
-
Jaw crusher,Hammer crusher,Vibrating screen,Ball mill,Shaking table
-
Factory visit:
-
Welcomed Warmly

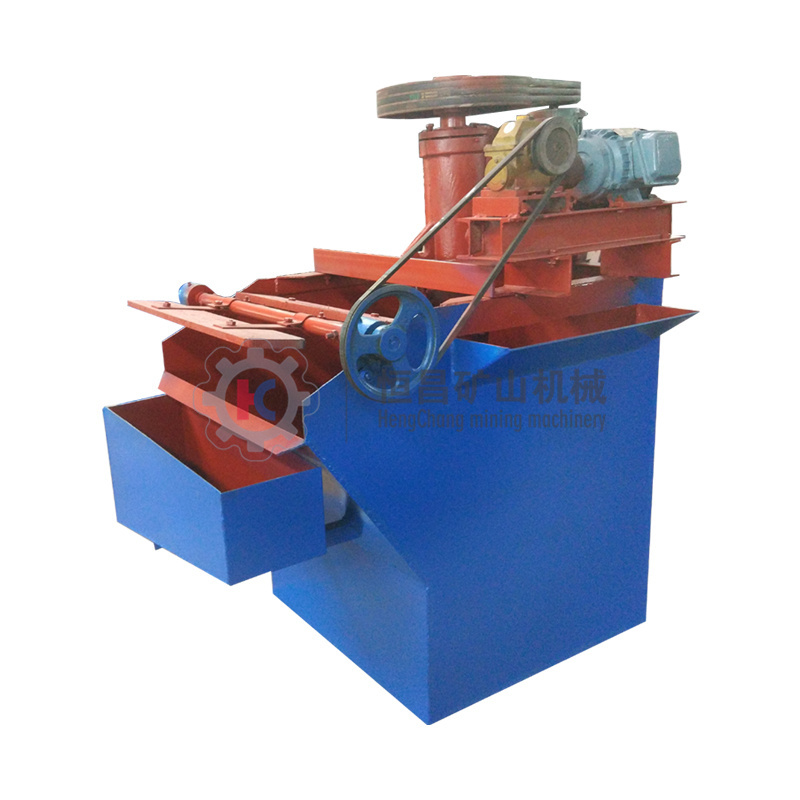

After-sale Service XJK SF Series Mining Equipment 100-500Tph Flotation Cell Machine Used In Copper Zinc Lead Nickel Lithium Ore
Flotation Cell Machine Introduction
XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body. XJK-3A,4A,5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the basic cell and combining some cells for the roughing, scavenging and cleaning concentration.
Flotation Cell Machine Working Principle
The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.When the flotation machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.
Flotation Cell Machine
Widely
Applications
It
is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous
metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.
|
Type
|
Specification model
|
Effective cubage (m³)
|
Processing capcity (m³/min)
|
Main shaft loam board
|
|
|
|
|||
|
|
|
|
|
Power (kw)
|
Rotate speed (r/min)
|
Rotate speed (r/min)
|
Power (kw)
|
|||
|
XJK Series
|
XJK-0.35
|
0.35
|
0.18-0.4
|
1.5
|
483
|
25
|
1.1
|
|||
|
|
XJK-0.62
|
0.62
|
0.3-0.9
|
3
|
400
|
25
|
1.1
|
|||
|
|
XJK-1.1
|
1.1
|
0.6-1.6
|
5.5
|
330
|
25
|
1.1
|
|||
|
|
XJK-2.8
|
2.8
|
1.5-3.5
|
11
|
280
|
25
|
1.1
|
|||
|
|
XJK-5.8
|
5.8
|
1.1-2.9
|
22
|
240
|
25
|
1.5
|
|||
|
SF Series
|
SF-0.37
|
0.37
|
0.2-0.4
|
1.5
|
386
|
25
|
1.1
|
|||
|
|
SF-0.7
|
0.7
|
0.3-0.9
|
3
|
400
|
25
|
1.1
|
|||
|
|
SF-1.2
|
1.2
|
0.6-1.6
|
5.5
|
330
|
25
|
1.1
|
|||
|
|
SF-2.8
|
2.8
|
1.5-3.5
|
11
|
268
|
25
|
1.1
|
|||
|
|
SF-4
|
4
|
2.0-4
|
15
|
220
|
25
|
1.5
|
|||
|
|
SF-8
|
8
|
4.0-8
|
30
|
191
|
25
|
1.5
|
|||
|
|
SF-16
|
16
|
5.0-16
|
30
|
191
|
25
|
1.5
|
|||
|
|
SF-20
|
20
|
5.0-20
|
45
|
186
|
25
|
1.5
|
|||
