Quick Details
-
Material:
-
PP
-
Weight:
-
10
-
Size:
-
10/20/30/40, 5''/10''/20''
-
Power:
-
1
-
Weight (KG):
-
1 kg
-
material:
-
Mineral/coconut
-
Application:
-
Drinking Water/platiing liquid
-
Usage:
-
Household Pre-Filtration
-
Function:
-
remove smell ,chlorine etc.
-
Type:
-
Solid carbon block filter
-
Certification:
-
ISO9001
-
Processing:
-
Pre-treatment
-
Feature:
-
Eco-friendly
Quick Details
-
Core Components:
-
CARTRIDGE FILTER
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MURFILTEC
-
Material:
-
PP
-
Weight:
-
10
-
Size:
-
10/20/30/40, 5''/10''/20''
-
Power:
-
1
-
Weight (KG):
-
1 kg
-
material:
-
Mineral/coconut
-
Application:
-
Drinking Water/platiing liquid
-
Usage:
-
Household Pre-Filtration
-
Function:
-
remove smell ,chlorine etc.
-
Type:
-
Solid carbon block filter
-
Certification:
-
ISO9001
-
Processing:
-
Pre-treatment
-
Feature:
-
Eco-friendly

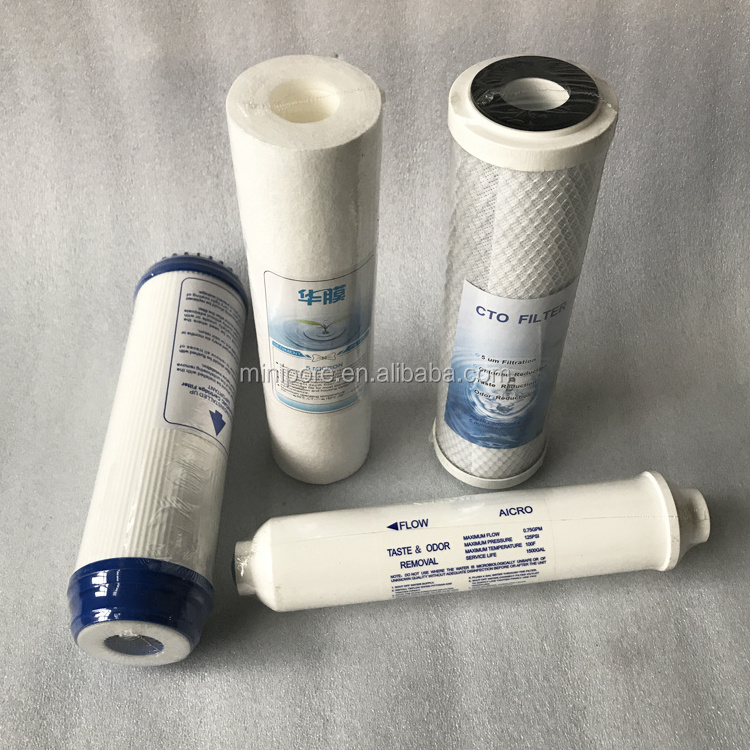

CTO Activated Carbon Block Filter Cartridge
Features & Benefits
A. High absorbency
B. Reduce chlorine,bad taste and odors effectively
C. Low pressure drop
D. No carbon fines release
Applications
A. Drinking water
B. Plating liquid
C. Food insdutry
D. Industry water
Specifications
A. Filter media:Mineral AC & Coconut shell AC
B. End cap:PP
C. Gasket:Buna-N
D. Netting:polyethylene
E. Outer diameter:70mm,115mm
F. Inner diameter:28mm
G. Maximum operating temperature:52℃
H. Maximum differential pressure:7 BAR at 20℃
Ordering Guide
Model CTO Material | Outer Diameter | Micron Rating | Length Inch |
CTO - M
CTO - C
|
S - 70mm B - 115mm |
05:5μm 10:10μm ...... ...... |
5:5" 10:10" 20:20" 30:30" 40:40" |
GAC Granular Activated Carbon Filter Cartridge
Features & Benefits
A. Designed to fill with granular activated carbon media
B. Reduce chlorine,bad taste and odors high effectively
C. General reduction of bacteria from drinking water
D. Engineered to allow water to enter on end and pass through the entire bed of carbon before exiting through the other end
E. An internal expansion pad added to minimize channeling or bypass
F. A nominal 20 micron PP spun post filter and special sponge is incorporated to reduce carbon fines and other suspended particles
Instruction
Applications
A. Drinking water
Specifications
A. Filter media:Mineral GAC & Coconut shell GAC
B. End cap/outer casing:Polystyrene
C. Expansion pad:Polypropylene
D. Post filter incorporated:20 micron PP spun or sponge
E. Gasket:Buna-N,Santoprene
F. Netting:Polyethylene
G. Outer diameter:70mm,115mm
H. Inner diameter:28mm
I. Maximum operating temperature:52℃;
Ordering Guide
Model GAC Style | Model GAC Material | Outer Diameter | Length Inch |
GAC - 1 GAC - 2 GAC - 3 GAC - BB |
M - Mineral AC C - Coconut Shell AC |
S - 70mm B - 115mm |
5:5" 10:10" 20:20" |
