3 IN 1 Multifunction 1kw 1.5w 2kw Handheld Fiber Laser Welding Cutting Cleaning Machine 3000W CNC Laser Welders

3 IN 1 Multifunction 1kw 1.5w 2kw Handheld Fiber Laser Welding Cutting Cleaning Machine 3000W CNC Laser Welders

FOB Reference Price: Get Latest Price

≥1 Sets

US $3300

≥2 Sets

US $3200

≥20 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HUAXIA

Single Pulse Energy:: 96J/150J

Pulse Width:: 0.1~20ms

Wavelength:: 1064nm

Focal Spot Diameter:: 0.2 ~ 2.0mm

Dimensions:: 1000*720*1450mm

Weight (KG):: 200 KG

Marketing Type:: New Product 2023

Product name:: 3 in 1 Handheld Laser Welding Machine

Laser power:: 1000W 1500W 2000W 3000W Optional

Function:: Metal Part Laser Welding

Application material:: Aluminum Stainless Steel Carbon Steel

Advantage:: Eeasy Operate

Welding Width:: 0-8mm

Laser source:: Raycus Max RECI Optional

Cooling System:: Water Chiller Inside

Voltage:: 220V 1Ph 50Hz/60Hz (customeized)

Color:: Machine Case Support OEM service

Quick Details

Max. Output Power:: 3000W

Use:: Metal Laser Welding

Laser Source Brand:: RAYCUS / Max

Place of Origin:: Shandong, China

Brand Name:: HUAXIA

Single Pulse Energy:: 96J/150J

Pulse Width:: 0.1~20ms

Wavelength:: 1064nm

Focal Spot Diameter:: 0.2 ~ 2.0mm

Dimensions:: 1000*720*1450mm

Weight (KG):: 200 KG

Marketing Type:: New Product 2023

Product name:: 3 in 1 Handheld Laser Welding Machine

Laser power:: 1000W 1500W 2000W 3000W Optional

Function:: Metal Part Laser Welding

Application material:: Aluminum Stainless Steel Carbon Steel

Advantage:: Eeasy Operate

Welding Width:: 0-8mm

Laser source:: Raycus Max RECI Optional

Cooling System:: Water Chiller Inside

Voltage:: 220V 1Ph 50Hz/60Hz (customeized)

Color:: Machine Case Support OEM service

_{3 IN 1 METAL LASER WELDING MACHINE}

Details and advantages

Main parameter

Model	HXW-1000	HXW-1500	HXW-2000	HXW-3000
Laser Power	1000-3000W
Length of gun thread	10m/15m/20m

Product introduction

Stable performance

High efficiency

Your first choice

This equipment is suitable for welding, derusting and cutting of stainless steel, aluminum plate, carbon steel, alloy steel and other metal materials. It is widely used in steel plate blanking, chassis and cabinet, sheet metal structure, metal processing, electrical switch cabinet manufacturing, textile machinery, grain mechanization, kitchen appliances and stoves, lamps, automobiles, metal crafts, saw blades, electrical parts, aerospace, hardware, knives and measuring tools and other industries. Welding in stainless steel, carbon steel, aluminum and other metal materials can perfectly replace the traditional electric welding process, with simple operation, beautiful weld and fast welding speed. The workpiece can be welded at any angle.

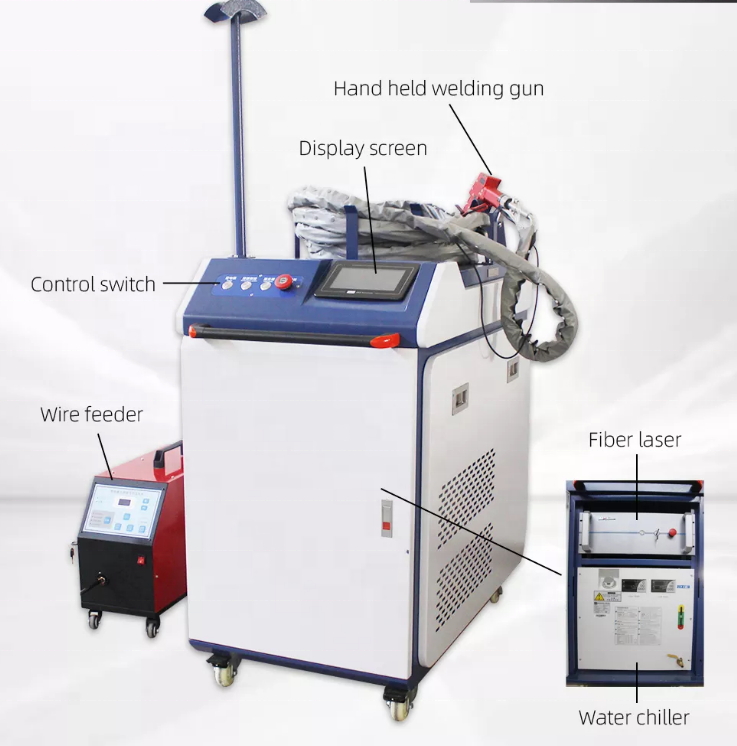

Product Configuration

Equipment advantages

Compact body, efficient welding, small welding heat affected area, will not lead to deformation and blackening. Large welding depth, sufficient melting and firm welding

Numerical control system

The display screen is easy to operate without programming.

cooling-water machine

Double temperature and double control, circulating water circuit, can quickly cool the internal pipeline of the welding joint, and cool the laser generator at the same time.

Welded joint

The operation is simple, the weld is smooth and beautiful, secondary processing is avoided, time and cost are saved, the welding workpiece has no deformation, no welding scar, the welding point is firm, and the welding speed is fast.
