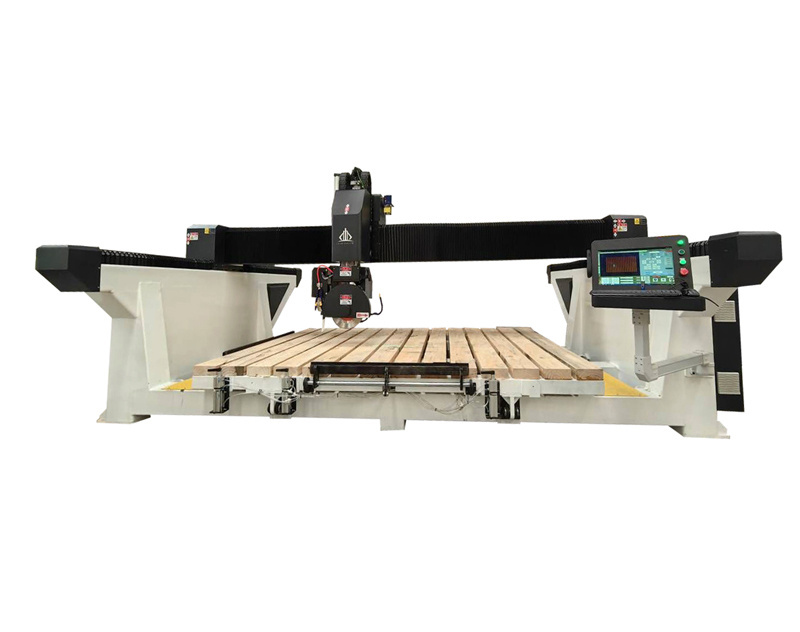

Full automatic Professional Stone Granite Marble Cutting Machinery 5 Axis Automatic CNC Bridge Saw Marble Stone Cutting Machine

Full automatic Professional Stone Granite Marble Cutting Machinery 5 Axis Automatic CNC Bridge Saw Marble Stone Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9900

≥3 Sets

US $9600

≥5 Sets

US $8500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 4000mm/min

Place of Origin:: Shandong, China

Brand Name:: Guandiao CNC

Voltage:: 380/220v

Dimension(L*W*H):: 3200*2000mm

Weight:: 3000 kg

Marketing Type:: New Product 2023

Product name:: 5 Axis Bridge saw marble cutting machine

Model Number:: GD-3220

Working size:: 3200X2000mm

Spindle motor power:: 11kw

Saw blade diameter:: 350-450mm

Rotate of working platform:: 0-80degree

A Axis:: 0-45degree

Max cutting thickness:: 80mm

Motors:: Dongling 1500w servo motors

Reducer:: Japan Shimpo

Quick Details

Type:: Bridge saw stone cutting machine

Power:: 15

Cutting thickness (max):: 80mm

Production Capacity:: 4000mm/min

Place of Origin:: Shandong, China

Brand Name:: Guandiao CNC

Voltage:: 380/220v

Dimension(L*W*H):: 3200*2000mm

Weight:: 3000 kg

Marketing Type:: New Product 2023

Product name:: 5 Axis Bridge saw marble cutting machine

Model Number:: GD-3220

Working size:: 3200X2000mm

Spindle motor power:: 11kw

Saw blade diameter:: 350-450mm

Rotate of working platform:: 0-80degree

A Axis:: 0-45degree

Max cutting thickness:: 80mm

Motors:: Dongling 1500w servo motors

Reducer:: Japan Shimpo

Bridge saw stone cutting machine description

(1) It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
(2) This bridge saw uses a high-precision reducer, ensuring better rotating precision of the cutting head.
(3) It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
(4) The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
(5) This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.

Specification

Model	GD-3220 5 Axis Bridge saw stone cutting machine
Working area (X*Y)	3200x2000mm
Voltage	380V,3 phase,50hz
Spindle motor power	11kw
Saw blade diameter	350-450mm with A axis support bevel 45 degree cutting
Control system	China brand professional bridge saw cutting system
Rotate of working platform	0-80°
A axis	0-45°
Max cutting thickness	80mm
Motors	Dongling 1500w servo motors and drivers
Guide rail	Imported high precision 30mm guide rail transmission
Reducer	Japan Shimpo high precision reducer
Racks	Taiwan YYC
Laser infrared probe	Install a laser infrared probe to show the cutting path.
Lubrication system	Automatic
Machine dimension	582034502300mm
Warranty	2 Years warranty, lifelong after-sale service
