Quick Details
-
Rated Working Pressure (MPa):
-
0.6-2.0
-
Motor Power (kw):
-
22-250
-
Compression Stages:
-
1st-stage 2nd-stage
-
Capacity:
-
1.7m3/min-37.7m3/min
-
Machine Type:
-
small four wheel
-
Exhaust Port Size:
-
G1,G2
-
Dimensions(mm):
-
2400*1750*2000
-
Cooling:
-
A-air Cooling W-water Cooling
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
380v/3ph/50hz
-
Rated Exhaust Volume (m3/min):
-
4.6-30
-
Rated Working Pressure (MPa):
-
0.6-2.0
-
Motor Power (kw):
-
22-250
-
Compression Stages:
-
1st-stage 2nd-stage
-
Capacity:
-
1.7m3/min-37.7m3/min
-
Machine Type:
-
small four wheel
-
Exhaust Port Size:
-
G1,G2
-
Dimensions(mm):
-
2400*1750*2000
-
Cooling:
-
A-air Cooling W-water Cooling

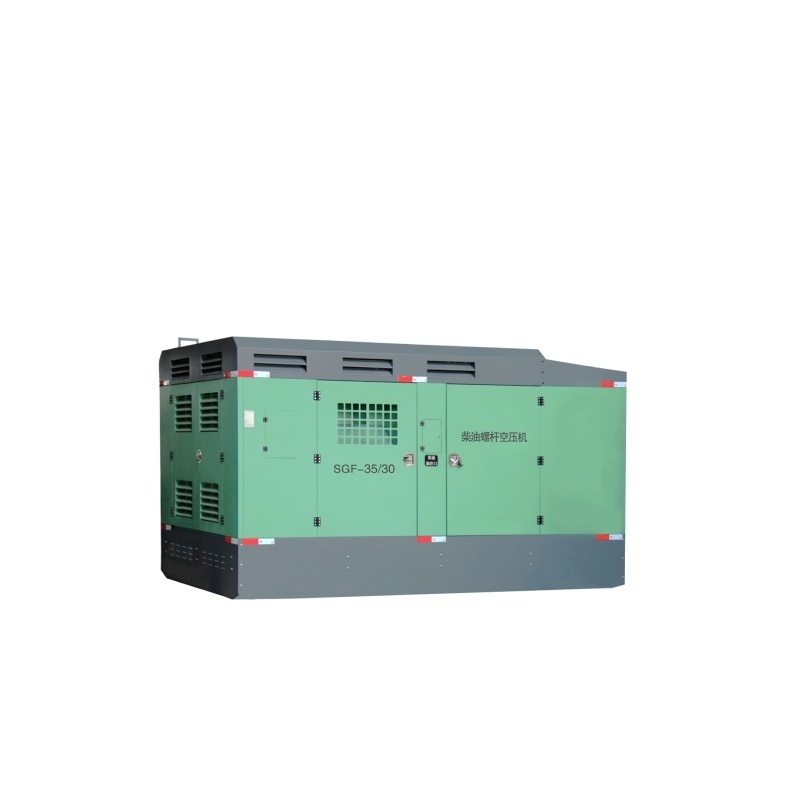

High Quality 55kw 75HP 350 cfm Diesel Driven Portable Screw Air Compressor for Sand Blasting
Products Description
The screw compressor adopts a well-known machine head, and the air volume control system ensures the stability of the machine. The diesel mobile screw compressor launched by our company uses power to minimize fuel consumption and is suitable for harsh outdoor use environments; low noise, low Vibration technology; multiple automatic alarms and shutdown protection devices; easy and quick maintenance. Products are widely used in various industries such as railways, hydropower, infrastructure, machinery, and mining.
Machine features:
1. More than 40 years of accumulated design technology, outstanding system configuration, and achieved combination;
2. The engine adopts Yuchai and Cummins brands, which is fuel-efficient, durable, has sufficient power reserve, easy maintenance, low cost and guaranteed after-sales service;
3. Designed to withstand high temperature environments, the air supply is stable and pulse-free, and there is no need to add a buffer tank;
4. Equipped with automatic shutdown and alarm system, which is easy to operate and ensures the operation of the equipment;
5. The front, rear, left and right opening and closing box design provides convenient maintenance with a spacious space.
6. The unique oil-gas separation structure and high-strength oil content fully ensure the low fuel consumption of the compressor under high-pressure operation. It is the gas source of choice for high-pressure down-the-hole drilling rigs, water well drilling rigs, coalbed methane mining, geothermal well mining and other industries.
PRODUCT DETAILS
PRODUCT SPECIFICATIONS
|
No.
|
Model
|
Rated Exhaust Volume
(m3/min) |
Rated Working Pressure
(MPa) |
Motor Power
(kw) |
Compression Stages
|
Machine Type
|
Exhaust Port Size
|
Overall Dimensions
(L×W×H) |
|
1
|
LGFY-4.6/6
|
4.6
|
0.6
|
22
|
Single-stage
|
small four wheel
|
G1
|
1600×850×1100
|
|
2
|
LGFY-5/8
|
5
|
0.8
|
22
|
Single-stage
|
small four wheel
|
G1
|
1600×850×1100
|
|
3
|
LGFY-13/8
|
13
|
0.8
|
75
|
Single-stage
|
Two-wheel
|
G1、G2
|
2200×2000×2000
|
|
4
|
LGFY-16/8
|
16
|
0.8
|
90
|
Single-stage
|
Two-wheel
|
G1、G2
|
2600×2000×2000
|
|
5
|
LGFY-15/13
|
15
|
1.3
|
110
|
Single-stage
|
Four-wheel
|
G1、G2
|
2400×1750×2000
|
|
6
|
LGFY-24/8
|
24
|
0.8
|
132
|
Single-stage
|
Four-wheel
|
G1、G2
|
2400×1750×2000
|
|
7
|
LGFY-15/17
|
15
|
1.7
|
132
|
Single-stage
|
Four-wheel
|
G1、G2
|
2400×1750×2000
|
|
8
|
LGFY-18/17
|
18
|
1.7
|
132
|
Two-stage
|
Four-wheel
|
G1、G2
|
2800×1750×2100
|
|
9
|
LGFY-20/20
|
20
|
2.0
|
185
|
Two-stage
|
Four-wheel
|
G1、G2
|
3040×2000×2200
|
|
10
|
LGFY-30/20
|
30
|
2.0
|
250
|
Two-stage
|
Four-wheel
|
G1、G2
|
3400×2000×2200
|
OUR COMPANY
Product display
CERTIFICATION
PACKAGING&SHIPPING
FAQ
Q1: Are you factory or trade company?
Q3: Will you provide some spare parts of the machines?
Q4: What about the voltage of products? Can they be customized?
Q5: Which payment term can you accept?
Q6: Can you accept OEM orders?
A1: We are factory. And we have ourselves trading company.
Q2: Warranty terms of your machine?
A2: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: What about the voltage of products? Can they be customized?
A4: Yes, of course. The voltage can be customized according to your equirement.
Q5: Which payment term can you accept?
A5: 30% T/T in advanced, 70% T/T against the B/L copy.
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.
