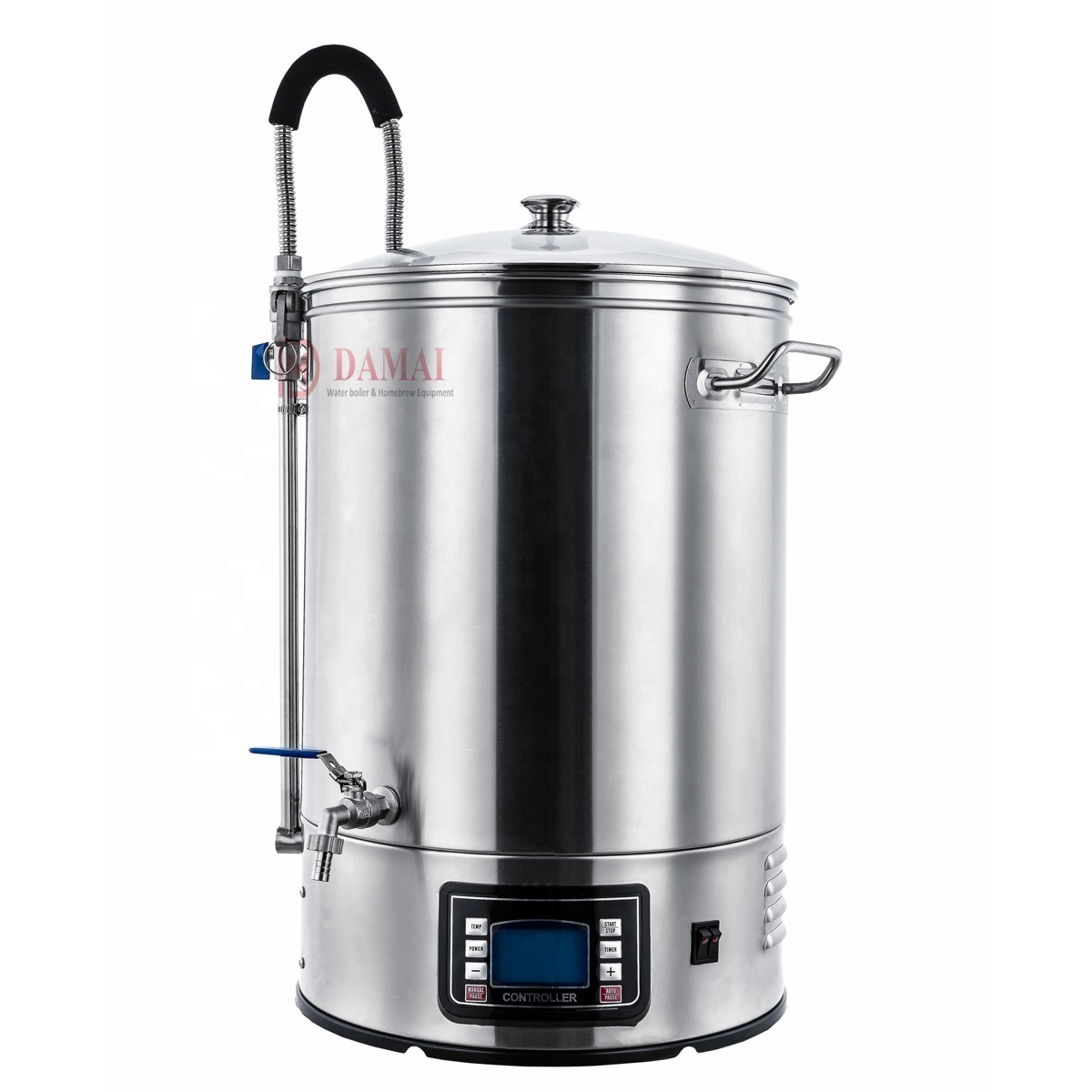

40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All
40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All

40L Homebrew,mini Brewery Equipment,micro Home Brewing Equipment in One for Craft Beer with 304 Stainless Steel Chiller All

FOB Reference Price: Get Latest Price
≥1 Pieces
US $238
≥200 Pieces
US $160
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
2500W
Dimension(L*W*H):
465*465*690
Weight:
16 KG
Marketing Type:
New Product 2022
Color:
Stainless Steel
Usage:
Mashing
Material:
304 Stainless Steel
Model Number:
DM-N40
After Warranty Service:
Spare parts
After-sales Service Provided:
Online support
Certification:
CE LFGB RoHS

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
OEM
Voltage:
220V-240V
Power:
2500W
Dimension(L*W*H):
465*465*690
Weight:
16 KG
Marketing Type:
New Product 2022
Color:
Stainless Steel
Usage:
Mashing
Material:
304 Stainless Steel
Model Number:
DM-N40
After Warranty Service:
Spare parts
After-sales Service Provided:
Online support
Certification:
CE LFGB RoHS
Detailed Description
20/30/40/50/60/70 Liters Home Brew Mash Tun

ALL IN ONE HOMEBREW SYSTEM

●A Device Custom Made For Mashing, Filtering, Washing, Boiling,Chilling
●20/30/40/50/60/70 liters capacity
Welcome OEM ODM
Customize to customer's requirements
●Piratical circulation system with magnetic drive pump, mini value to adjust flow rate.
●All water parts made for 304 stainless steel
●Shiny finish for better cleaning
●Durable quality, affordable price

Accessories comes with machine

1. Malt pipe with handle
2. Curved pipe for recirculation
3. 2pcs filter screen
4. Overflow pipe with white cap
5. Bazooka filter with clamp
6. Special promotion: buy one get one free chiller coil, hop spider, brewing paddle, whirlpool arm.

Model No.

Capacity

Power

Voltage
Maximum recommended amount of malt when brewing
DM-N20
20L FULL LINE VOLUME, FULL URN UP TO 25L
2000W
220V-240V/ 110V-120V
9KGS
DM-N30
30L FULL LINE VOLUME, FULL URN UP TO 35L

2500W

220V-240V/ 110V-120V

10KGS
DM-N40
40L FULL LINE VOLUME, FULL URN UP TO 45L
2500W
220V-240V/ 110v-120V
10KGS
DM-N50
50L FULL LINE VOLUME, FULL URN UP TO 55L

3000W

220V-240V
13KGS
DM-N60
60L FULL LINE VOLUME, FULL URN UP TO 65L
220V-240V
15KGS
DM-N70
65L FULL LINE VOLUME, FULL URN UP TO 70L
3200W
220V-240V
17KGS
Package detailed:
304ss water tank, Magnetic Drive Pump, Stainless steel circulation pipe, Temper glass cover, , Timer Setting, Power, Setting, Temperature Setting by 0.1c, Recipe Storage, Step mashing up to 9steps, Mirror finish ,Detachable malt pipe, All accessories in one brewer
A Device Custom Made For Mashing, Filtering, Washing, Boiling,Chilling
1. Polished stainless steel 304SS
2. Brew capacity 60 liters, total capacity 65 liters Dimensions: Height and diameter: 80x46cm Heating element with a capacity of 3000W, located at the bottom of the kettle, therefore avoiding caramelization
3. The heating element is adjustable from 100 W to 3000 W,in 100 W increments.
4. Temperature range from 25°C to 100°C, adjustable to 0,1°C Temperature control up to 100°C, with +-1°C
5. Deviation Integrated circulation with adjustable flow rate made from stainless steel 304S S
6. Stainless steel 304SS grain basket with built-in overflow pipe for boil dry protection
7.The basket can be adjusted in relation to the amount of malt. The basket holds up to 15kgs
8. Clear and easy to read LCD monitor Manual or automatic program control with alarms/reminders Programmable of up to 9 mashing steps and up to 9 hop/spice additions Built-in memory with capacity for saving up to 10 recipes
9. Powerful 230 V magnetic pump with separate on/off button.
10. Capacity 8 L./min. Glass lid ensuring easy visual monitoring of the mashing process
Details Images
ALL-IN-ONE: The Mash and Boil includes pump and makes home brewing and mashing easy - no need for an outdoor burner or brewing stand. Our precise thermostat and internal sparging basket lets you mash and boil in the same vessel.

TEMPERATURE CONTROL: This model features an adjustable thermostat with a Fahrenheit and Centigrade toggle.
A thermometer hole is provided in the lid, in case you want to monitor the temperature of the top of the mash.

RECIRCULATION PUMP: Easily attach the Recirculation Arm and tubing and turn on the recirculation pump which keeps even temperatures throughout the brewer during mashing.

PROGRAMMABLE TIMER: Our brewing system comes with an adjustable runtime preset at 3.5 hours for safety and it also features a delayed start timer, so you can program the Mash and Boil to turn on up to 24 hours after setting.

STAINLESS STEEL: The Mash and Boil’s exclusive double wall stainless construction conserves heat and is very easy to clean.
Optional Accessories
SUPPORT CUSTOMIZATION LOGO ON MACHINES FOR YOU!
JUST CONTACT US GET MORE DETAILS!!
Special promotion: buy one get one free chiller coil, hop spider, brewing paddle, whirlpool arm.
Customers Feedback
Craft beer use Damai Microbrwery from customers all over the world!
Excellent quality and high cost performance has been recognized by the customer, if you are looking for a overseas partner for homebrew equipment, please do not hesitate to contact us!
Related Products

We are professional manufacturer of home brew equipment, all in one micro brewery, all capacity of beer mash tun. Brewing accessories like chiller coil, hop spider, etc. We keep good quality and competitive price to ensure our customers benefit.

●Please kindly choose you need the accessories match the equipment and click on the image to view more.

We have the certificates of CE(EMC&ERP&LVD), ROHS, LFGB, PAHS, UL for homebrew equipments. The authoritative testing institution ensures that the quality of our products is up to the world standard and that our products have the quality guarantee for customers.
