15.Breating valve
16.Drainage outlet
17.Ladder rack x1
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
/
-
Dimension(L*W*H):
-
/
-
Weight:
-
25 KG
-
Machinery Capacity:
-
fermenter
-
Core Components:
-
Spare parts
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
color:
-
optional
-
material:
-
stainless steel
-
Usage:
-
storage/fermenter
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Canada, Australia
-
Certification:
-
ISO/CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
prettech, Prettech
-
Voltage:
-
/
-
Power:
-
/
-
Dimension(L*W*H):
-
/
-
Weight:
-
25 KG
-
Machinery Capacity:
-
fermenter
-
Core Components:
-
Spare parts
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
color:
-
optional
-
material:
-
stainless steel
-
Usage:
-
storage/fermenter
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Canada, Australia
-
Certification:
-
ISO/CE

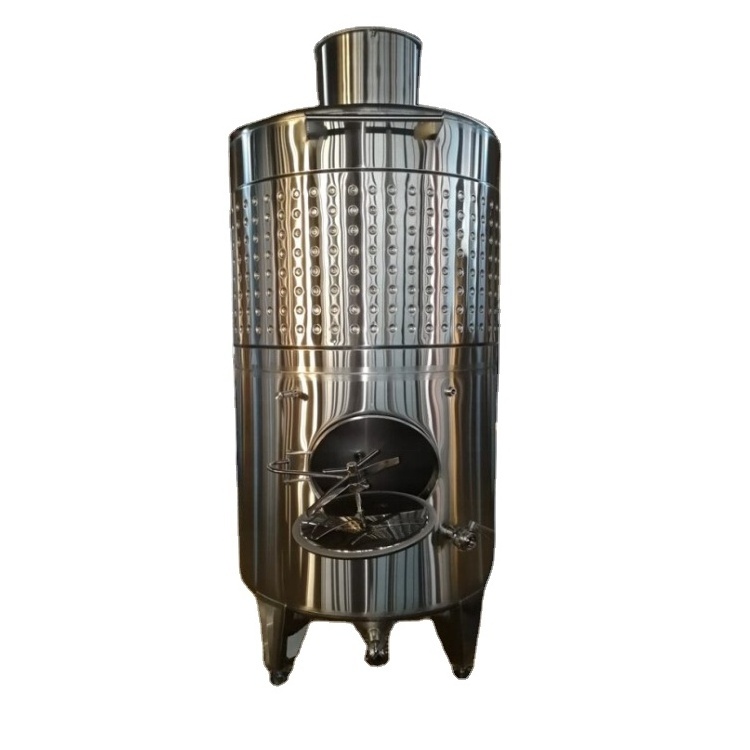

Products Description
Configurations
1.Cone-shaped shell
2.Slope bottom
3.Rectangular manhole at side
4.Glycol intel& outlet
5.Filtering grid
6.Levelling indicator
7.Sample valve
8.Llfting lugs x2
9.4 legs with adjustable feet and levelling tubes
10.Conical top
11.Top round manhole
12.Cooling jakcet
13.Pump-over system
14Thermometer
|
Model
|
Volume(L)
|
Inner dia. (mm)
|
Total height H(mm)
|
Shell height H1 (mm)
|
Skirt height H1(mm)
|
Cooling area (H)
|
|
FK-OT 1.0
|
1000
|
950
|
2220
|
1720
|
255
|
700
|
|
FK-OT 1.5
|
1500
|
1100
|
2220
|
1720
|
255
|
700
|
|
FK-OT 2.0
|
2000
|
1310
|
2250
|
1720
|
255
|
1000
|
|
FK-OT 2.5
|
2500
|
1500
|
2250
|
1720
|
255
|
1000
|
|
FK-OT 3.0
|
3000
|
1600
|
2270
|
1720
|
255
|
1000
|
|
FK-OT3.5
|
3500
|
1600
|
2550
|
2000
|
255
|
1000
|
|
FK-OT 4.0
|
4000
|
1700
|
2550
|
2000
|
255
|
1000
|
|
FK-OT4.5
|
4500
|
1800
|
2550
|
2000
|
255
|
1000
|
|
FK-OT 5.0
|
5000
|
1920
|
2520
|
2000
|
255
|
1000
|
|
FK-OT 6.0
|
6000
|
2070
|
2570
|
2000
|
255
|
1000
|
|
FK-OT 8.0
|
8000
|
1800
|
4070
|
3000
|
255
|
1500
|
|
FK-OT 10
|
10000
|
2050
|
3820
|
3220
|
255
|
1500
|
|
FK-OT 15
|
15000
|
2200
|
4820
|
4220
|
255
|
2000
|
|
FK-OT 20
|
20000
|
2200
|
6070
|
5440
|
255
|
2000
|
Product Advantages
A1
:Prettech tanks are made of SS304 grade stainless steel. It offers the best properties for sanitary, food and beverage processing. For highly-corrosive environments, such as salty or acidic areas, tanks can be manufactured out of the higher-grade SS316L stainless steel.
A2
:
Cone shaped structure delays the raising of lees and enables a more efficient cap submerging.
A3
:
Precise or customized arranged cooling jacket on the tank body makes temperature control stable. It also can meet the requirement of half-tank wine temperature cooling in use.
