Quick Details
-
Voltage:
-
220/380v Customized
-
Power:
-
110-400kw, 110-440kw
-
Weight:
-
15000 kg, 15t
-
Capacity:
-
60-520t/h
-
Optimal feed size:
-
30-50mm
-
Spindle speed:
-
1180-1890rpm
-
Dimensions:
-
Customizable
-
Advantage:
-
High Efficiency Low Energy
-
Product name:
-
Impact sand making machine
-
Features:
-
Easy Operation Maintenance
-
Usage:
-
Quartz Sand Processing
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Haoding Machinery
-
Voltage:
-
220/380v Customized
-
Power:
-
110-400kw, 110-440kw
-
Weight:
-
15000 kg, 15t
-
Capacity:
-
60-520t/h
-
Optimal feed size:
-
30-50mm
-
Spindle speed:
-
1180-1890rpm
-
Dimensions:
-
Customizable
-
Advantage:
-
High Efficiency Low Energy
-
Product name:
-
Impact sand making machine
-
Features:
-
Easy Operation Maintenance
-
Usage:
-
Quartz Sand Processing

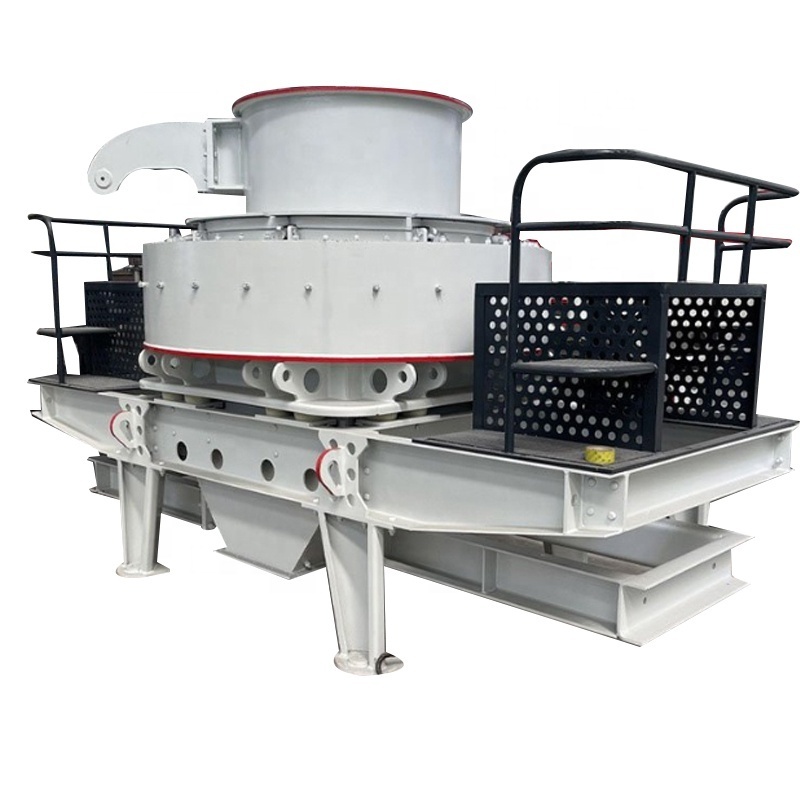

Products Description
VSI series impact crusher adopt the latest internation technology, with high stable and high capacity production. This series crusher has three function: crushing, making sand and shaping, widely used in the sand making plant.
Working Principle:
Raw materials fall down into the feeding hopper, and then materials are divided into two parts by distributor plate. Some
materials enter the sand making machine's impeller through the center of the plate and the other part of materials falls down from outside of the plate. The materials in impeller are thrown out with high speed and crush first with materials which is falling free around the plate, then materials hit the liner plate installed inside sand making machine for further crushing, then move up to hit top plate for further crushing, then materials fall down by gravity and are discharged out in the bottom opening of sand making machine.
Raw materials fall down into the feeding hopper, and then materials are divided into two parts by distributor plate. Some
materials enter the sand making machine's impeller through the center of the plate and the other part of materials falls down from outside of the plate. The materials in impeller are thrown out with high speed and crush first with materials which is falling free around the plate, then materials hit the liner plate installed inside sand making machine for further crushing, then move up to hit top plate for further crushing, then materials fall down by gravity and are discharged out in the bottom opening of sand making machine.
|
Model
|
Rotation speed(r/min)
|
Power of double motor(kw)
|
Feeding opening size(mm)
|
Overall dimension(mm)
|
|
VSI-7611
|
1700-1890
|
110-150
|
Hard≤30 Soft≤35
|
3700*2150*2100
|
|
VSI-8518
|
1520-1690
|
180-220
|
Hard≤35 Soft≤40
|
4140*2280*2425
|
|
VSI-9526
|
1360-1510
|
264-320
|
Hard≤40 Soft≤45
|
4560*2447*2778
|
|
VSI-1140
|
1180-1310
|
400-440
|
Hard≤45 Soft≤50
|
5000*2700*3300
|
Advantages
1.Large handing capacity and high output.
2.Low wearing parts cost.
3.Perfect product shape.
4.Hydraulic devices are maintained easily.
5.Thinning oil lubricant and automatic.
6.Multi-functions and Flexible application.
