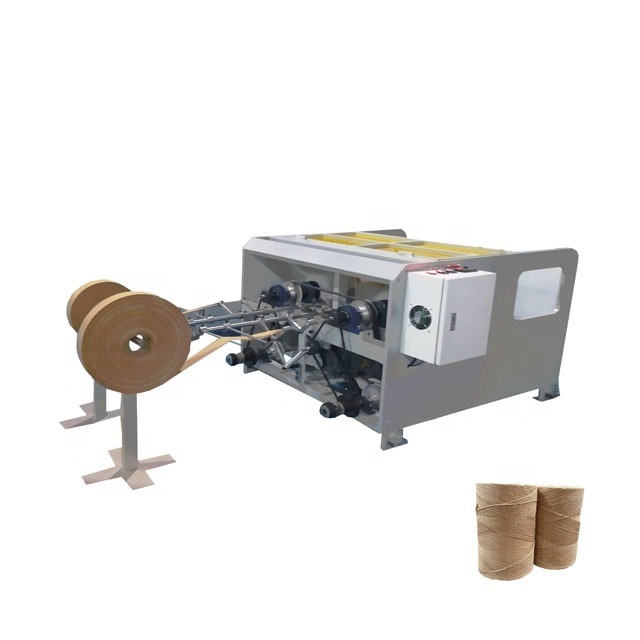

Factory directly sell twisted kraft paper rope making machine for paper bag

Factory directly sell twisted kraft paper rope making machine for paper bag

FOB Reference Price: Get Latest Price

≥1 Sets

US $3800

≥5 Sets

US $3600

≥10 Sets

US $3400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: paper bag

Place of Origin:: Guangdong, China

Brand Name:: FEIYANG

Model Number:: FY-20K

Voltage:: 220V

Dimension(L*W*H):: L1600*W1500*H1000

Weight:: 800 KG

Core Diameter of Raw Rope Roll:: 76 mm(3'')

Max. Paper Rope Diameter:: 450mm

Paper Roll Width:: 20-100mm

Paper Thickness:: 20-60g/㎡

Paper Rope Diameter:: 300mm

Production Speed:: 30-40m/min

Power Requirements:: Power Requirements

Overall Dimension:: L1600*W1500*H1000

After Warranty Service:: Online support

Quick Details

Machine Type:: paper rope machine

Bag Type:: Paper rope

Material:: Paper rope

Applicable Industries:: paper bag

Place of Origin:: Guangdong, China

Brand Name:: FEIYANG

Model Number:: FY-20K

Voltage:: 220V

Dimension(L*W*H):: L1600*W1500*H1000

Weight:: 800 KG

Core Diameter of Raw Rope Roll:: 76 mm(3'')

Max. Paper Rope Diameter:: 450mm

Paper Roll Width:: 20-100mm

Paper Thickness:: 20-60g/㎡

Paper Rope Diameter:: 300mm

Production Speed:: 30-40m/min

Power Requirements:: Power Requirements

Overall Dimension:: L1600*W1500*H1000

After Warranty Service:: Online support

Factory directly sell twisted kraft paper rope making machine for paper bag

Product Description

This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine, paper twisted into rope and kept in paper rope roll. Users can adjust the diameter of the paper rope to meet different production needs.

Core Diameter of Raw Rope Roll	66mm
Max Paper Rope Diameter	450mm
Paper Roll Width	20-100mm
Paper Thickness	15-60g/m²
Paper Rope Diameter	2.5-6mm
Max. Rope Roll Diameter	300mm
Max. Paper Rope Width	300mm
Production Speed	20-40m/min
Power Requirements	220v
Total Power	1.5kw
Total Weight	Approx. 800kg
*Overall Diamension(LWH)*	L1580W1440930mm
