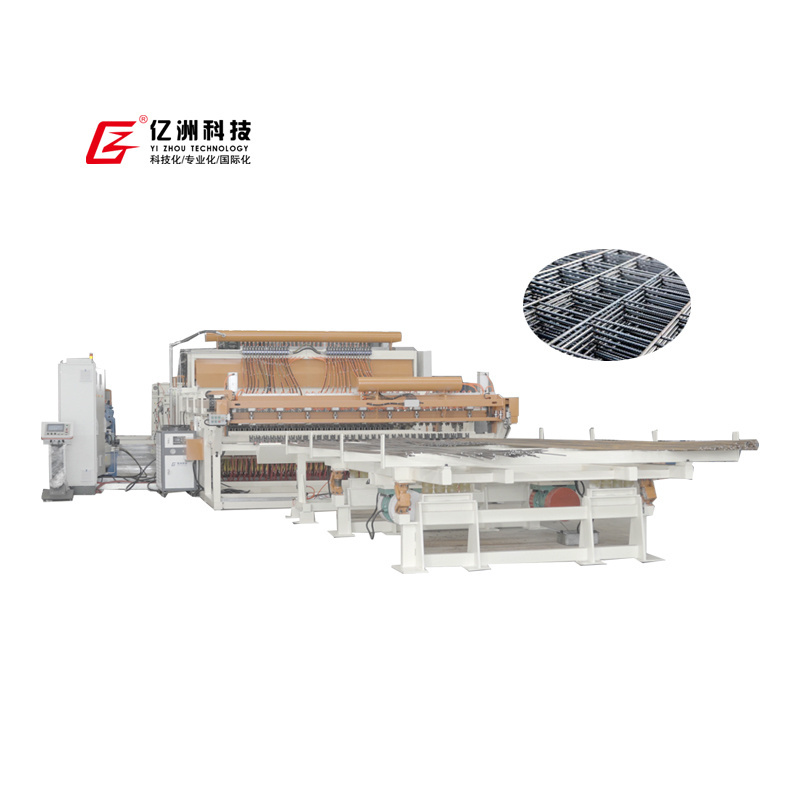

Quick Details
-
Production Capacity:
-
20 sets/month
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YZ
-
Model Number:
-
GWC-BT-3400
-
Weight (KG):
-
32000
-
Power (kW):
-
3200KVA
-
After-sales Service Provided:
-
Video Technical Support
-
Wire materials:
-
Cold-draw and Hot-rolled Plain Bar/Ribbed Bar
-
Mesh Size:
-
3400*6000mm
-
Application:
-
Construction Wire Mesh
-
Line Wire Feeding:
-
Bar
-
Cross Wire Feeding:
-
Bar
-
Welding Speed:
-
50-80 rows/min
-
Voltage:
-
380V-3P-50Hz or customized
-
Customized:
-
Accepted
Quick Details
-
Wire Diameter (mm):
-
5 - 12 mm
-
Machinery Test Report:
-
According to requirement
-
Marketing Type:
-
Construction Welded Mesh Machinery
-
Production Capacity:
-
20 sets/month
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YZ
-
Model Number:
-
GWC-BT-3400
-
Weight (KG):
-
32000
-
Power (kW):
-
3200KVA
-
After-sales Service Provided:
-
Video Technical Support
-
Wire materials:
-
Cold-draw and Hot-rolled Plain Bar/Ribbed Bar
-
Mesh Size:
-
3400*6000mm
-
Application:
-
Construction Wire Mesh
-
Line Wire Feeding:
-
Bar
-
Cross Wire Feeding:
-
Bar
-
Welding Speed:
-
50-80 rows/min
-
Voltage:
-
380V-3P-50Hz or customized
-
Customized:
-
Accepted
|
Model No
|
GWC-BT-3400
|
|
Wire diameter
|
5-12mm
|
|
Line wire spacing
|
≥75mm stepless adjustment
|
|
Cross wire spacing
|
≥75mm stepless adjustment
|
|
Mesh width
|
1000mm-3400mm
|
|
Welding Speed
|
50-80 cross wire no./min
|
|
Transformer power
|
32*100KVA
|
|
Feeding of line wire
|
BAR
|
|
Feeding of cross wire
|
BAR
|
|
Customization
|
YES
|
Products Features
* Easy Operation
* Reliable & Durable
* Line Wire Spacing Can Be Adjusted Infinitely
* High Welding Speed
Line Wire Magazine
The straightened wires can be stored in the magazine. It has a vibration mechanism
. T
hese wires will be placed neatly by the vibration process, so that wires can be gripped easily for workers.
Line Wire Feeding Mechanism
The wires will be gripped by gripper and sent to welder.There is some space between feeding pulley and welder, so it can realize continuous welding.
Welder
32 independent welding units, line wire spacing can be adjusted infinitely, mesh specification change is more simple and convenient.
Cross wire blanking mechanism
The cross wires is put into the hopper in batches and automatic blanked.The special blanking system avoids wires stuck.
Mesh Pulling Mechanism
The welded mesh will be pulled out from welder through servo motors, and it will send meshes to the stacking mechanism.
Stacking Mechanism
The meshes are pulled to stacking mechanism, the support beams in both sides will be opened and meshes fall on the rollers for transportation.
Transportation Mechanism
The stacked meshes will be conveyed out of the stacking mechanism for packing and transportation.
Q: How many employees are there in your factory
A: More than 160 employees
A: More than 160 employees
Q: What is your guarantee?
A: 1 year since the machines are installed for hardware. Technical service is available for whole service life of machines
A: 1 year since the machines are installed for hardware. Technical service is available for whole service life of machines
Q:Will you send the engineers abroad for installation and commission?
A: Yes, if you need this service . remote and video service support are available
A: Yes, if you need this service . remote and video service support are available
Q:Can we be your distributors or technical service agent in our city or country?
A: Of course, warmly welcome! We can discuss details
A: Of course, warmly welcome! We can discuss details
Q:Can you assist us to get the certification we need?
A: Absolutely yes
A: Absolutely yes
