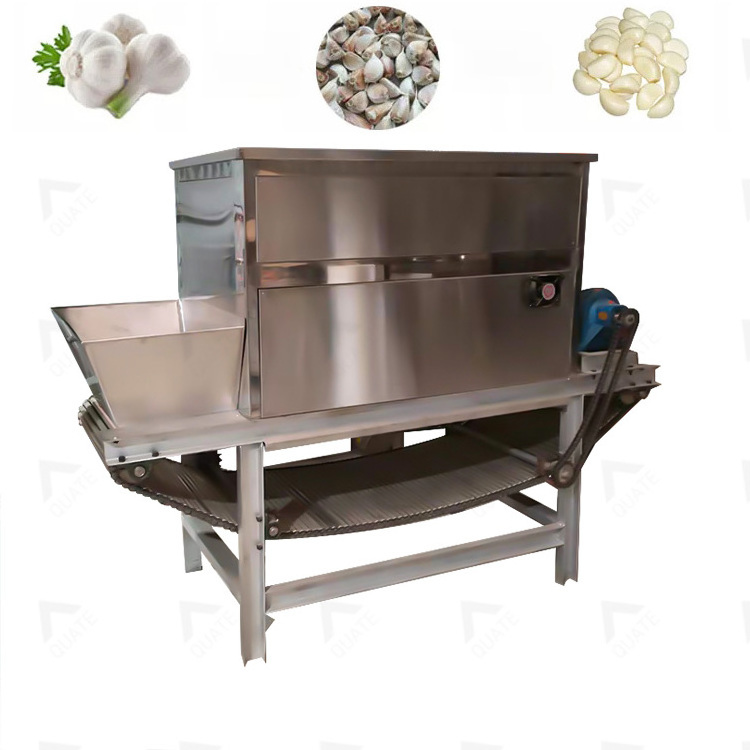

China manufacturer Garlic peeler /shallot onion peeling machine/garlic skin peeler

China manufacturer Garlic peeler /shallot onion peeling machine/garlic skin peeler

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

≥6 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V

Power:: 1.85kw

Weight:: 600 KG

Dimension(L*W*H):: 3300*750*1800mm

Year:: 2020

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Garlic peeler /shallot onion peeling machine/garlic skin peeler

Application:: garlic separator and peel

Material:: SUS304

Capacity:: 1000~1500kg/h

Feature:: High Efficiency

Matched machine:: air compressor

After Warranty Service:: Video technical support

Packing:: Woodnen Case

Quick Details

Place of Origin:: Henan, China

Brand Name:: QUATE

Type:: Garlic peeling and dividing machine, Stripper

Voltage:: 220V/380V

Power:: 1.85kw

Weight:: 600 KG

Dimension(L*W*H):: 3300*750*1800mm

Year:: 2020

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Garlic peeler /shallot onion peeling machine/garlic skin peeler

Application:: garlic separator and peel

Material:: SUS304

Capacity:: 1000~1500kg/h

Feature:: High Efficiency

Matched machine:: air compressor

After Warranty Service:: Video technical support

Packing:: Woodnen Case

Product Overview

Description of Garlic peeling production line

Garlic peeling production line is composed of elevator, garlic separating machine, garlic peeling machine, and picking belt.
Uses of Garlic peeling production line:
The production line is mainly used in the previous process for dehydrated garlic, garlic powder, mashed garlic, allicin, and other products.

FEATURES AT A GLANCE

Principle of Garlic peeling production line

Put the garlic which has been removed the root into the hopper in the elevator, and then stepless speed adjusting elevator will sent evenly the garlic to the segment separator/garlic separating machine. After separating, the garlic segments will enter in the peeling machine where it has a particular pressure ventilation, and then the peeling garlic cloves into the conveying picker to pick the unqualified garlic by manual picking, and finally the qualified garlic segments will enter the next procedure.
