Quick Details
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Drinking Water Purification
-
Function:
-
Producing Fresh Water
-
Keywords:
-
stainless steel water filter tank
-
Name:
-

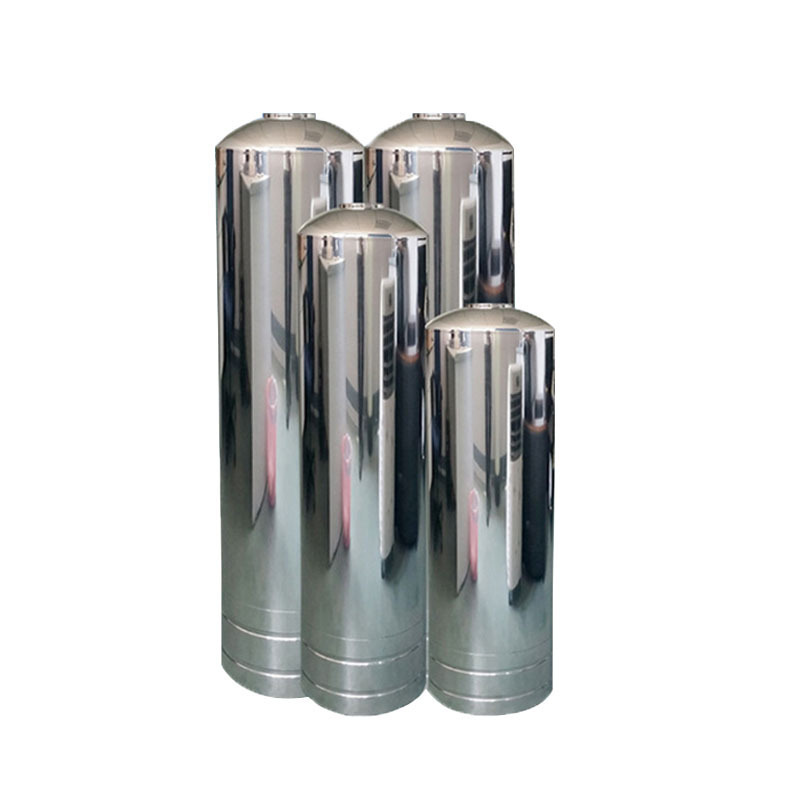

Stainless Steel Water softener filter Tank
-
Model:
-
817 844 1044 1054
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Raw material:
-
SS 304 ss316
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Weight (KG):
-
8 kg
-
Product name:
-
Stainless Steel Water Tank
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Drinking Water Purification
-
Function:
-
Producing Fresh Water
-
Keywords:
-
stainless steel water filter tank
-
Name:
-
Stainless Steel Water softener filter Tank
-
Model:
-
817 844 1044 1054
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Raw material:
-
SS 304 ss316
Product Description
Specifications
1) Power free;
2) Easy washing & back washing;
3) Surface: mirror finish;
4) Material: SS304/316L.
Main features:
1) Material of multi media filter housing: stainless steel 304 or 316L;
2) Exterior surface: mirror finish;
3) Interior surface: epoxy paint. This will prevent the generation and reproduction of lichen and algae, keep the interior wall
clean and safe;
4) Apron type or leg type available;
5) Patented flow control valve guarantees easy and effective washing and back washing;
6) Serve as the preprocessing device for RO system;
7) Provided with quartz sand, activated carbon and cation resin, it will effectively remove silt, seston, colloid, rust, toxic
chemicals, calcium and magnesium ion, and etc
1) Power free;
2) Easy washing & back washing;
3) Surface: mirror finish;
4) Material: SS304/316L.
Main features:
1) Material of multi media filter housing: stainless steel 304 or 316L;
2) Exterior surface: mirror finish;
3) Interior surface: epoxy paint. This will prevent the generation and reproduction of lichen and algae, keep the interior wall
clean and safe;
4) Apron type or leg type available;
5) Patented flow control valve guarantees easy and effective washing and back washing;
6) Serve as the preprocessing device for RO system;
7) Provided with quartz sand, activated carbon and cation resin, it will effectively remove silt, seston, colloid, rust, toxic
chemicals, calcium and magnesium ion, and etc
Specification
|
Model
|
Normal Dimension
|
Top Open
|
Bottom Open
|
Thickness(mm)
|
|
0817
|
Φ200*450
|
2-1/2"
|
/
|
1.5
|
|
0835
|
Φ200*900
|
2-1/2"
|
/
|
1.5
|
|
0844
|
Φ200*1100
|
2-1/2"
|
/
|
1.5
|
|
1035
|
Φ250*900
|
2-1/2"
|
/
|
1.5
|
|
1044
|
Φ250*1100
|
2-1/2"
|
/
|
1.5
|
|
1054
|
Φ250*1400
|
2-1/2"
|
/
|
1.5
|
|
1254
|
Φ300*1400
|
2-1/2"
|
/
|
1.5
|
|
1265
|
Φ300*1650
|
2-1/2"
|
/
|
1.5
|
|
1465
|
Φ350*1650
|
2-1/2"
|
/
|
1.5
|
|
1665
|
Φ400*1650
|
2-1/2"
|
/
|
1.5
|
|
2069
|
Φ500×1810x2.0
|
4"
|
4"
|
2
|
|
2475
|
Φ600×1940x2.0
|
4"
|
4"
|
2
|
|
3075
|
Φ750×1960x2.0
|
4"
|
4"
|
2
|
|
3075-B
|
Φ750×2160x2.0
|
6" Flange
|
6" Flange
|
2
|
|
3675
|
Φ900×2100x2.0
|
4"
|
4"
|
2
|
|
3675-B
|
Φ900×2300x2.0
|
6" Flange
|
6" Flange
|
2
|
|
4083
|
Φ1000×2100x3.0
|
4"
|
4"
|
3
|
|
4083-B
|
Φ1000×2300x3.0
|
6" Flange
|
6" Flange
|
3
|
|
4888
|
Φ1200×2200x3.0
|
4"
|
4"
|
3
|
|
4888-B
|
Φ1200×2400x3.0
|
6" Flange
|
6" Flange
|
3
|
Packing & Delivery
Export Carton Packing
Customerized Packages
