Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in scientific research and testing industry.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NANBEI
-
Model Number:
-
AQJ -20
-
Product name:
-
high precision digital screwdriver torque calibration tester meter
-
Max load:
-
20N.m
-
Accuracy:
-
±1%
-
Peak sampling frequency:
-
1920HZ
-
Set the upper and lower limits:
-
Yes
-
USB interface:
-
Yes
-
charger Input:
-
AC220V50HZ output:DC12V1000mA
-
Three units convert:
-
N.m , kgf.cm , Ibf.in
-
Real-time:
-
Yes
-
Computer displays the test curve:
-
Yes
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NANBEI
-
Model Number:
-
AQJ -20
-
Product name:
-
high precision digital screwdriver torque calibration tester meter
-
Max load:
-
20N.m
-
Accuracy:
-
±1%
-
Peak sampling frequency:
-
1920HZ
-
Set the upper and lower limits:
-
Yes
-
USB interface:
-
Yes
-
charger Input:
-
AC220V50HZ output:DC12V1000mA
-
Three units convert:
-
N.m , kgf.cm , Ibf.in
-
Real-time:
-
Yes
-
Computer displays the test curve:
-
Yes

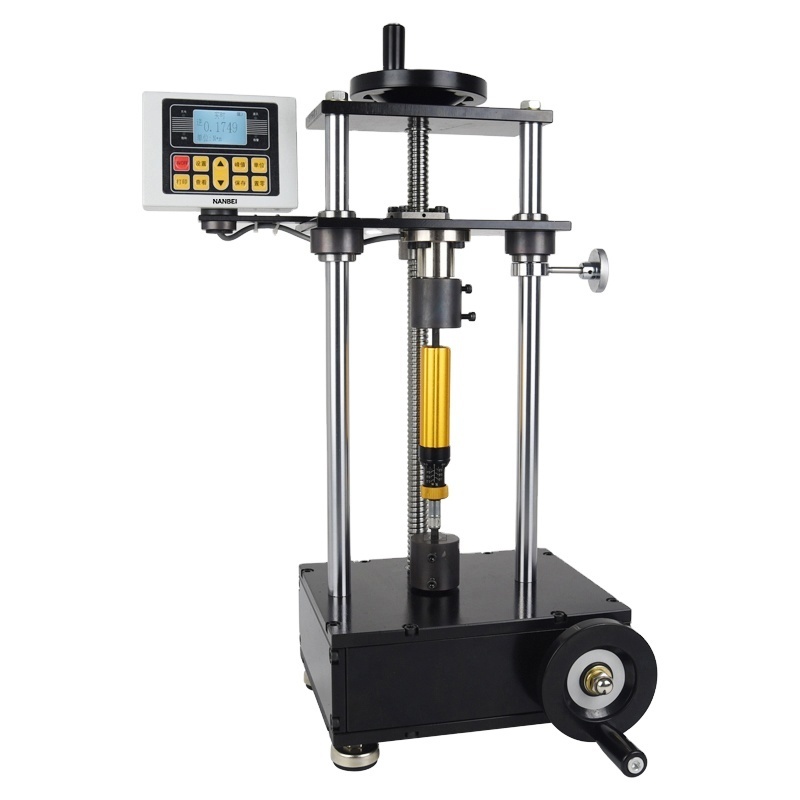

Physical Measuring Instruments High precision screw calibration electric screwdriver digital torque tester meter
Product Description
Application & Usage :
NQJ series torque kicker is designed for testing and testing a variety of torque screwdriver design and manufacture of an intelligent multi-function measuring instruments.
Mainly used to detect and correct a variety of torque screwdriver, a variety of products involved in the test of tightening force, parts torque destructive test. With simple operation, high precision, full-featured features.
Widely used in a variety of electrical, light industry, machinery manufacturing, research institutions and other industries.
Feature :
1. High precision, high resolution, sampling speed, full screen display.
2. The use of high-precision torque sensor, with torque direction display.
3. Set the upper and lower limits.
4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)
5. Real-time, peak, automatic peak three modes can be free to switch.
6. Using the USB interface to communicate with the PC, the synchronization test function may link the computer test, the computer displays the test curve and the detailed test force in the test process, and can save and do all kinds of analysis.
7. Peak hold function, automatic peak function Automatic peak value display time free setting function.
8. Storage capacity, can save 99 sets of test data.
9. No operation Automatic shutdown function, the time can be set freely
More Details Photos
Specification
|
Model
|
|
|
NQJ-2
|
NQJ-5
|
NQJ-10
|
NQJ-20
|
|||||
|
Measurement range
/ scale value |
N.m
|
2.000/0.001
|
|
5.000/0.001
|
10.00/0.01
|
20.00/0.01
|
|||||
|
|
Kgf.cm
|
20.40/0.01
|
|
51.00/0.01
|
102.0/0.1
|
204.0/0.1
|
|||||
|
|
lb.in
|
17.70/0.01
|
|
44.25/0.01
|
88.5/0.1
|
177.0/0.1
|
|||||
|
Accuracy
|
|
|
±1％
|
|
|
|
|||||
|
Peak sampling frequency
|
|
|
1920HZ
|
|
|
|
|||||
|
Power
|
|
|
7.2V 1.2V×6 Ni-MH battery pack
|
|
|
|
|||||
|
Charging time
|
|
|
4~6 hour
|
|
|
|
|||||
|
Battery continuous use of time
|
|
|
About 10 hour
|
|
|
|
|||||
|
Battery warranty
|
|
|
≥300time
|
|
|
|
|||||
|
Dimension
|
|
|
260mm300mm620mm
|
|
|
|
|||||
|
Net weight
|
|
|
32kg
|
|
|
|
|||||
|
charger
|
|
|
Input:AC220V50HZ output:DC12V1000mA
|
|
|
|
|||||
