Quick Details
-
Brand Name:
-
Motek
-
Use:
-
FTTX, FTTX
-
Warranty Time:
-
3 years
-
Product name:
-
Fiber MPO Optic Patchcord
-
Length of Line:
-
25.6FT/8M
-
Mode Fiber:
-
SM G657A1
-
Connector Type:
-
MPO
-
Fiber Type:
-
Single Mode
-
Package:
-
opp bags or customization
-
Color:
-
yellow or customization
-
Certificate:
-
ISO,ROHS
-
Connector A Type:
-
MPO(F,8C)/APC
-
Connector B Type:
-
MPO(M,8C)/APC
Quick Details
-
Type:
-
Fiber optic patch cord
-
Model Number:
-
mpo-mpo
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Motek
-
Use:
-
FTTX, FTTX
-
Warranty Time:
-
3 years
-
Product name:
-
Fiber MPO Optic Patchcord
-
Length of Line:
-
25.6FT/8M
-
Mode Fiber:
-
SM G657A1
-
Connector Type:
-
MPO
-
Fiber Type:
-
Single Mode
-
Package:
-
opp bags or customization
-
Color:
-
yellow or customization
-
Certificate:
-
ISO,ROHS
-
Connector A Type:
-
MPO(F,8C)/APC
-
Connector B Type:
-
MPO(M,8C)/APC
|
Model
|
|
SM
|
MM
|
|||
|
Connector A and B : MPO/MTP
|
|
|
|
|||
|
Connector Fiber Count
|
8,12,24,32,48 Core
|
|
|
|||
|
Polish
|
|
PC,APC
|
PC
|
|||
|
Insertion Loss
|
Standard
|
≤0.70dB
|
≤0.50dB
|
|||
|
|
Elite Low Loss
|
≤0.35dB
|
≤0.30dB
|
|||
|
Return Loss
|
|
PC≥50dB,APC≥60dB
|
≥30dB
|
|||
|
Durability(500 Matings)
|
|
≤0.2dB
|
|
|||
|
Test Wavelength
|
|
1310/1550nm
|
850/1300nm
|
|||
|
Connector B:LC,LC Uniboot,SC,FC,ST
|
|
|
|
|||
|
Polish
|
|
PC,APC
|
PC
|
|||
|
Insertion Loss
|
|
≤0.2dB
|
≤0.2dB
|
|||
|
Return Loss
|
|
PC≥50dB,APC≥60dB
|
≥35dB
|
|||
|
Durability(500 Matings)
|
|
≤0.2dB
|
|
|||
|
Test Wavelength
|
|
1310/1550nm
|
850/1300nm
|
|||
|
Length of Line
|
25.6FT/8M
|
|
Color of Line
|
Yellow
|
|
Type of Line
|
SM G657A1
|
|
Number of Cord
|
8
|
|
Connector A Type
|
MPO(F,8C)/APC
|
|
Connector B Type
|
MPO(M,8C)/PC
|
|
Fiber Type
|
Single Mode
|

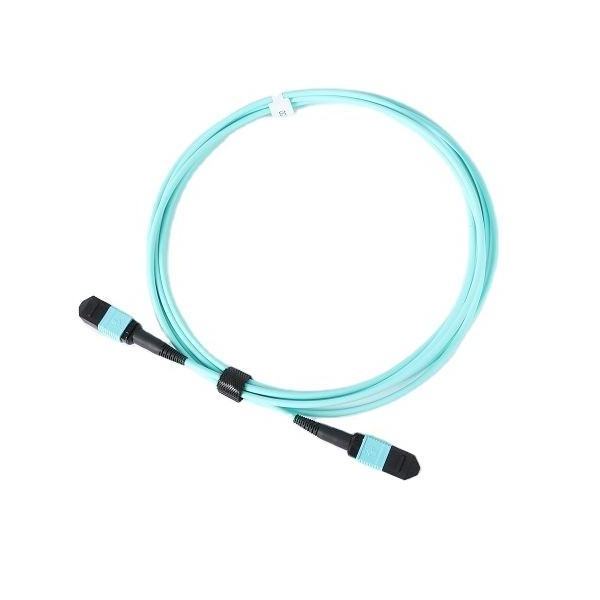

High Speed& High Performance: MPO-MPO Patch Cable (MPO FEMALE Connector without PIN) provides a secure and reliable connection, G657A1 Fiber apply for high-speed& long-distance broadband and data networks. Low insertion loss and return loss.
TYPE A+B& 8 Cores: SMF(9/125um), G657A1, LSZH sheet, 8 fibers cable, constructed with type B polarity (channels 1 to 12). Designed for connecting MPO / MTP cassettes and QSFP+ transceivers, MPO-MPO Fiber Patch Cable is fully compatible with MTP connectors.
High Quality& Safety: MPO Fiber Optic Patch Cord uses the outer layer LSZH, It is effective anti-corrosion, flame-retardant, and wear-resistant; And complemented by precision plates holders designed for MT ferrules; With strong tensile performance provides MPO Cable excellent protection and maximum flexibility.
Saving Space and Wiring Costs: To achieve a higher transmission data rate, it is important to find a suitable solution for the high density cable routing. The MPO modularity in MPO cables reduces the cost of installation, modification and maintenance of structured communication cables in current and future data centers.
Easy to Install& Widely Used: Easy to Install, Plug and Play; Widely compatible with Switch,Router,Firewall, Media Converter, Server£¬Optical Fiber Network Card, Storage device, Data center and other equipment. Lifetime Friendly Customer Service,if have problem,pls contact us.
Q1: Are you the manufacturer?
Us: we are the factory with 10 years
Q2: What's the MOQ?
Us: The MOQ of fiber optic patch cord is 100pcs.
Q3: What's delivery time?
Us: The general delivery time is 7-10 days after deposit.If order qty is large,Pls check with us.
Q4: Can you supply customized products and logo?
Us: Yes,we provide OEM service.Include LOGO,package,products.Pls trust us.
Q5: What's your payment terms?
Us: We accept T/T,L/C,Westerm Union,paypal.30% deposi in advance,70% before shipping.
Q6: Can you offer free sample?
Us: Yes,we provide free sample,but you pay for shipping fee.If you place order,we can back to you.
Us: we are the factory with 10 years
Q2: What's the MOQ?
Us: The MOQ of fiber optic patch cord is 100pcs.
Q3: What's delivery time?
Us: The general delivery time is 7-10 days after deposit.If order qty is large,Pls check with us.
Q4: Can you supply customized products and logo?
Us: Yes,we provide OEM service.Include LOGO,package,products.Pls trust us.
Q5: What's your payment terms?
Us: We accept T/T,L/C,Westerm Union,paypal.30% deposi in advance,70% before shipping.
Q6: Can you offer free sample?
Us: Yes,we provide free sample,but you pay for shipping fee.If you place order,we can back to you.
Give us one trust,We back one good service to you.
