Quick Details
-
Brand Name:
-
WZQYSL
-
Model Number:
-
G2R
-
Rated Current:
-
63
-
Frequency:
-
50/60Hz
-
Rated voltage:
-
AC220V
-
Operation type:
-
Automatic Conversion+Manual Operation
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Color:
-
White
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WZQYSL
-
Model Number:
-
G2R
-
Rated Current:
-
63
-
Frequency:
-
50/60Hz
-
Rated voltage:
-
AC220V
-
Operation type:
-
Automatic Conversion+Manual Operation
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Color:
-
White

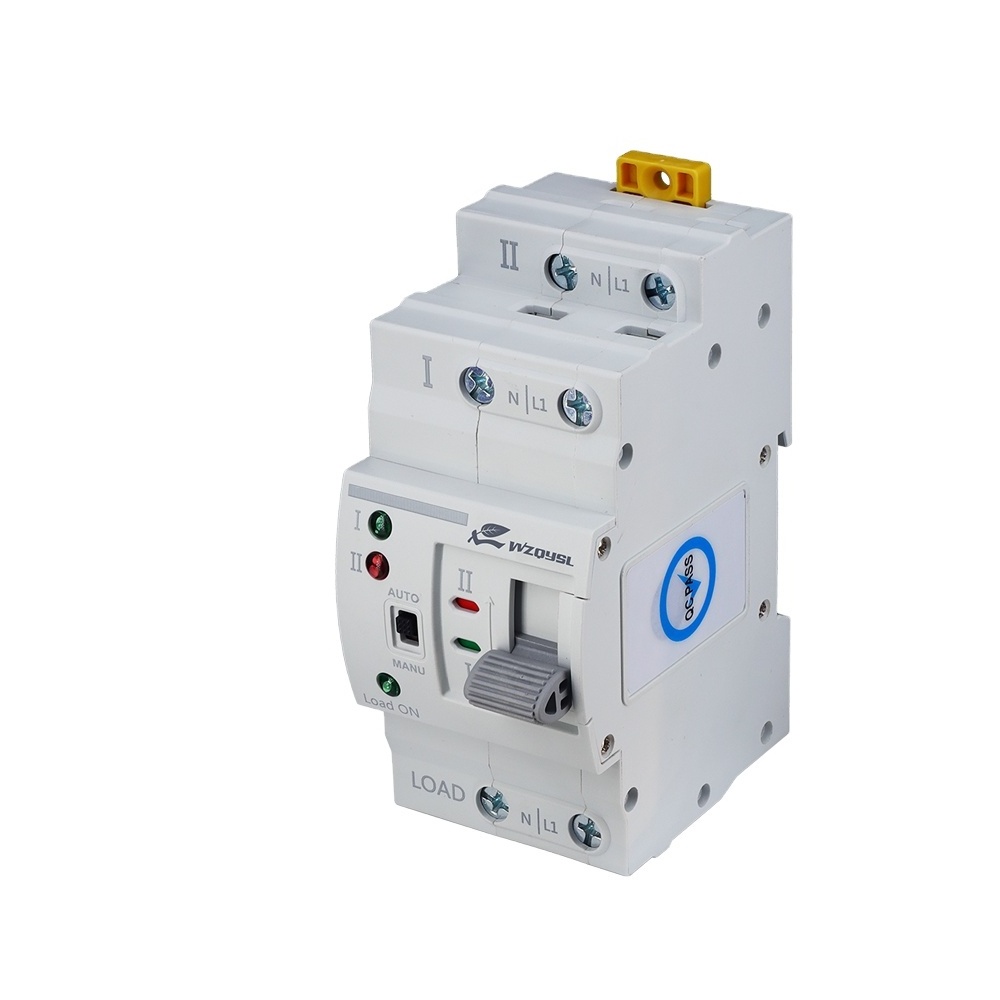

G2R-63Ⅱ
* Good installation performance
* Adopt mechanical interlock and electrical interlock
* The adoption of zero-crossing detect technique, emergency can be forced to set zero (simultaneously cut off two power supply)
* with obvious on-off indication, padlock and other functions, to achieve the isolation between the power supply and loa
d
* High reliability, over 6000 service life* High degree of automation
|
Specification current Ie(A)
|
6/10/16/20/25/32/40/50/63
|
|
Rated operating voltage, Ue (V)
|
AC230V/AC400V
|
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
Rated short circuit making capacity Icm
|
6KA
|
|
Rated impulse withstand voltage (KV)
|
4KV
|
|
Rated short circuit breaking capacity Icn
|
4.5KA
|
|
Service life
|
5000 times
|
|
Rated control supply voltage,Us(V)
|
230V 50/60Hz
|
|
Operating transfer time (no time delay)
|
≤3s
|
