W Type Mixer is used for mixing dry granules and powder in lines of food or other industries.
This machine has good effect for mixing food or chemical powder or electrostatic powder paint production because of its perfect performance..etc
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
5000L, 5000L
-
Weight (KG):
-
70 KG
-
Place of Origin:
-
Jiangsu, China, China (Mainland)
-
Brand Name:
-
KuaYue
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Custom Made, Referring
-
Power (kW):
-
0.75 kW
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Sus304/316L
-
Machine Type:
-
W type
-
Function:
-
mixer
-
mixing time:
-
6-10 min/time
-
Model:
-
W high-efficient mixer
Quick Details
-
Barrel Volume (L):
-
5-5000L
-
Max. Loading Volume (L):
-
5000 L
-
Range of Spindle Speed(r.p.m):
-
2 - 30 r.p.m
-
Max. Loading Capacity:
-
5000L, 5000L
-
Weight (KG):
-
70 KG
-
Place of Origin:
-
Jiangsu, China, China (Mainland)
-
Brand Name:
-
KuaYue
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Custom Made, Referring
-
Power (kW):
-
0.75 kW
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Sus304/316L
-
Machine Type:
-
W type
-
Function:
-
mixer
-
mixing time:
-
6-10 min/time
-
Model:
-
W high-efficient mixer
Products Description

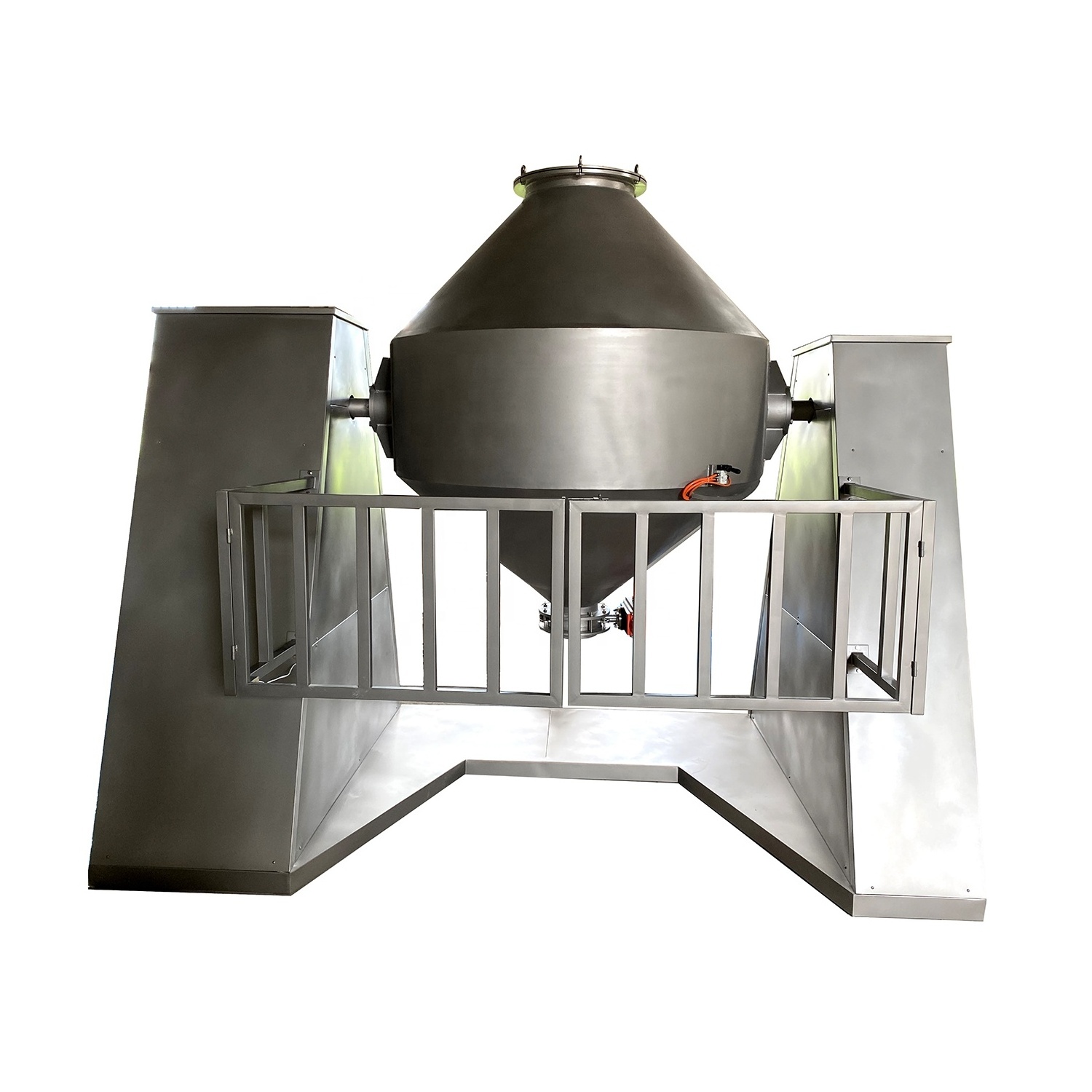

W TYPE MIXER
|
MODEL
|
W-180
|
W-300
|
W-500
|
W-1000
|
W-1500
|
W-2000
|
W-3000
|
W-4000
|
|
Barrel volume(L)
|
180
|
300
|
500
|
1000
|
1500
|
2000
|
3000
|
4000
|
|
Mixing time(min)
|
4-8
|
6-12
|
6-12
|
6-12
|
6-12
|
10-15
|
10-15
|
10-15
|
|
Overall size
(mm)
|
1400*800*1850
|
1400*800*1850
|
1910*800*1940
|
2765*1500*2370
|
2765*1500*2370
|
3160*1900*3500
|
4450*2200*3600
|
4750*2500*3680
|
|
power
(kw)
|
2.2
|
2.2
|
3
|
4
|
4
|
5.5
|
7.5
|
11
|
|
weight(kg)
|
280
|
350
|
450
|
600
|
800
|
1500
|
2000
|
3000
|
Details Images
Custom equipment construction
The feed inlet can be customized according to the equipment, such as connecting crushers, conveyors, etc.
Customized discharge port
The discharge port can choose butterfly valve, pneumatic discharge, air shutter discharge, etc.
