Quick Details
-
Frequency:
-
1.5 KVA
-
Welding Area:
-
according to your product
-
Dimensions:
-
2040x1005x1740mm
-
Use:
-
Plastic/TPU Welding
-
Weight (KG):
-
400 KG
-
Power (kW):
-
2.5
-
Brand Name::
-
Yuanwei
-
Type:
-
Sealing Machine
-
Driven Type:
-
Pneumatic
-
Function::
-
Welding and Cutting
-
Dimension(L*W*H):
-
2040x1005x1740mm
-
Weight::
-
400KG
-
ODM::
-
Accept
-
Warranty::
-
1 Year
-
Weight:
-
400KG
-
Power:
-
2500W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanwei
-
Voltage:
-
110V/220V/380V/Customize
-
Frequency:
-
1.5 KVA
-
Welding Area:
-
according to your product
-
Dimensions:
-
2040x1005x1740mm
-
Use:
-
Plastic/TPU Welding
-
Weight (KG):
-
400 KG
-
Power (kW):
-
2.5
-
Brand Name::
-
Yuanwei
-
Type:
-
Sealing Machine
-
Driven Type:
-
Pneumatic
-
Function::
-
Welding and Cutting
-
Dimension(L*W*H):
-
2040x1005x1740mm
-
Weight::
-
400KG
-
ODM::
-
Accept
-
Warranty::
-
1 Year
-
Weight:
-
400KG
-
Power:
-
2500W

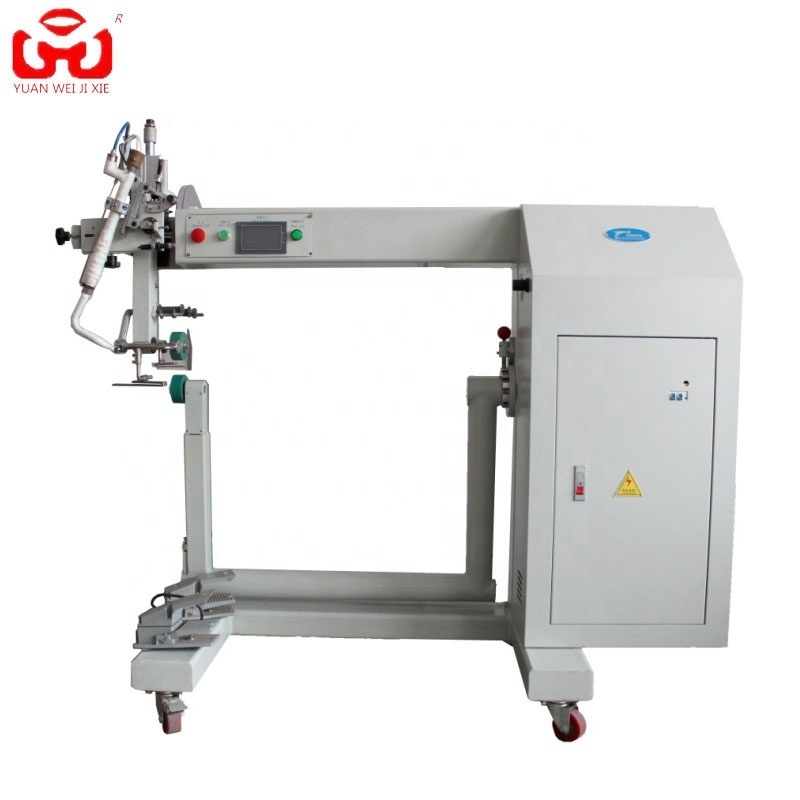

Machine introduction :
Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc.
Application :
Hot air welding machine is suitable to produce all kinds of waterproof product which is made from coated PU,PVC,TPU, PE, PVA, such as large tent, inflatable boat and children toys, car covering,etc.
Welding of Material :
1.Vinyl (PVC) laminated fabric
2.Vinyl coated fabrics
3.Vinyl Films
4.Polyurethane film
5.Polypropylene coated fabric
6.Polyethylene (PE)
7.Thermoplastic rubber (TPR) film
8.Thermoplastic rubber fabrics
9.Nonwoven polyester
10.Various fusing tapes
11.Weldable webbings
12.Rigid extruded products
Machine feature:
1.Original imported computer chip design , can be programmed in accordance wit user's requirements,microcomputer automatic control the whole machine ,simple operation , stable performance action, low failure rate .
2.It is 3 inch panasonic touch screen and can directly show all kinds of data.
3.Temperature is automatic tracking controlled by computer and its precision can reach +/-1.
4.The temperature is controlled by computer chip.twospeed motor.separate upper and lower roller motor , can adjust its speed .
5.Turn on the heating button , later turn it off and then delay the shut down , get into count down
6.No table, wide lower prop design ,suit to processing the large tents, rubber boats , air balloon, seamless sewing products, etc.
7.This model is suitable for processing the rubber boat's head, special to seaming the round corner . circular cone etc.
|
Voltage
|
AC220V 50Hz
|
|
power
|
2500W
|
|
Temp control
|
Up to 700°C
|
|
Speed
|
2~22m/min
|
|
air pressure
|
6kg/cm2
|
|
Width of roller
|
(DIA)81.5*20-50mm
|
|
Adhesive tape width
|
20mm~50mm (customizable)
|
|
Upper roller lift
|
20mm~30mm
|
|
Size (L×W×H)
|
2040x1005x1740mm
|
|
Net weight
|
400kg
|
