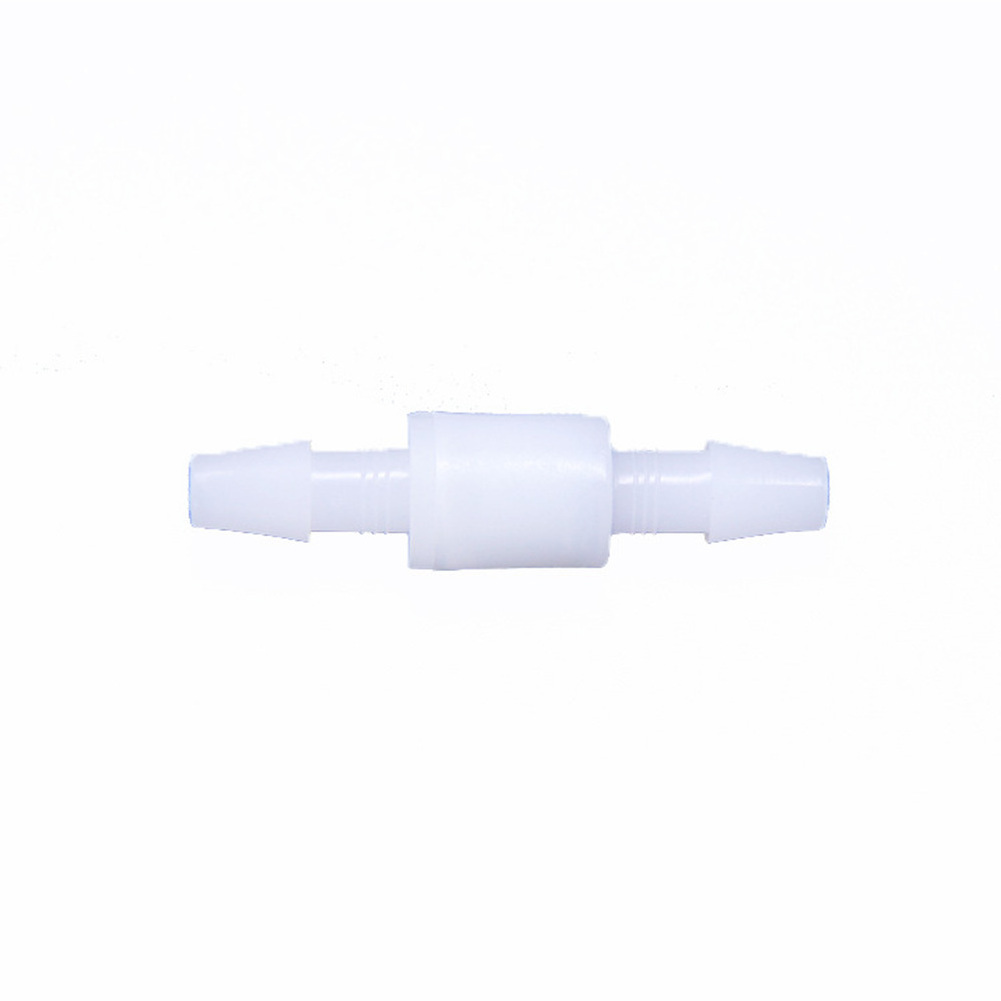

AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve
AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve

AMBOHR SCV0416DVL duckbill check valve vertical pvc check valve

FOB Reference Price: Get Latest Price
≥1 Pieces
US $2.8
≥500 Pieces
US $2.52
≥1000 Pieces
US $2.01
≥10000 Pieces
US $1.41
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SCV0416DVL
Brand Name:
AMBOHR
Product name:
Plastic check valve
Color:
White
Body material:
PVDF
Certificate:
ISO CE
Maximum temperature:
120℃
Opening pressure:
0.1-3.0kpa
Brand:
AMBOHR

Quick Details

Port Size:
1/4 inch
Warranty:
1 year
Place of Origin:
Shaanxi, China
Model Number:
SCV0416DVL
Brand Name:
AMBOHR
Product name:
Plastic check valve
Color:
White
Body material:
PVDF
Certificate:
ISO CE
Maximum temperature:
120℃
Opening pressure:
0.1-3.0kpa
Brand:
AMBOHR
Test Drive This Product

Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.

Get A FREE Sample >>>
Product Description

DCV0416DVN small plastic anti-ozone diaphragm check valve

Diaphragm check valves have three parts including inlet end, outlet end and diaphragm, it can be applied to industries such as automobiles, chemicals, and food...
Optional Materia l
Gas fuel tank explosion-proof Applying rubber umbrella core. • Post-surgical assistive device Applying spring ball-type safety relief valve • Household steam mop Applying spring ball-type safety relief valve.
Medical scaling machine Applying spring lever-type safety relief valve.
Wild camping air cushion Applying spring lever-type safety relief valve
Part number
Optional Material
A
PP
PVDF
B
PP
PVDF
C
EPDM
VMQ
FKM
D
SUS316L

E
SUS304(SUS316、SUS302),
Different specifications of spring material selection

Sealing state
When the fluid pressure of the inlet end is less than the pressure relief value, it is in a sealing state;when products is still standing, it is in a sealing state.

Pressure relief state
When the fluid pressure of the inlet end is greater than the pressure relief value, the steel ball is pushed forward, and the fluid flows out around the steel ball, thereby achieving the function of safe pressure relief.
Code
Specification
a(±0.5)
b(±0.3)
c(±0.1)
d(±0.1)
0216
1/8"
36.0
ø12.5
ø4.8
ø2.6
0316
3/16"
44.0
ø12.5
ø6.5
ø3.2
0416
1/4"
52.0
ø12.5
ø8.6
ø3.6
Code can be customized
Code
Specification
a(±0.5)
b(±0.3)
c(±0.1)
d(±0.1)
e(±0.1)
0216
1/8"
26.0
ø12.5
ø4.8
ø2.6
ø3.1
0316
3/16"
30.0
ø12.5
ø6.5
ø3.2
ø3.1
0416
1/4"
34.0
ø12.5
ø8.6
ø3.6
ø3.1
Code can be customized
Code
Specification
a(±0.5)
b(±0.3)
c(±0.1)
d(±0.1)
e(±0.1)
M
1602
1/8"
26.0
ø12.5
ø4.8
ø2.6
ø2.4
M6
1603
3/16"
30.0
ø12.5
ø6.5
ø3.2
ø2.4
M6
1604
1/4"
34.0
ø12.5
ø8.6
ø3.6
ø2.4
M6

Diaphragm check valves

• Applicable medium: g as and liquid
• Installation method: straight-in hose
Standard valve: opening pressure 0.1-3.0Kpa (The opening force can also be customized according to customer needs, such as 5-10kpa 10-20kpa, etc.)
Non-standard valve : the optional scope of opening pressure 0.2-50.0Kpa,tolerance ± 20%,please confirm with our staff for the specific requirement
• Structure: diaphragm check valve

Hose connection size options

0216: Suitable for 3/32" inner diameter
hose interface 3/32"≈ 2.4mm
0316: Suitable for 3/16" inner diameter
hose interface 3/16"≈ 4.8mm
• 0416: Suitable for 1/4" inner diameter
hose interface 1/4"≈ 6.4mm


WHY AMBOHR OZONE GENERATORS ARE SUPERIOR

The bodies of two ends are injected using plastic articles.
• B etter uniformity of dimension.
The ultrasonic welding technique can make products solid and effectively.
• Reduce cost.


Product Application

ONE PASS & NON-RETURN


The perfect technology and excellent products ensure the smooth flow of gas and liquid, and 100% no backflow.

Auto Industry:Automobile fuel system, Wiper system and Carbon tank system Chemical Industry:Pesticide mixture and irrigation Food and Beverage:Coffee machine, Beer fresh-keeping, Liquid filling machine Industrial Machinery:Ink supply system, Fuel supply system、Water cycle refrigerating system Medical Auxiliary Instruments:Medical air bed、Oxygen generator, Rehabilitation system after surgery, Ozone sterilization device Swimming Pool and Hydrotherapy:Disinfecting system of circulating water Water treatment:Ozone ions purify water
