Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
(L)1080*(W)535*(H)1010mm
-
Product name:
-
Single Station Packing Machine
-
Advantage:
-
OEM
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Pillow Bag
-
Control system:
-
PLC+touch Screen
-
Optional Devices:
-
Data Printer
-
Model:
-
LDB-300D
-
Bag Material:
-
Multilayer composite premade bag
-
Size rage:
-
80-300 mm
-
Speed:
-
0-15 bag/min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
(L)1080*(W)535*(H)1010mm
-
Product name:
-
Single Station Packing Machine
-
Advantage:
-
OEM
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Pillow Bag
-
Control system:
-
PLC+touch Screen
-
Optional Devices:
-
Data Printer
-
Model:
-
LDB-300D
-
Bag Material:
-
Multilayer composite premade bag
-
Size rage:
-
80-300 mm
-
Speed:
-
0-15 bag/min
Mini Zip Lock Zipper Bag Pouch Doypack Filling And Sealing Packaging Packing Machine
Recommend Products
Contact us
Features
1.
Wide range of pouches:
All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
Product Paramenters
Specification
|
Model
|
LDB-300D
|
|
Bag Material
|
Multilayer Composite Premade Bag (e.g.: PET/PE)
|
|
Bag Type
|
3 Side Seal Bag, Stand-up Bag
|
|
Upgradable Bag Type
|
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
|
|
Size Range
|
80mm≤W≤300mm 100mm≤L≤400mm
|
|
Speed
|
0~15bags/min
|
|
Sealing Type
|
Straight grain, pitch is 1mm (Optional reticulate)
|
|
Sealing Width
|
10mm (5--20mm can be customized)
|
|
Voltage
|
220V, Single-phase, 50/60HZ, 1.2KW
|
|
Air Pressure
|
0.65Mpa
|
|
Air Consumption
|
0.3m³/min (Standard machine, no additional function)
|
|
Body Dimension
|
1770*600*1260mm
|
|
Packing Dimension
|
1860*710*1650mm (Export non-fumigation wooden case)
|
Basic Configurations:
|
Touch Screen
|
China Kinco 7 inches corlor touch screen
|
|
|
Languages
|
Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
|
|
|
PLC
|
Japan Panasonic
|
|
|
Cylinder
|
Taiwai Airtac (Can be upgraded to Japan SMC)
|
|
|
Vacuum Generator
|
China Airbest (Can be upgraded to Vacuum Pump);
|
|
|
Vacuum Component
|
Japan SMC;
|
|
|
Modular Control System For Vacuum Pressure
|
Japan SMC;
|
|
|
Modular Control System For Temperature:
|
China YUDIAN;
|
|
|
Electrical Component
|
Schneider / Omron;
|
|
|
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
|
|
|
|
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).
|
|
|

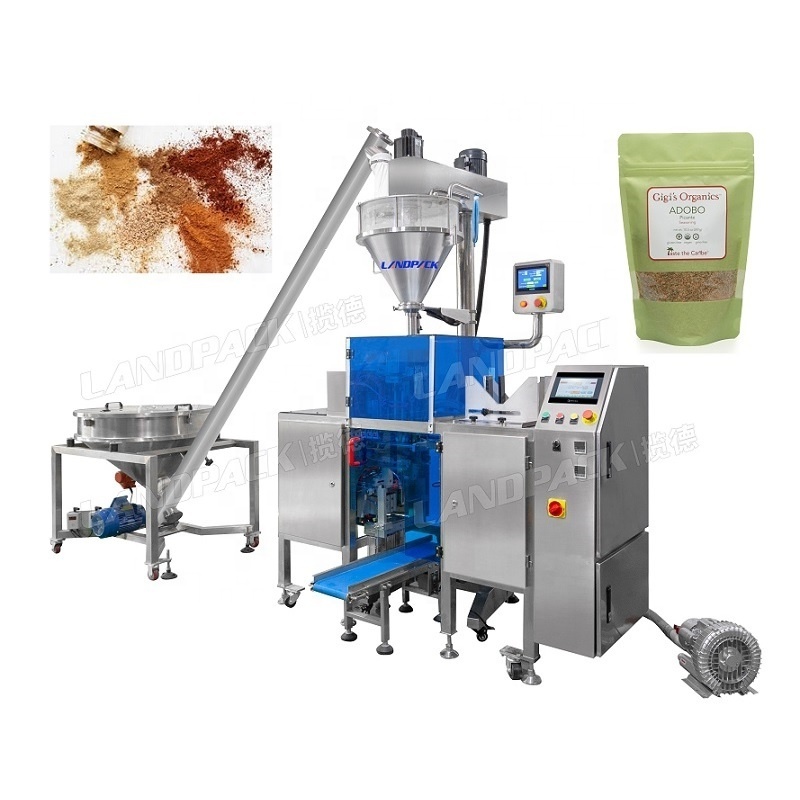

Application
Suitable for powder zipper bags, standing bags, pre-made bags packaging
such as washing powder, coffee powder, matcha powder, curry powder, seasoning powder, flour, protein powder, etc.
Washing powder doypack packing machine; C
offee powder
stand up pouch packing machine; M
atcha powder
zipper pouch packing machine etc.
