Quick Details
-
Usage:
-
Vegetable, fruit, meat cold storage
-
Cold room panel:
-
Insulating PU Panel
-
Condensing unit:
-
Air cooling, water cooling, evaporative cooling
-
Density:
-
40+/-2kg/m3
-
Cold room doors:
-
Hinged,sliding, swing type
-
Thickness of panel:
-
50/75/100/120/ 150/200mm
-
Thickness of Color Steel:
-
0.3,0.4,0.426,0.45, 0.5mm
Quick Details
-
Temperature:
-
0~-20℃ (+60~-70)F
-
Place of Origin:
-
Henan, China
-
Compressor brand:
-
Bitzer,Emerson copeland, Danfoss,Tecumesh or others
-
Usage:
-
Vegetable, fruit, meat cold storage
-
Cold room panel:
-
Insulating PU Panel
-
Condensing unit:
-
Air cooling, water cooling, evaporative cooling
-
Density:
-
40+/-2kg/m3
-
Cold room doors:
-
Hinged,sliding, swing type
-
Thickness of panel:
-
50/75/100/120/ 150/200mm
-
Thickness of Color Steel:
-
0.3,0.4,0.426,0.45, 0.5mm

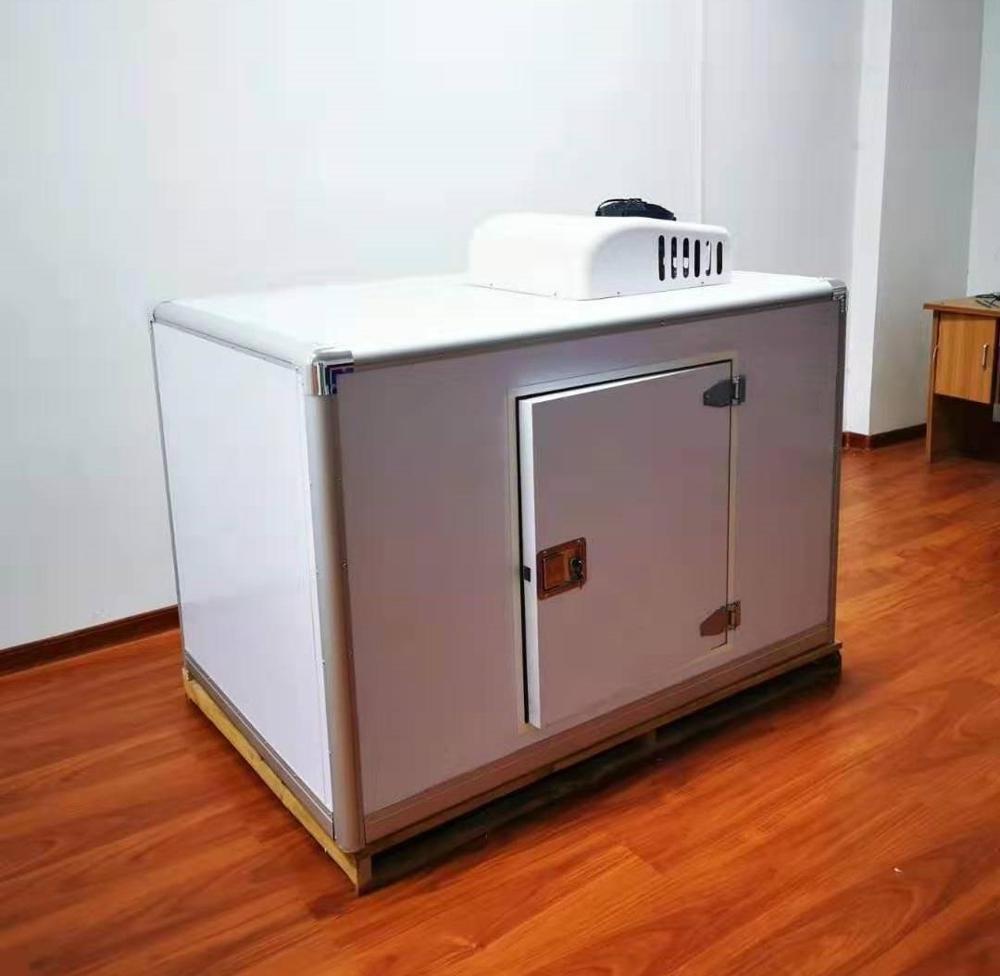

DC 12V/24V/48V Chiller Box Mobile Truck Cold Room for Cold Chain
Technical parameters:
Insulation assembled/integrated box
|
Configuration |
Model& specification |
|
Standard size |
1500*1000*1000mm(can be customized) |
|
Form material |
PU |
|
External material |
Colored steel plate/GRP/FRP/CFRT |
|
Wall thickness |
75mm |
|
Angle wrap |
Aluminium alloy |
|
Thermal conductivity |
0.018~0.024W/(M.K) |
Refrigeration unit
|
Specifications |
Cold storage |
Frozen |
|
Model |
MG-Z058-J48 |
MG-D150-J48 |
|
Rotor DC compressor |
48v270W |
48V560W |
|
Total Power |
380W |
680W |
|
Rated current |
6.1-7.4A |
10.1-11.4A |
|
High efficient fin type air-cooled condenser |
1.0L |
1.5L |
|
High efficient fin type air-cooled evaporator |
1.5L |
2.0L |
|
DC super wind air cooler |
SNOWFAM YY12038H24B |
SNOWFAM YY12038H24B |
|
Microcomputer digital temperature controller |
W 1308 |
W 1308 |
|
Controller button switch |
LG |
LG |
|
Refrigeration unit battery |
48V20AH |
48V32AH |
|
Temperature range |
0-8℃ |
-15~20℃ |
|
Refrigeration temperature |
To 0℃by 40~60 minutes (Ambient temperature ≤ 40 ℃ ) |
To - 20℃ by 50-90 minutes (Ambient temperature ≤ 40 ℃ ) |
|
Charging time |
8-10hours |
8-10hours |
The refrigerated box main parts are :
1. Cold storage panels
2. Refrigeration Unit
