Quick Details
-
Voltage:
-
380v
-
Power:
-
7kw
-
Dimension(L*W*H):
-
7000*3200*1460mm
-
Weight:
-
2700 kg
-
Name:
-
Toilet Tissue Paper Roll Production Line
-
Raw material:
-
Toilet Paper Parent Reel
-
Finished Products:
-
Packed Small Toilet Paper Rolls
-
Embossing unit:
-
Steel to Rubber Roller
-
Function:
-
Rewinding, Embossing, Perforating
-
Operation:
-
1-2 people
-
Machine Color:
-
Decided by Customers
-
Control system:
-
Frequency Converter Control
-
Drive way:
-
AC Frequency Converter
-
Certification:
-
ce
Quick Details
-
Production Capacity:
-
200 m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xingtu Machinery
-
Voltage:
-
380v
-
Power:
-
7kw
-
Dimension(L*W*H):
-
7000*3200*1460mm
-
Weight:
-
2700 kg
-
Name:
-
Toilet Tissue Paper Roll Production Line
-
Raw material:
-
Toilet Paper Parent Reel
-
Finished Products:
-
Packed Small Toilet Paper Rolls
-
Embossing unit:
-
Steel to Rubber Roller
-
Function:
-
Rewinding, Embossing, Perforating
-
Operation:
-
1-2 people
-
Machine Color:
-
Decided by Customers
-
Control system:
-
Frequency Converter Control
-
Drive way:
-
AC Frequency Converter
-
Certification:
-
ce
Product Description

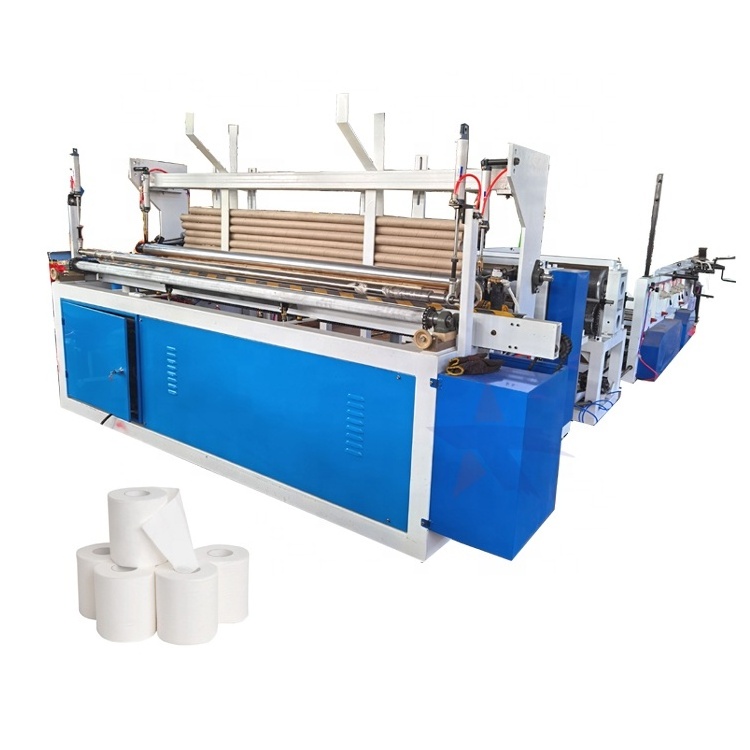

High Speed Fully Automatic Complete Production Line Small Scale Bathroom Toilet Tissue Paper Roll Making Machine Price In China
This
toilet paper rewinding machine
can rewind jumbo toilet paper roll into various small diameters without changing its width. The
diameter and tightness
of finished toilet rolls can be easily adjusted by change the settings on control panel, and output paper rolls are ready for cutter.
This toilet paper rewinder adopts
AC frequency conversion stepless speed regulation
, which can running stably while customers change its speed.
This machine has PLC system and a Human Machine Interface control panel so that one person can operate it very easily. It is an ideal machine for small toilet paper product making plant.
Product Display
Features:
1. Pneumatic loading jumbo toilet paper rolls.
2. Point to point embossing, patterns are clear and beautiful.
3. Perforating function enable people to tear the paper easily.
4. PLC control and HMI operation panel, simple to operate.
5. All the necessary equipment and spare parts will be included, like glue tank and air compressor.
1. Paper Core Feeding Part:
This machine has a core holder, therefore, customers can choose to make toilet rolls with or without cores. We also have the automatic core feeding toilet paper rewinding machine for your choice.
2. Jumbo Roll Stands:
It has 1-3 jumbo roll unwinding stands, which enable customers to adjust paper layers according to their needs.
3. Embossing Units:
Normally, the toilet paper rewinding machine is equipped with one set steel to rubber embossing rollers. We can also make double embossing rewinding machine or steel to steel embossing rollers according to customers’ requirement.
We will provide several patterns for you to choose. You can also tell us your design, we will customize embossing rollers for you!
4. Perforating Unit:
The finished product is clearly punched and easy to tear off. The perforating pitch can be adjusted according to customers' requirement.
Specification
|
Machine Model
|
1092
|
1575
|
2000
|
2200
|
2400
|
2600
|
2800
|
|||||||
|
Width of jumbo roll (mm)
|
1200
|
1800
|
2000
|
2200
|
2400
|
2600
|
3000
|
|||||||
|
Finished Toilet Roll Diameter
|
80~120mm (Tightness can be adjustable)
|
|
|
|
|
|
|
|||||||
|
Finished Toilet Roll Inner Diameter
|
32~60 mm
|
|
|
|
|
|
|
|||||||
|
Jumbo roll diameter (mm)
|
1200 (Other sizes please point out)
|
|
|
|
|
|
|
|||||||
|
Jumbo Roll Inner Diameter
|
76.2 mm(other sizes please point out)
|
|
|
|
|
|
|
|||||||
|
Perforation distance (mm)
|
4 blade,90~160mm; 2 blade,180~320mm;
|
|
|
|
|
|
|
|||||||
|
Production speed
|
160-200 m/minute
|
|
|
|
|
|
|
|||||||
|
Parameter set
|
Touching-screen HMI Operation System
|
|
|
|
|
|
|
|||||||
|
Controller
|
PLC program
|
|
|
|
|
|
|
|||||||
|
Mechanical driving
|
AC frequency converter, stepless speed regulation
|
|
|
|
|
|
|
|||||||
|
Air pneumatic system
|
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
|
|
|
|
|
|
|
|||||||
|
Power
|
4kw-10kw (380V 50Hz)
|
|
|
|
|
|
|
|||||||
|
Customized items
|
|
|
|
|
|
|
|
|||||||
|
Embossment
|
Single embossment, Double embossment, Edge embossment
|
|
|
|
|
|
|
|||||||
|
Embossment down roller
|
Rubber roller, steel roller
|
|
|
|
|
|
|
|||||||
|
Jumbo roll stander
|
1-3 plies
|
|
|
|
|
|
|
|||||||
|
Rewinding unit
|
Core or coreless
|
|
|
|
|
|
|
|||||||
|
Other special request for machine is welcome
|
|
|
|
|
|
|
|
|||||||
Production Process
1. Semi Automatic Toilet Paper Roll Production Line:
Toilet Paper Rewinding Machine----
Toilet paper roll bandsaw cutting machine
-----
Toilet paper rolls packing and sealing machine
2. Fully Automatic Toilet Paper Roll Production Line:
Toilet paper rewinding machine-----Fully automatic toilet paper roll cutting machine------Automatic toilet paper rolls packing machine
We supply the rewinding machine processing raw paper of 1.2m, 1.75m, 1.95m, 2.15m, 2.35m, 2.55m, 2.75m etc in width. All the models are available! Besides, as a one stop toilet tissue paper machine supplier, we also provide other toilet tissue paper processing machines, like paper rewinding slitting machine, paper cutting machine and packing machine, facial tissue paper making machine, pocket tissue paper making machine, paper tube core making machine etc. If you are interested, please contact us anytime!
Packing & Delivery
1. The toilet paper making machine will be packed with waterproof film and wooden box. The standard export package will ensure secure delivery of the machine.
2. The toilet pape machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
2. The toilet pape machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
