Product name:
-

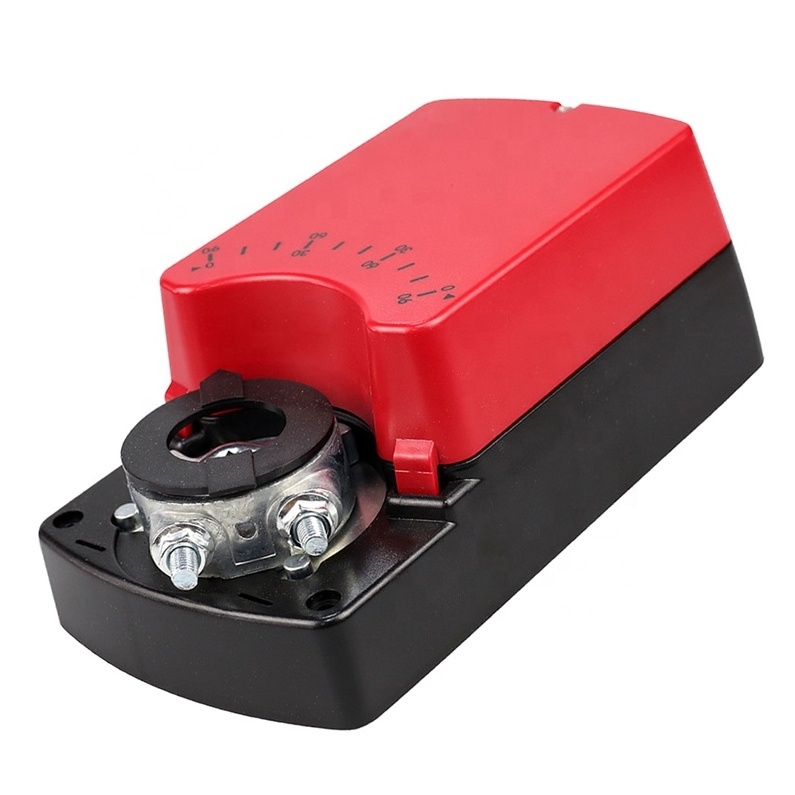

General Damper Actuator
-
Torque:
-
16Nm
-
Control:
-
Modulating 0(2)-10V 0(4)-20mA
-
Nominal Voltage:
-
AC/DC24V , AC100...240V
-
Damper size:
-
2.5m2
-
Auxiliary Switch:
-
None/2-SPDT
-
Running Time:
-
30S~55S(95°)
-
Sound power level:
-
45dB
-
Power consumption:
-
4.5W@Nominal toque; 0.5W@Holding
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAOFENG
-
Model Number:
-
CF-16NR24V-M/MS
-
Product name:
-
General Damper Actuator
-
Torque:
-
16Nm
-
Control:
-
Modulating 0(2)-10V 0(4)-20mA
-
Nominal Voltage:
-
AC/DC24V , AC100...240V
-
Damper size:
-
2.5m2
-
Auxiliary Switch:
-
None/2-SPDT
-
Running Time:
-
30S~55S(95°)
-
Sound power level:
-
45dB
-
Power consumption:
-
4.5W@Nominal toque; 0.5W@Holding
|
For operation of air control Damper Actuator in HVAC system and other machine system
|
|
|
|
|
||||
|
Toque:
|
16Nm
|
|
|
|
||||
|
Nominal voltage:
|
AC/DC 24V ; AC 100…240V
|
|
|
|
||||
|
Control:
|
0(2)-10V 0(4)-20mA Modulating
|
|
|
|
||||
|
Feedback:
|
0(2)-10V 0(4)-20mA Modulating
|
|
|
|
||||
|
-MS type include 2 group of auxiliary switch
|
|
|
|
|
||||
|
Torque range:Like 2Nm, 4Nm, 5Nm, 6Nm, 8Nm, 16Nm, 24Nm, 32Nm, etc...or Customized
|
|
|
|
|
||||
Model Selection Table
|
Torque
|
Running Time
|
Plwer Supply
|
Auxiliary Switch
|
Model Number
|
|
16Nm
|
30S~55S (95°)
|
AC/DC 24V
|
None
|
CF-16NR24V-M
|
|
|
|
|
2-SPDT
|
CF-16NR24V-MS
|
|
16Nm
|
30S~55S (95°)
|
AC 100…240V
|
None
|
CF-16NR220V-M
|
|
|
|
|
2-SPDT
|
CF-16NR220V-MS
|
Technical Specification
|
|
CF-16NR24V-M
|
CF-16NR24V-MS
|
CF-16NR220V-M
|
CF-16NR220V-MS
|
||||
|
Electrical data
|
|
|
|
|
||||
|
Nominal Voltage
|
AC/DC24V; 50/60Hz
|
|
AC100…240V; 50/60Hz
|
|
||||
|
Nominal Voltage range
|
AC/DC 19.2...28.8V
|
|
AC85...265V
|
|
||||
|
Power consumption
|
4.5W@Nominal toque ; 0.5W@Holding
|
|
|
|
||||
|
Wire sizing
|
0.5mm
2
|
|
|
|
||||
|
Terminal Specification
|
Max.2.0mm
2
|
|
|
|
||||
|
Functional data
|
|
|
|
|
||||
|
Torque
|
16Nm
|
|
|
|
||||
|
Damper size
|
2.5m
2
|
|
|
|
||||
|
Manual override
|
Gearing latch disengaged by push button, self-resetting
|
|
|
|
||||
|
1-SPDTAuxiliary Switch
|
None
|
2-SPDT
|
None
|
2-SPDT
|
||||
|
Angle of rotation
|
Max.95°,adjustable by mechanical stops
|
|
|
|
||||
|
Running time
|
30S~55S(95°)
|
|
|
|
||||
|
Sound power level
|
45dB
|
|
|
|
||||
|
Position indication
|
Mechanical
|
|
|
|
||||
|
Working conditions
|
|
|
|
|
||||
|
Protection class
|
Ⅲ (safety low voltage)
|
|
Ⅱ (totally insulated)
|
|
||||
|
Protection degree
|
IP54
|
|
|
|
||||
|
Ambient temperature
|
-20…+50℃
|
|
|
|
||||
|
Inventory temperature
|
-30…+80℃
|
|
|
|
||||
|
Humidity test
|
95%RH, non condensing /EN 60730-1
|
|
|
|
||||
|
Dimensions/Weight
|
|
|
|
|
||||
|
Dimensions
|
See “Dimensions”
|
|
|
|
||||
|
Shaft length
|
>50mm
|
|
|
|
||||
|
Shaft diameter
|
○
10…20mm
□
10X10...16X16 mm
|
|
|
|
||||
|
Weight
|
1.2-1.3 Kg
|
|
|
|
||||
View More Damper Actuator:
Chaofeng Technology (Ningbo) Co., Ltd. is a professional high-tech manufacturer of HVAC products. Our main products are General damper actuator, Spring return damper actuator, Fire and smoke damper actuator, Heating system valve and related HVAC products, Low Temperature Protection Controller, Electric ball valve, Float switch, Ball valve, Differential pressure switch etc...
Under the ISO9001-2015 international quality management system standard, Chaofeng has engaged in the research and development of high-tech products, having our own technical center and test facilities.
Over the years, the business principles of "Quality first, Reputation first, Customer first, Integrity-oriented" have been adhered by us to develop the market.
In the meantime, we have constantly improved product quality, paid attention to product innovation, research and development, so as to provide better products and services for the HVAC field.
Through years of efforts, we have exported our products to more than 20 countries in Europe, North America, Southeast Asia and so on.
Warmly welcome you to contact us to discuss any questions about our products and create value together.
We are expecting to build the positive and good connections with great companies all over the world!
A) Are you a manufacturer or a trader?
We are professional manufacturers in Ningbo China.
B) Do you offer OEM service?
Yes, we can.
C) Do you charge for your samples?
We supply sample free, and you will pay the cost of freight.
D) What‘s the minimum order?
Can be 1 piece if in stock.
E): How long is your delivery time?
Generally it's 4-6 days if the goods are in stock. Or it will take about 15-30 days for production, and according to the quantity.
