Quick Details
-
Brand Name:
-
sharphy
-
Model Number:
-
KR2201-4
-
Operating Temperature:
-
433MHZ
-
Product name:
-
wireless switch module
-
Wide voltage:
-
AC90-250V
-
RF working mode:
-
light switch
-
Item:
-
433mhz rf module switch
Quick Details
-
Max. Current:
-
50/60Hz
-
Max. Voltage:
-
AC85-250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sharphy
-
Model Number:
-
KR2201-4
-
Operating Temperature:
-
433MHZ
-
Product name:
-
wireless switch module
-
Wide voltage:
-
AC90-250V
-
RF working mode:
-
light switch
-
Item:
-
433mhz rf module switch

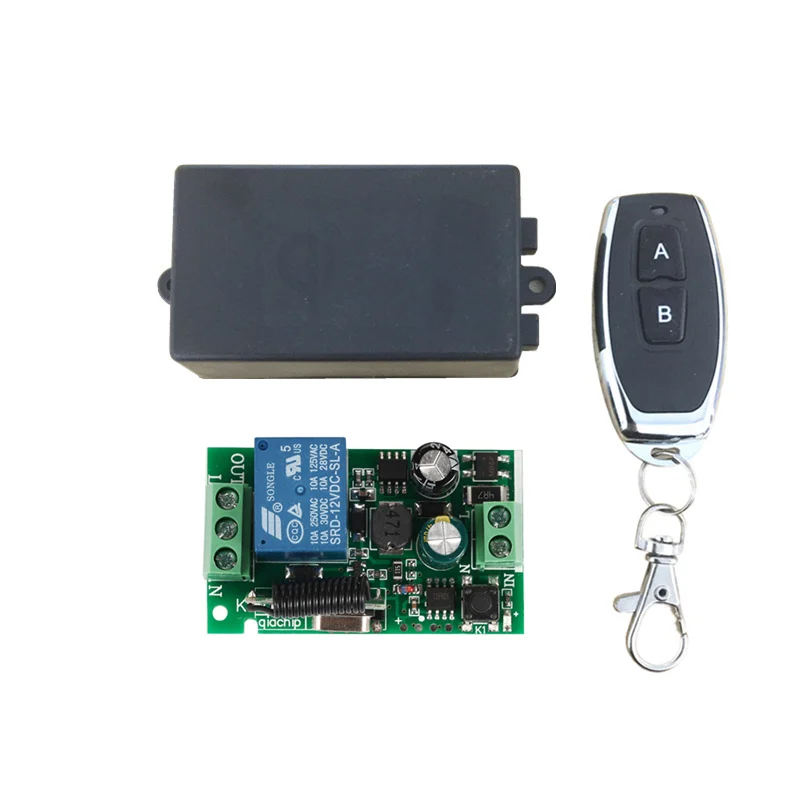

SHARPHY 433 MHz AC 85V 110V 220V 1 CH Wireless Remote Control Receiver Relay Switch Module LED Light Lamp Controller 433.92 MHz
Operating Frequency: 433MHz
Operation Introduction:
About Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control cannot work any more.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
Instructions:
The first step : Clear the receiver's memory
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control can not work any more.
Step Two : Match Wall Panel Remote Transmitter and Receiver
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be on , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
Learning successfully.
