Quick Details
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-200B
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Voltage:
-
Single phase 380V/220V ± 10%
-
Frequency:
-
50Hz ± 0.5Hz
-
Capacity:
-
10KVA
-
Inner Resistance:
-
2Ω at 380Vl; 0.6Ω
-
time:
-
0.04~6.3s,23 grades together
-
tube model:
-
XD4~2.9/100
-
Grid density:
-
N28
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-200B
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Voltage:
-
Single phase 380V/220V ± 10%
-
Frequency:
-
50Hz ± 0.5Hz
-
Capacity:
-
10KVA
-
Inner Resistance:
-
2Ω at 380Vl; 0.6Ω
-
time:
-
0.04~6.3s,23 grades together
-
tube model:
-
XD4~2.9/100
-
Grid density:
-
N28

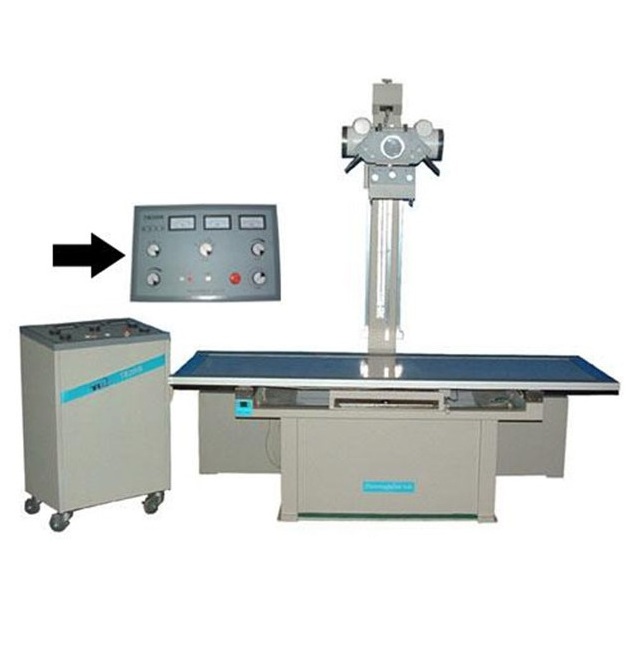

Product Display
Characteristics
1, Single bed with single bulb,
2, Prestore 8 kinds of photograph parameters and select, modify,
store the parameters under condition of choice,
3, Auto power and voltage control, kV continuous adjustable, auto Fault Alarm,
4, Premier high voltage with high power SCR zero control circuit
5, X-RAY subassembles is equipped with Tangential-pipe kits
6, Photograph bed, column, vibration Filter limiter integrated equipment
without necessity of up-and-down tunnel
7, Photography bed can be moved both laterally and vibrate Column can turn 4*90
8, Function of load chains, exposure time control ,Start and stop rotating anode,
Preheat filament, subassembles temperature control, and so on.
Product Details
|
Specification
|
|
|
|
|
Item
|
Content
|
Index
|
|
|
Demand of power supply
|
Voltage frequency
|
380V/220V±10 50Hz±0.5Hz
|
|
|
|
Internal resistance
|
220V:0.25Ω
|
|
|
Power supply
|
Adjustable range
|
380V±10at380V; 220V±10at220V
being adjustable continuously |
|
|
Radiographic
|
Voltage
|
50-100kV
|
|
|
|
Current
|
Small focus 50mA,100mA
Big focus 50,100,150,200mA |
|
|
|
Time
|
0.04-6.3s,20grades together grading
according to R10coefficient |
|
|
High-voltage generator
|
Capacity
|
15kVA(instantaneous)
|
|
|
|
Max DC output voltage
|
100kV
|
|
|
|
Max DC output current
|
200mA
|
|
|
X-ray tube
|
Model
|
XD51-20.40/125
|
|
|
|
Focus
|
Small focus:1×1mm,
Big focus:2×2mm |
|
|
Radiographic table
|
Table face(L×W×H)
|
2000mm×710mm×700mm
|
|
|
|
Moving range of table face
|
620mm×200mm
|
|
|
|
Ray-filter
|
Travel (in length):620mm
(in breadth):200mm |
|
|
|
|
Grid density N28
|
|
|
|
|
Convergence distance of 100cm
|
|
|
|
|
Grid ratio R8
|
|
|
Pillar of X-ray tube unit
|
Moving in length along radiographic table
|
1800mm or 1600mm
|
|
|
|
Distance to ground as moving up and down
(along upright post) |
630mm~1750mm
|
|
|
|
Rotary around the center of cross arm
|
±180º
|
|
|
|
Rotary around the shaft line of
X-ray annular tubes |
-10º~60º~+120º
|
|
|
Max size of cassette
|
356mm×432mm(14"×17")
|
|
|
Workshop:
Product packaging
Packing details:
Carton, also we can pack as customers requests.
