Quick Details
-
Brand Name:
-
Defond
-
Model Number:
-
DMB-1210-C-ADA32-01R
-
Max. Current:
-
3(3)A, 5A, 10.1A
-
Operating Temperature:
-
0-65℃
-
Protection Level:
-
IP30
-
LED:
-
no
-
Conductive Material:
-
Silver alloy
-
Electrical Life:
-
6000
-
Size:
-
20mmx10.6mmx6.5mm
-
Operating Force (range):
-
70gf Max.
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Pole:
-
1
-
Throw:
-
2
-
Certification:
-
UL1054
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125VAC, 250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Defond
-
Model Number:
-
DMB-1210-C-ADA32-01R
-
Max. Current:
-
3(3)A, 5A, 10.1A
-
Operating Temperature:
-
0-65℃
-
Protection Level:
-
IP30
-
LED:
-
no
-
Conductive Material:
-
Silver alloy
-
Electrical Life:
-
6000
-
Size:
-
20mmx10.6mmx6.5mm
-
Operating Force (range):
-
70gf Max.
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Pole:
-
1
-
Throw:
-
2
-
Certification:
-
UL1054
Product Description

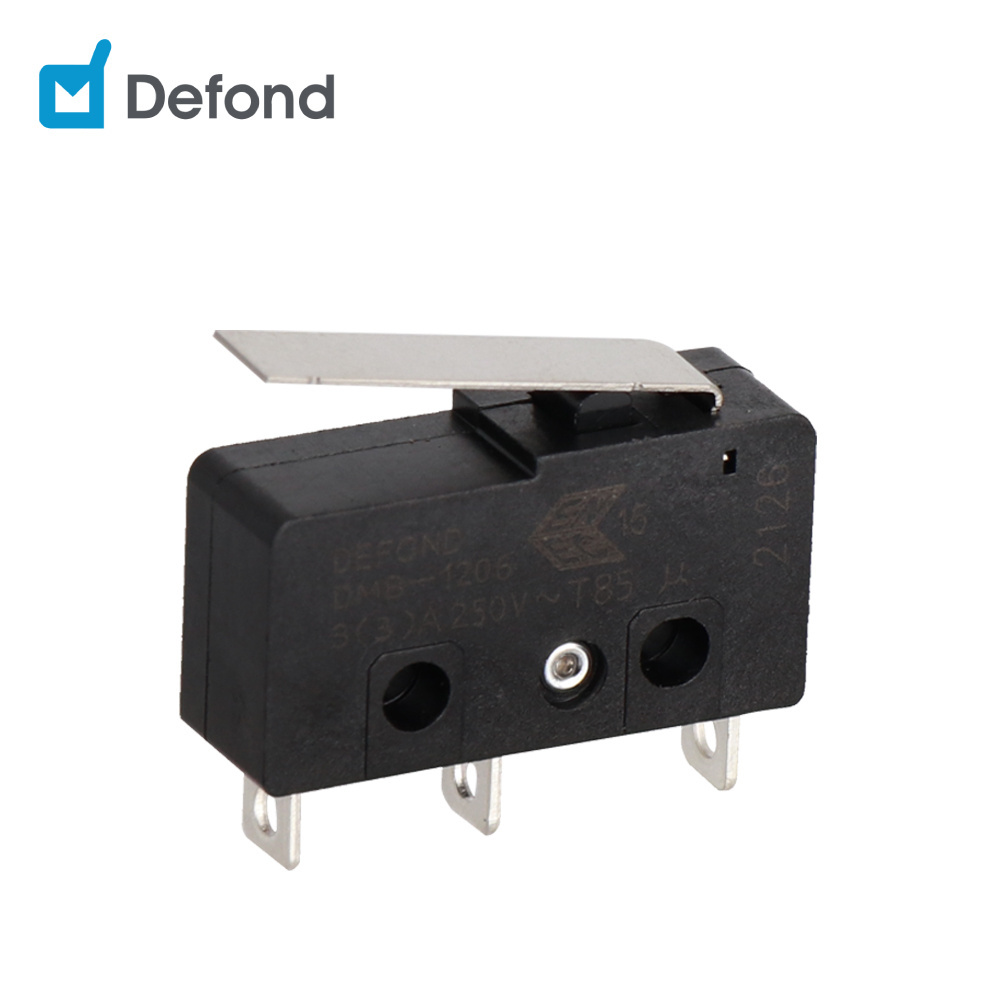

Long Lifespan Snap-Action Switch DMB-1210-C-ADA32-01R
Micro switches are widely used in different situations that require a very quick opening or closing of circuit. Once an external force is applied to the actuator, it produces immediate transfer of contacts from one position to another. Defond micro switches come in a range of actuator styles, sizes, and are known as low cost yet high reliability and durability.
Features
- Compact structure
- Quick action with high sensitivity and short traveling distance
- Long lifespan and high reliability
- Variety of terminals and levers shapes
Application
- Kitchen appliances: coffee machine, blender,
- Household appliances: vacuum cleaner
- Beautycare appliances: Hair dryer
