Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
flowpack
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
flowpack
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
small mini automatic pillow horizontal flow naan nan bread pack roti tortilla packaging machine for chapati burrito pie wrapping

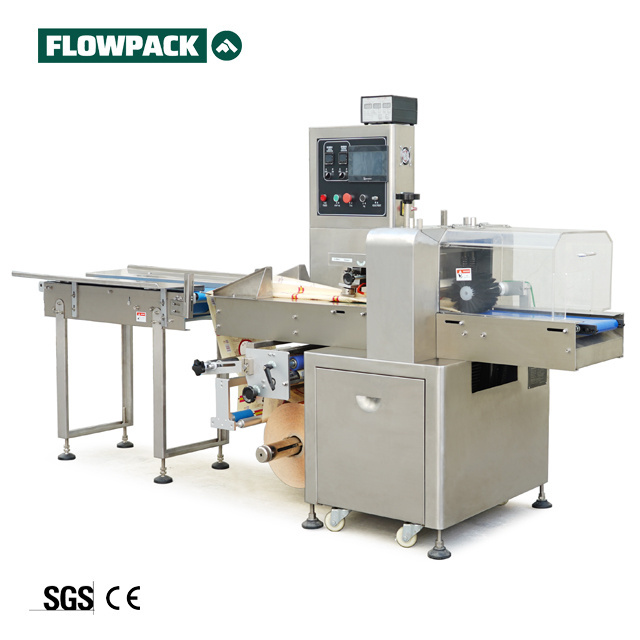

T he top sealing flow wrapper is an ideal packaging machine for soft, irregular, sticky, or difficult handling product packaging, and for multi-packs as well, the products are transported on top of the film from the former to the cutting section, minimizing jaws and ensuring superior package appearance.
Technical Parameter |
Item No. | XDX-250 | XDX-350 | XDX-450 |
Power | 220V,AC,2.4KW | 220V,AC,2.6KW | 220V,AC,2.8KW |
Capability* | 40-200PPM | 40-180PPM | 40-150PPM |
Maxi Film Width | 250mm (9.84") | 350mm (13.70") | 450mm (17.70") |
Bag Size*(L*W*H,mm) | 65-190,30-110,5-40 | 90-220,50-160,5-55 | 150-400,50-180,5-60 |
Machine Finishing | Stainless Steel | Stainless Steel | Stainless Steel |
Machine Dimensions | 3770*670*1450 | 3770*720*1450 | 4020*770*1450 |
*The capability and bag size depend upon the type and nature of the products to be wrapped as well as the type and quality of the wrapping materials and the feeding system.
• Slim body for saving working space, the sanitary design allows for easy clean-up.
• Intelligent control system, easy-operation HMI. Color mark tracking.
• Belt conveyor without pushers, easy to be integrated with existing production line or conveyor.
• Automatic stop function without product can avoid wasting packing film.
• The feed position can be randomly adjusted and easily operated.
• Multi-axis full servo-control, simple operation, and stable function. High control accuracy and less power dissipation.
Optional Features |
• Twin, triple, and quad jaws for high speed
• Ultra large touchscreen
Optional Accessories |
Date Coder | End seal gusset | Automatic Punching Device |
In-feed carrier block | Auto labeling device | Deoxidizer chute device |
Gas flushing device | Alcohol spraying device | Cards Auto feeder |
FLOWPACK horizontal packing machines have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc.
Package Styles |
1. Standard Pillow Style Bag
2. Pillow Style Bag With Hole Punch/Euro Slot
3. Gusseted Pillow Style Bag
- After inspection, the machines are wrapped with plastic film, and packed in seaworthy ply-wooden cases.
- ISO9001:2008 certified company.
- Our flow packing machines are CE-certified.
- We had 29 patents in the last five years.
• With more than 20 years of expertise and experience.
• Embrace flexibility and professionalism.
• No lowest price but always value for money.
• We treat our staff and suppliers as respectful partners.
• We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.
• Provide customized services for special orders according to specifications.
Long-term customers are happy customers and repeated customers: The goal of our activities is the long-term satisfaction of our customers through the supply of easy-use and reliable equipment.
F lowpack has a renowned long-standing reputation for designing and manufacturing reliable packaging equipment and solutions. Proven with daily use for production in many foods and non-food industry companies worldwide, we can ensure the best performance and results.
W e are proud to serve leading companies from a variety of fields for more than 20 years with our outstanding products and services.
