Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T990C
-
Warranty:
-
1 Years
-
product:
-
truck tire changer
-
Color:
-
grey or customized
-
Max. wheel diameter:
-
98"(2500mm)
-
Max. wheel width:
-
47"(1200mm)
-
Max. wheel weight:
-
1600kg
-
Voltage:
-
220V or 380V
-
wheel clamping size:
-
14"-56"
-
Hydraulic pump motor:
-
3kw 380V 3Ph (220V optional)
-
Net weight:
-
1150kg
-
Package size:
-
2310*2080*1100mm
Quick Details
-
Motor Power:
-
3kw
-
Operating Pressure:
-
130bar
-
Power Supply:
-
220/380
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T990C
-
Warranty:
-
1 Years
-
product:
-
truck tire changer
-
Color:
-
grey or customized
-
Max. wheel diameter:
-
98"(2500mm)
-
Max. wheel width:
-
47"(1200mm)
-
Max. wheel weight:
-
1600kg
-
Voltage:
-
220V or 380V
-
wheel clamping size:
-
14"-56"
-
Hydraulic pump motor:
-
3kw 380V 3Ph (220V optional)
-
Net weight:
-
1150kg
-
Package size:
-
2310*2080*1100mm

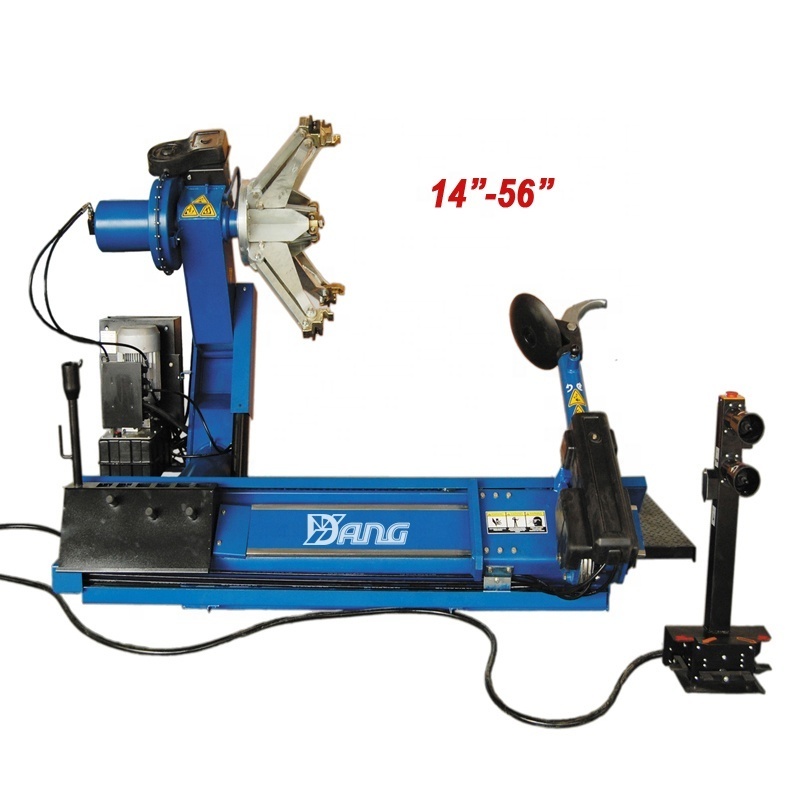

1. Pictures of truck tire changer
2. Main features of truck tire changer
1. Automatic tyre changer for large trucks, agricultural vehicle, buses and large-scale construction vehicle.
2. Movable control platform, convenient for operate and observe.
3. Operation voltage 24V makes safe and reliable.
4. The arm with the features of high and low speed rotation and both directions rotation to mounting / demounting all type of tyres.
5. The tool bracket, lifting arm and clamps are controlled by hydraulic system.
3. Specifications
Max. wheel diameter----------------------- 98"(2500mm)
Handles wheels rim from-----------------------14" to 56"
Max. wheel width---------------------------- 47"(1200mm)
Max. wheel weight--------------------------2000kg
Hydraulic pump motor--------3kw 380V 3Ph (220V optional)
Spindle motor-------------------3kw 380V 3Ph (220V optional)
Net weight-----------------------------------1150kg
Package size-------------------------------- 2310*2080*1100mm
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
