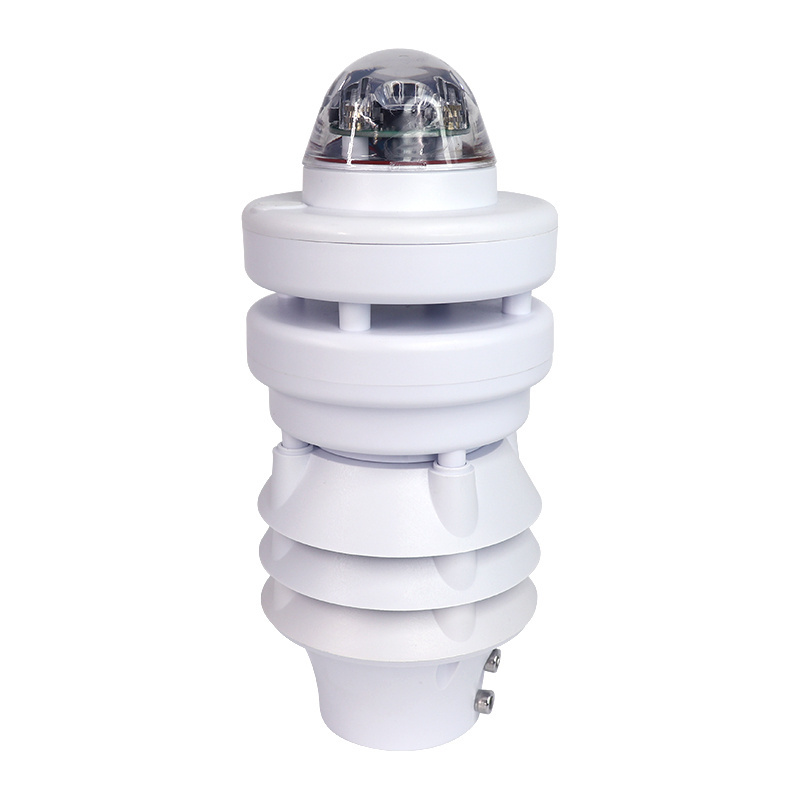

wholesale 6 in 1 Integrated design High precision XF600L Compact Weather Station

wholesale 6 in 1 Integrated design High precision XF600L Compact Weather Station

FOB Reference Price: Get Latest Price

≥1 Sets

US $375

≥50 Sets

US $360

≥75 Sets

US $358

≥100 Sets

US $355

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XF600L

Color:: white, White

Product name:: All-in-one Sensor

Power supply:: DC 9-24V

Wind speed:: 0-40m/s

Ingress Protection:: IP65

Output:: RS485 (Modbus)

Power consumption:: <1W@12V

Size:: 116*260mm

MOQ:: 1 SET

Quick Details

Warranty:: 1 Year, 1 Year

Place of Origin:: Hebei, China

Brand Name:: yantai

Model Number:: XF600L

Color:: white, White

Product name:: All-in-one Sensor

Power supply:: DC 9-24V

Wind speed:: 0-40m/s

Ingress Protection:: IP65

Output:: RS485 (Modbus)

Power consumption:: <1W@12V

Size:: 116*260mm

MOQ:: 1 SET

Products Description

Measure item	Principle	Range	Resolution	Accuracy
Atmospheric temperature		-40-85℃	0.1℃	±0.3℃ (@25℃）
Atmospheric humidity		0-100%RH	0.01%RH	±3%RH (10%-80%RH,no condensation）
Atmospheric pressure		500-1100 hpa	0.1hpa	±0.5hpa（25℃，950-1100hpa）
Wind speed	Ultrasonic	0-40m/s	0.01m/s	±(0.5+0.05V) M/S
Wind direction	Ultrasonic	0-359.9°	0.1°	±5°(风速＜10 m/s时)
Rainfall	Optical	0-200mm/h	0.2mm
Supply	DC 9-24V
Operating Temperature	-30℃-70℃
Output	Standard product with RS485 interface, ModbusRTU; Customization option SDI-12(Extra costs apply)
Maximum Output Frequency	Passive Mode: 1/S Active Mode: 1/min
Fixed form	A) Sleeve fixed； B)Flange adapter fixed
Fixed Trestle	Optional: 1.5 meter, or 1.8 meter bracket (extra cost apply)
Cable	3 meter cable line (Optional: 10 meter cable line available for extra cost )
Ingress Protection	IP65
Main material	ABS Plastic

Product Size and Details

Feature 1: 6 parameters in 1 weather station with high precise measurement
Air Temperature, Humidity, Atmospheric Pressure, Ultrasonic Wind Speed, Wind Direction, Optical Rainfall

Feature 2: MINI Size

Feature 3: Ultrasonic wind speed and direction sensor
High precise free maintenance wind speed and direction se nsor.

Function 5: Optical rain sensor
Optical rainfall sensor,

High-precision, free-maintenance.

Operation Show

Certificate

Certificate Introduction

Packing&Shipping

Company Introduction

Handan Yantai Import And Export Co., Ltd. (“Yantai Import & Export”), www.yantaisensor.com, founded in March 2023. Our company is an import and export company specializing in solar radiation, air, water, soil and weather sensor products and solutions. Currently, the products we sell include: Ultrasonic wind speed and direction sensor, Solar radiation, water quality, hydrography, sensors, compact weather stations, and other products. These products are widely used in intelligent agriculture, intelligent environmental protection, intelligent transportation, intelligent electric power, new energy, hydrography and water quality, and other industries. Yantai Import and Export adheres to the corporate philosophy of "bringing in, going out", constantly optimizes and expands its product series to improve the company's product diversification and expand the scale of the international market. The company is committed to providing global customers with high-quality products and services, welcome friends at home and abroad to visit, guidance and business negotiations!
