Use automatic welding machine to connect solar cells in series
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25YEARS
-
Brand Name:
-
TANFON
-
Model Number:
-
TFL500W-700W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1143*35mm
-
Delivery Time:
-
15days
-
Front Cover:
-
3.2 mm Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Energy System Projects
-
Material:
-
Monocrystalline Silicon
-
Max. Series Fuse:
-
30/35A
-
Power Tolerance:
-
0~+5W
-
Weight:
-
27.6kg
-
Product name:
-

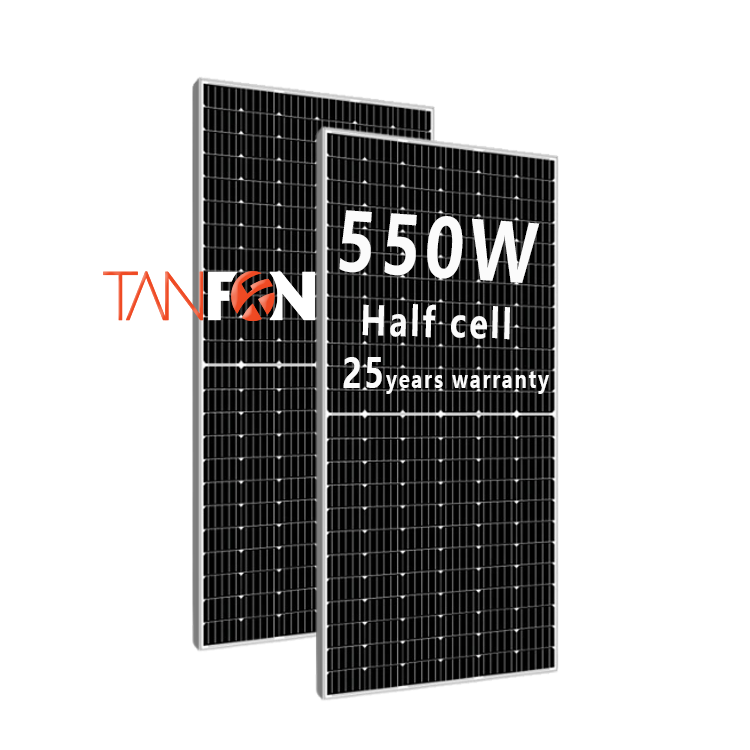

High Efficiency Panel Solar 400W-700W Solar panel
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
22.9%
-
Warranty:
-
25YEARS
-
Brand Name:
-
TANFON
-
Model Number:
-
TFL500W-700W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1143*35mm
-
Delivery Time:
-
15days
-
Front Cover:
-
3.2 mm Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Energy System Projects
-
Material:
-
Monocrystalline Silicon
-
Max. Series Fuse:
-
30/35A
-
Power Tolerance:
-
0~+5W
-
Weight:
-
27.6kg
-
Product name:
-
High Efficiency Panel Solar 400W-700W Solar panel
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
shingled solar panels 540w 545w 550w 555w solar cell off grid solar system solar panel 1000w 550W solar panel 550w
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|||||
|
Moduel
|
580W
|
585W
|
590W
|
600W
|
610W
|
|||||
|
Rated Maximum Power at STC
|
580W
|
585W
|
590W
|
600W
|
610W
|
|||||
|
Optimum operating voltage (Vmp)
|
39.42v
|
39.450V
|
39.49v
|
39.502V
|
39.520V
|
|||||
|
Optimum operating current ( lmp)
|
14.71A
|
14.83A
|
14.94A
|
15.19A
|
15.44A
|
|||||
|
Open-circuit voltage( Voc)
|
48.08V
|
48.08V
|
48.077v
|
48.081V
|
48.09v
|
|||||
|
Short-circuit current (lsc)
|
15.45A
|
15.57A
|
15.69A
|
15.95A
|
16.21A
|
|||||
|
Module Efficiency(%)
|
21.02%
|
21.23%
|
21.45%
|
21.66%
|
21.88%
|
|||||
|
Power Tolerance
|
0 ~ +3%
|
|
|
|
|
|||||
|
Weight
|
25.6kg
|
|
|
|
|
|||||
|
Front Glass
|
White toughened safety glass, 3.2mm
|
|
|
|
|
|||||
|
Standard Test Condition(STC)
|
1000W/m2 irradiance, 25°C cell temperature, AM1.5
|
|
|
|
|
|||||
|
Back Sheet
|
high weatherability backsheet
|
|
|
|
|
|||||
|
Frame
|
Anodized aluminum profile
|
|
|
|
|
|||||
|
Junction Box
|
IP68,TUV,two diodes
|
|
|
|
|
|||||
|
Cable
|
Length 1200mm, 1×4mm²
|
|
|
|
|
|||||
|
Connector
|
Compatible with MC4
|
|
|
|
|
|||||
|
Temperature Characteristics
|
|
|
|
|
|
|||||
|
NMOT
|
42.3℃(±2)
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
-0.27%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
0.04%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pm
|
-0.34%/℃
|
|
|
|
|
|||||
|
Maximum Ratings
|
|
|
|
|
|
|||||
|
Maximum System Voltage [V]
|
DC 1500IEC)
|
|
|
|
|
|||||
|
Series Fuse Rating [A]
|
20
|
|
|
|
|
|||||
|
Maximum Surface Load Capacity [Pa]
|
5,400
|
|
|
|
|
|||||
|
Temperature Range [°C]
|
– 40~+ 85
|
|
|
|
|
|||||
|
Withstanding Hail
|
Maximum diameter of 25 mm with impact speed of 23 m/s
|
|
|
|
|
|||||
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string.
typeset the battery string.
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
World famous cooperative brand
FAQ
A: What are your main products?
We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory.
F: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with well-known brands such as Jinko, JA, TRW, etc., and can provide large-brand solar energy series products.
