Quick Details
-
Voltage:
-
380V/220V 50-60Hz
-
Place of Origin:
-
Zhejiang, China
-
Year:
-
2022
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
L1008*W952*H1785mm
-
Weight (KG):
-
500
-
Applicable Materials:
-
Liquid and ointment
-
Number of injection needles:
-
1 needle
-
Compressed Air:
-
0.55-0.75Mpa 15L/S
-
Applicable Syringe Specifications:
-
0.5-80ml
-
Filling Accuracy:
-
≤±1-2%
-
Total Power:
-
3 KW
-
Silicon oil assembly:
-
Japanese import customization
-
Feeding capacity:
-
0-180 units / min (Adjustable)
Quick Details
-
Production Capacity:
-
2400-2700 p/h
-
Automatic Grade:
-
Automatic
-
Driven Type:
-
Electric
-
Voltage:
-
380V/220V 50-60Hz
-
Place of Origin:
-
Zhejiang, China
-
Year:
-
2022
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
L1008*W952*H1785mm
-
Weight (KG):
-
500
-
Applicable Materials:
-
Liquid and ointment
-
Number of injection needles:
-
1 needle
-
Compressed Air:
-
0.55-0.75Mpa 15L/S
-
Applicable Syringe Specifications:
-
0.5-80ml
-
Filling Accuracy:
-
≤±1-2%
-
Total Power:
-
3 KW
-
Silicon oil assembly:
-
Japanese import customization
-
Feeding capacity:
-
0-180 units / min (Adjustable)
Products Description

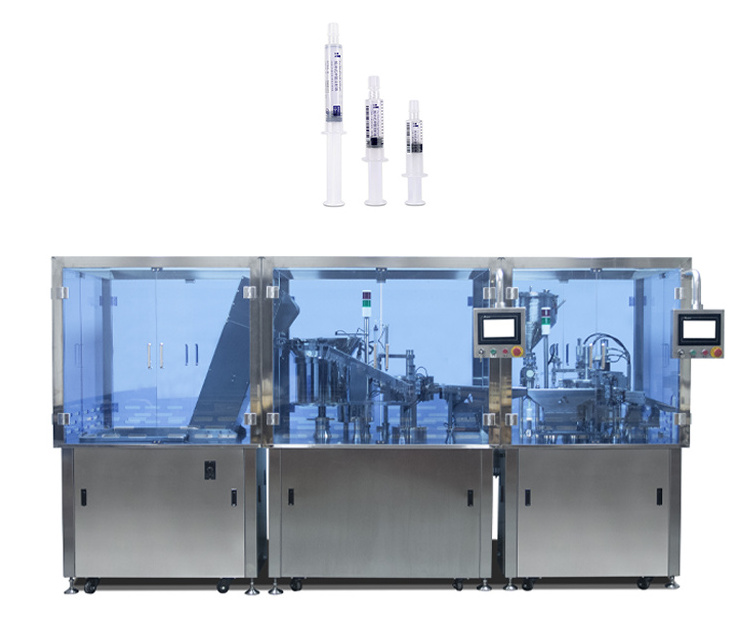

This product is specially designed by our company for the filling of plastic syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is simple to operate, and is equipped with intelligent detection devices, with high automation, high work efficiency, convenient maintenance, and the technology can reach the current domestic industry advanced level.
Main Technical Data
|
filling machine
|
|
|
|
Applicable materials
|
Water agent and ointment
|
|
|
Insyringe syringe applicable
|
0.5-80ml
|
|
|
Filling accuracy
|
≤±1-2%
|
|
|
Number of injection needles
|
One
|
|
|
productive power
|
1800-2700 branches / h
|
|
|
gross power
|
3KW
|
|
|
voltage
|
380V/220V 50-60Hz
|
|
|
group installed equipment
|
|
|
|
Applicable
package material
|
Custom plastic syringes
|
|
|
Insyringe syringe applicable
|
5-80ml
|
|
|
Silicon oil assembly
|
Japanese import customization
|
|
|
noise
|
≤ 60 decibels
|
|
|
production capacity
|
1800-2700 branches / h
|
|
|
gross power
|
3KW
|
|
|
voltage
|
380V/220V 50-60Hz
|
|
|
auto loading conveyor
|
|
|
|
Applicable package material
|
Custom plastic syringes
|
|
|
Insyringe syringe applicable
|
5-80ml
|
|
|
noises
|
≤ 60 decibels
|
|
|
Feeding capacity
|
0-180 units / min (Adjustable)
|
|
|
gross power
|
1.5KW
|
|
|
voltage
|
380V/220V 50-60Hz
|
|
|
physical dimension
|
L1100×W952×H1785mm
|
|
|
Max forming depth
|
12mm
|
|
|
Cutting frequency
|
0-25
|
|
|
Packing material
|
PVC/PE(0.2-0.4)×120mm
|
|
|
Capacity
|
1-50ml
|
|
|
Indtalled power
|
6.5Kw
|
|
|
Voltage
|
380V/50Hz
|
|
|
Machine’s weight
|
850Kg
|
|
|
Quter size(L×W×H)
|
3200×850×1400mm
|
|
If You Need Other Types Of
Syringe Filling
Machines,
Please Send An Inquiry To Get
Features
1.
This product is widely used for filling and capping of various types of plastic syringes, and special types can be customized.
3. The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high
temperature, and has high filling accuracy.
4. The conveying and sorting of the cover is realized by the vibrating plate, which adopts the SUS 316L stainless steel clean
plate, which has a bright surface treatment and no clean dead corners.
2.
The surface is made of SUS 304 stainless steel, and the contact parts are made of SUS 316L stainless steel and silicon rubber, which fully meets the requirements of GMP specifications.
3. The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high
temperature, and has high filling accuracy.
4. The conveying and sorting of the cover is realized by the vibrating plate, which adopts the SUS 316L stainless steel clean
plate, which has a bright surface treatment and no clean dead corners.
5.
Adopting internationally well-known electrical components, implementing non-interference modular control, all synchronous actions are controlled by servo motors, which are accurate and reliable, and easy to operate.
6.
The operation of the motor is controlled by the PLC programming controller, and the human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
7.
Fully automatic operation, automatic filling, automatic capping, and automatic capping.
8.
The method of filling the syringe head can eliminate the air inside the syringe to the greatest extent and improve the
qualification rate.
qualification rate.
9.
Modular design, easy to locate, easy to expand, can be used as a stand-alone machine or connected to hoist, assembly machine, rotary rod machine, labeling machine and other equipment to form a production line.
10.
Optional 100-level laminar flow hood to achieve high-demand clean production.
Details Images
Auto Loading Conveyor
Auto Loading
Just place the full box of syringes in the conveyor to save labor.
Group Installed Equipment
Syringe tube loading guider
Syringe sort of vibrating plate will sort of the syringe tubes and send to the loading guider one by one, loading guider will send syringe tub into turn table.
Assembling Station
Assembling equipment, Japanese import customization Silicon oil assembly.
Filling Machine
Filling Station
Controlled by the perlistaltic pump,high precision and easy clean.
Capping Station
Automatic Arranging thelids by vibrating disk(customby the dimension of your syringe).Automatic capping the lid on syringe.
Output Station
Automatic output finish product.
