Quick Details
-
Voltage:
-
380V/50Hz/3ph
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
N/A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TFAUTENF
-
Model Number:
-
TF-ES8
-
Warranty:
-
12 months
-
Product name:
-

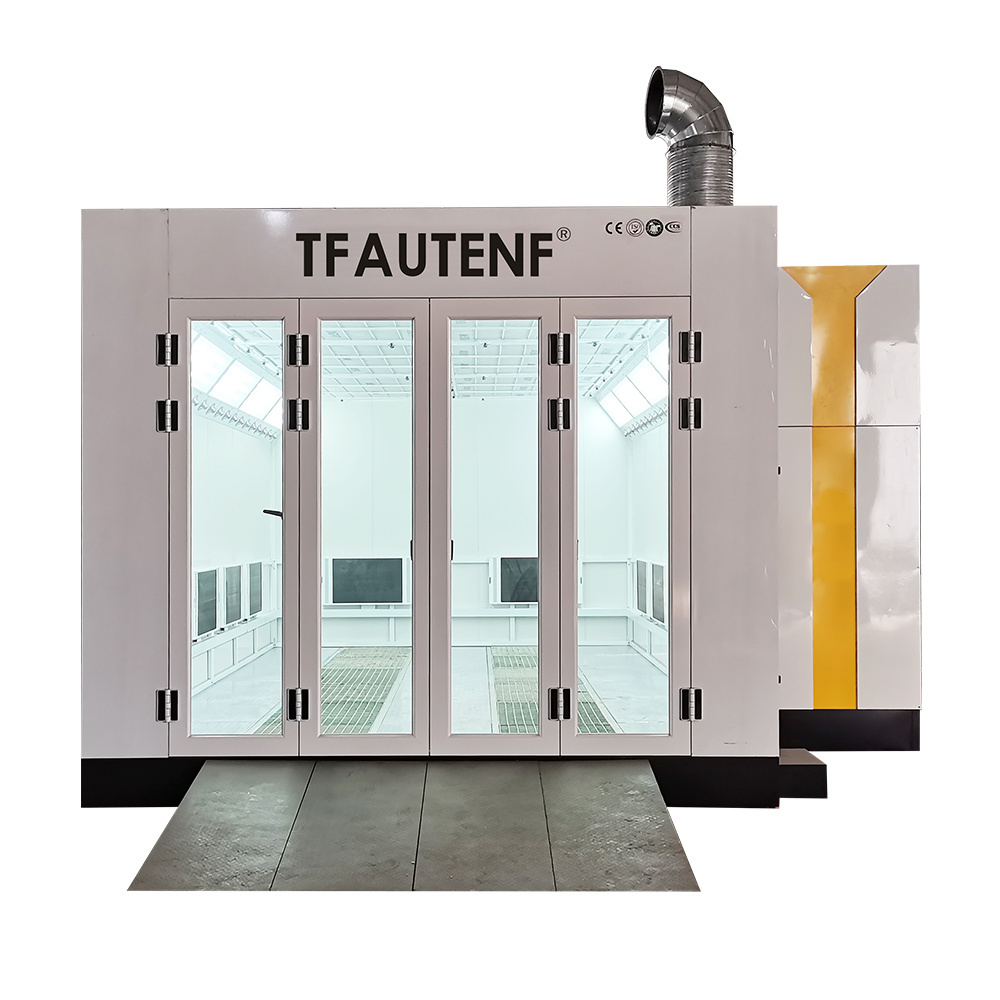

car spray booth
-
Heating system:
-
nano heating
-
Inlet fan:
-
2 x 3 KW centrifugal fans
-
Exhaust fan:
-
1 x 5.5 KW centrifugal fan
-
Wall panel:
-
EPS 50mm
-
Basement:
-
steel structure
-
Main door:
-
4 folds toughened glass door
-
No-load airflow speed:
-
>= 0.35 m/s
-
Ceiling lights:
-
10 units * 4 pcs LED lights
-
Filter system:
-
pre filter + ceiling filter + floor filter
Quick Details
-
Power:
-
43 KW
-
External Size:
-
7000*5200*3400mm (L*W*H)
-
Internal Size:
-
6900*3900*2650mm (L*W*H)
-
Voltage:
-
380V/50Hz/3ph
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
N/A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TFAUTENF
-
Model Number:
-
TF-ES8
-
Warranty:
-
12 months
-
Product name:
-
car spray booth
-
Heating system:
-
nano heating
-
Inlet fan:
-
2 x 3 KW centrifugal fans
-
Exhaust fan:
-
1 x 5.5 KW centrifugal fan
-
Wall panel:
-
EPS 50mm
-
Basement:
-
steel structure
-
Main door:
-
4 folds toughened glass door
-
No-load airflow speed:
-
>= 0.35 m/s
-
Ceiling lights:
-
10 units * 4 pcs LED lights
-
Filter system:
-
pre filter + ceiling filter + floor filter
Product Description
Specifications
|
Spray booth size:
|
|
|
|
External size
|
7000 × 5200 × 3400 mm (L×W×H)
|
|
|
Internal size
|
6900 × 3900 × 2650 mm (L×W×H)
|
|
|
Main door size
|
4 folds tempered glass door, 3000 × 2600mm (W×H), with spray handle & cast aluminum lock
|
|
|
Personal door size
|
1 fold, 650 × 2000mm (W×H), with handle & anti-explosion lock
|
|
|
Main system specifications:
|
|
|
||
|
|
Wall panel
|
50 mm EPS with 0.45 mm color steel plate, with galvanized steel roof
|
||
|
|
Basement
|
Galvanized steel assembly, full metal structure, height: 280mm
5 rows of steel grids (can be customized) 2 pcs of ramps,each size: 970 × 2000mm (W × L), corrugated plates construction |
||
|
|
Inlet fan
|
2 × 3KW YDW double-intake centrifugal fans
Total air capacity: 20000m³/h, rpm:900 |
||
|
|
Exhaust fan
|
1 × 5.5KW YDW double-intake centrifugal fan
Total air capacity: 15000 m3/h, rpm:900
|
||
|
|
Airflow speed
|
0.35 m/s, ventilation rate: 280 times/h
|
||
|
|
Cabinet size
|
2900 × 1050 × 3600 mm (L×W×H)
|
||
|
Heating system
|
Nano-heating
|
10 units black crystal plate, each unit is 3KW
|
||
|
Lighting system
|
Ceiling light
|
8 units*4 pcs=32 pcs*16W LED tubes,with electronic ballast
|
||
|
Filtering system
|
Pre filter
|
capture more than 10μm particles,filtering rate＞83%
|
||
|
|
Ceiling filter
|
capture more than 4μm particles,filtering rate＞98%
|
||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
||
|
Control system
|
Function
|
Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch,
emergency stop etc |
||
|
Working voltage
|
|
380V/50Hz/3ph (can be customized)
|
||
|
Working power
|
|
43KW
|
||
|
Notes: Color, voltage, basement type can be customized.
|
|
|
||
