Quick Details
-
Model Number:
-
BRI-DT301
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Input Voltage:
-
120/230(single phase)/277/347 VAC, 50/60Hz
-
Motor:
-
1/4HP-120VAC, 50/60Hz
-
1/4HP-120VAC, 50/60Hz:
-
UL
-
PIR Adjustment:
-
50% or 100% (DIP switch 1)
-
Adjustable Light Level:
-
10FC-300FC
-
Warranty:
-
5 Years
-
Operating Temperature:
-
32°to 131°F (0°to 55°C)
-
PIR Coverage:
-
1600ft²
Quick Details
-
Usage:
-
For commercial lighting automation
-
Mounting Type:
-
Ceiling Mounted
-
Description:
-

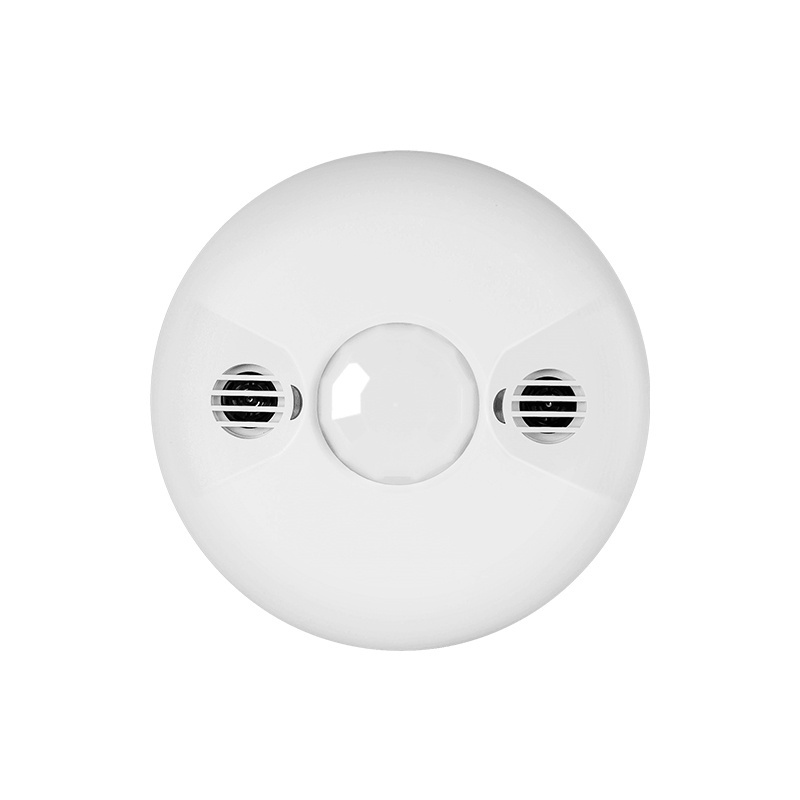

PIR sensor, motion sensor
-
Model Number:
-
BRI-DT301
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Input Voltage:
-
120/230(single phase)/277/347 VAC, 50/60Hz
-
Motor:
-
1/4HP-120VAC, 50/60Hz
-
1/4HP-120VAC, 50/60Hz:
-
UL
-
PIR Adjustment:
-
50% or 100% (DIP switch 1)
-
Adjustable Light Level:
-
10FC-300FC
-
Warranty:
-
5 Years
-
Operating Temperature:
-
32°to 131°F (0°to 55°C)
-
PIR Coverage:
-
1600ft²
Specifications
|
Voltage
|
120/230(single phase)/277/347 VAC, 50/60Hz
|
|
Incandescent
|
800W-120VAC, 50/60Hz
|
|
Fluorescent
|
800VA-120VAC,1600VA-277VAC, 50/60Hz
|
|
Motor
|
1/4HP-120VAC, 50/60Hz
|
|
Operating Temperature
|
32°to 131°F (0°to 55°C)
|
|
Adjustable Light Level
|
10FC-300FC
|
|
Adjustable Time Delay
|
5 Sec. to 30 Min.
|
|
PIR Adjustment
|
50% or 100% (DIP switch 1)
|
|
Ultrasonic Adjustment
|
Minimum to Maximum (trimpot 1)
|
|
PIR Coverage
|
1600ft²
|
|
Ultrasonic Coverage
|
1000ft²
|
