Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CDOCAST
-
Model Number:
-
TrueX 900
-
Focal Length:
-
/
-
Wavelength Range:
-
/
-
Product name:
-
Handheld Xrf mineral Analyzer
-
Application:
-
Mineral
-
Detector:
-
Si-PIN
-
Accuracy:
-
0.05%
-
Display:
-
4.3-inch industrial-grade resistive touch screen
-
Range:
-
All elements between Mg and U
-
Light Source:
-
Spectrum LED Light Source
-
Language:
-
Multi language
-
Heat dissipation:
-
T-slot radiator
Quick Details
-
Warranty:
-
2 years, 2 years
-
Size:
-
53*23*45cm
-
Weight:
-
1.6kg
-
Place of Origin:
-
China
-
Brand Name:
-
CDOCAST
-
Model Number:
-
TrueX 900
-
Focal Length:
-
/
-
Wavelength Range:
-
/
-
Product name:
-
Handheld Xrf mineral Analyzer
-
Application:
-
Mineral
-
Detector:
-
Si-PIN
-
Accuracy:
-
0.05%
-
Display:
-
4.3-inch industrial-grade resistive touch screen
-
Range:
-
All elements between Mg and U
-
Light Source:
-
Spectrum LED Light Source
-
Language:
-
Multi language
-
Heat dissipation:
-
T-slot radiator
Product Description

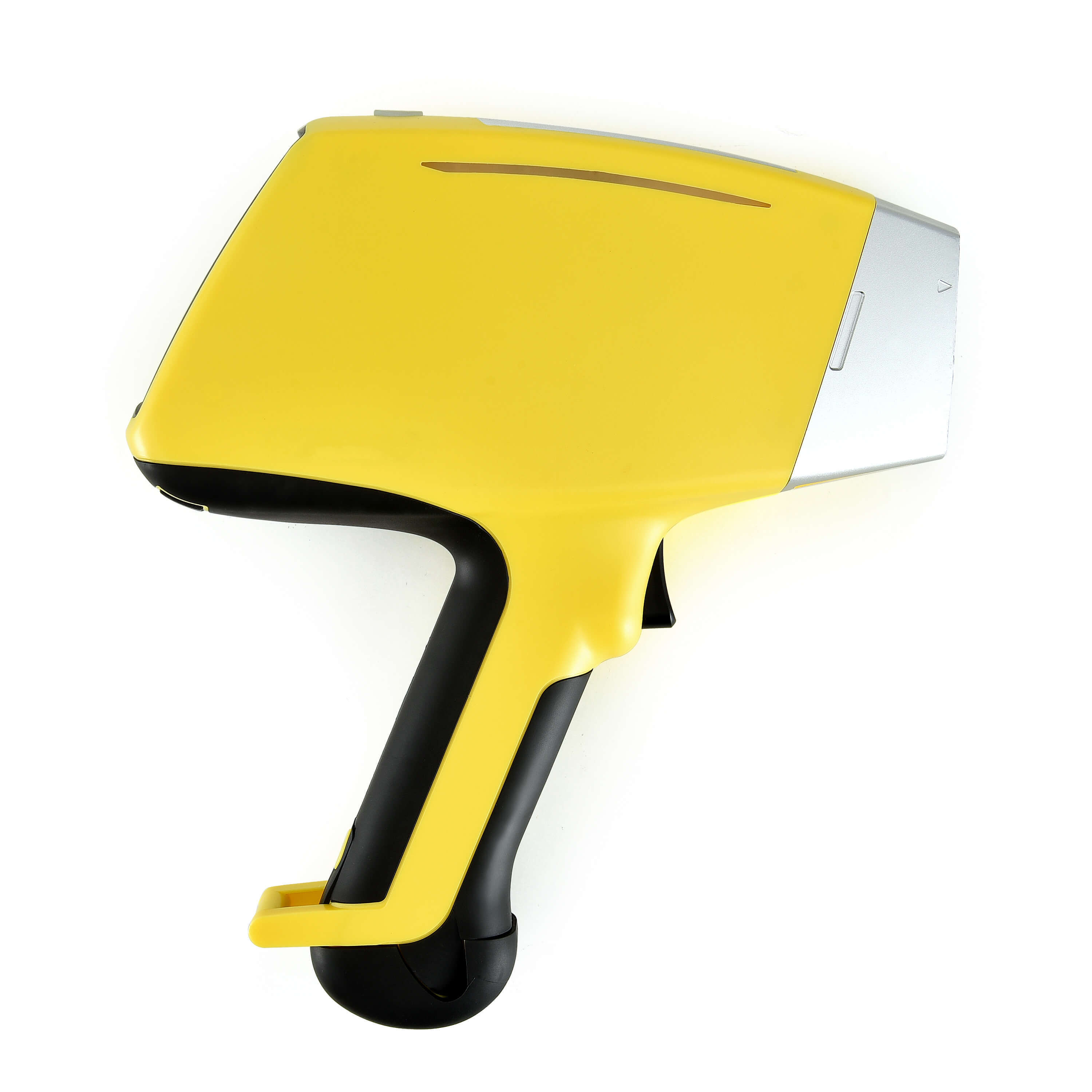

High Precision Handheld XRF Analyzer Portable XRF Mineral Analyzer TrueX900
Background of handheld XRF analyzers
XRF (X-ray fluorescence) is an innovative, non-destructive technology for material analysis. It`s unique and almost universal, an X-ray gun sees sample contents by using an X-ray source to measure the secondary ways (fluorescent) the sample emits. Such an analysis is clear and fast.
Portable XRF Spectrometers can be used in any field that requires analysis of elements or compounds from Na to U. The main business industries include building materials (cement, glass, ceramics), metallurgy (steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, environmental protection, food safety, geological mining, commodity inspection, quality inspection, and human body trace element inspection, etc.
handheld XRF metal tester Working principle
The sample is bombarded with X-rays, and the sample is excited to produce X-ray fluorescence.
X-rays usually knock out the inner electrons of the K and L layers of the element atoms, and the generated holes are filled by the high-energy outer electrons. High-energy electrons replenished to low-energy orbits radiate the excess energy as X-ray fluorescence.
These radiated spectral lines contain the characteristics of various elements. Like a fingerprint, and independent of the chemical valence states of the atoms. The intensity of the radiation is proportional to the concentration of this element in the sample.
XRF (X-ray fluorescence) is an innovative, non-destructive technology for material analysis. It`s unique and almost universal, an X-ray gun sees sample contents by using an X-ray source to measure the secondary ways (fluorescent) the sample emits. Such an analysis is clear and fast.
Portable XRF Spectrometers can be used in any field that requires analysis of elements or compounds from Na to U. The main business industries include building materials (cement, glass, ceramics), metallurgy (steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, environmental protection, food safety, geological mining, commodity inspection, quality inspection, and human body trace element inspection, etc.
handheld XRF metal tester Working principle
The sample is bombarded with X-rays, and the sample is excited to produce X-ray fluorescence.
X-rays usually knock out the inner electrons of the K and L layers of the element atoms, and the generated holes are filled by the high-energy outer electrons. High-energy electrons replenished to low-energy orbits radiate the excess energy as X-ray fluorescence.
These radiated spectral lines contain the characteristics of various elements. Like a fingerprint, and independent of the chemical valence states of the atoms. The intensity of the radiation is proportional to the concentration of this element in the sample.
Parameter
|
Model
|
TrueX G5
|
TrueX G7
|
TrueX 800
|
TrueX 860
|
TrueX 900
|
TrueX 960
|
|
|
|||||||
|
Weight
|
1.6Kg（With battery）
|
|
|
|
|
|
|
|
|||||||
|
Size
|
254 x 79 x 280 mm（L x W x H）
|
|
|
|
|
|
|
|
|||||||
|
Excitation source
|
Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard),
Au(optional), W(optional), Rh(optional). |
|
|
|
|
|
|
|
|||||||
|
Monitor
|
4.3-inch industrial-grade resistive touch screen, multiple language operating system
|
|
|
|
|
|
|
|
|||||||
|
Accuracy
|
Analysis accuracy can reach 0.05% (content is greater than 96%)
|
|
|
|
|
|
|
|
|||||||
|
Detector
|
Si-Pin
|
SDD
|
Si-Pin
|
SDD
|
Si-Pin
|
SDD
|
|
|
|||||||
|
Application
|
Precious metal
|
|
Alloy
|
|
Mineal
|
|
|
|
|||||||
|
Model
|
Measuring Element
|
|
TrueX G5/G7
|
can analyze Fe,Co,Ni,Cu,Zn,Se,Ru,Rh,Pd,Ag,Cd,In,Ir,Pt,Au,Pb
|
|
TrueX 800
|
Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，Se，Zr，Nb，Mo，Rh ，Pd，Ag，Cd，Sn，Sb，Hf，Ta，W，Re，Pb，Bi(25 elements)
|
|
TrueX 860
|
Mg，Al，Si，P，S，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，Se，Zr，Nb，Mo，Rh ，Pd，Ag，Cd，Sn，Sb，Hf，Ta，W，Re，Pb，Bi(30 elements)
|
|
TrueX 900
|
K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，Hf，Ta，W，Au，Hg, Pb，Bi(30 elements)
|
|
TrueX 960
|
Mg，Al，Si，P，S，Cl，K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，Hf，Ta，W，Au，Hg, Pb，Bi(36 elements)
|
Feature
1. Small size and light weight, easy to carry.
2. One-button operation. The element symbols are displayed in Chinese and English, with high precision and fast speed, close to the laboratory-level analysis level.
3. Nondestructive testing. Built-in DoubleBeam™ technology. High security level.
4. Professional management analysis software, which can provide customized analysis reports. Automatic calibration and diagnosis of instrument failures; software upgrades can be achieved through the Internet.
5. USB, WIFI, wireless bluetooth and other methods for data transmission, files can be in EXCEL, PDF and other formats, users can create custom test reports. Cloud data services are available.
6. Built-in all-round environment sensing system. Real-time perception of environmental changes, automatic adjustment of parameters.
7. Intelligent battery with MSBUS bus, real-time monitoring battery, backup battery can directly check the remaining capacity of the battery.
3. Nondestructive testing. Built-in DoubleBeam™ technology. High security level.
4. Professional management analysis software, which can provide customized analysis reports. Automatic calibration and diagnosis of instrument failures; software upgrades can be achieved through the Internet.
5. USB, WIFI, wireless bluetooth and other methods for data transmission, files can be in EXCEL, PDF and other formats, users can create custom test reports. Cloud data services are available.
6. Built-in all-round environment sensing system. Real-time perception of environmental changes, automatic adjustment of parameters.
7. Intelligent battery with MSBUS bus, real-time monitoring battery, backup battery can directly check the remaining capacity of the battery.
Related Products
Please click the photos to see more products!
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Factory Photo
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
